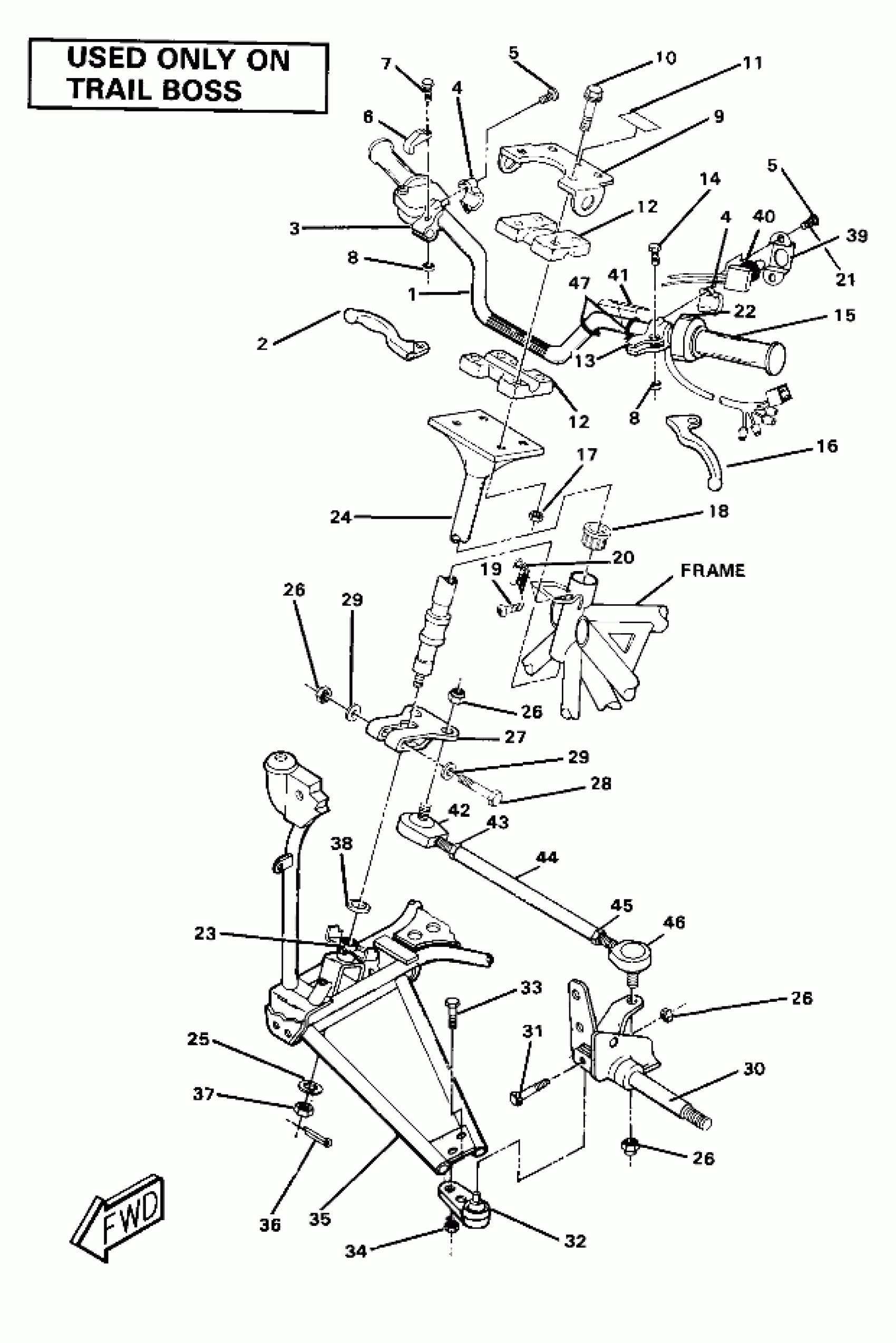

Polaris SCRAMBLER - W867027 Steering Assembly-Trail Boss (4911991199016A) Diagram

#

Description
Price

1

BAR, HANDLE(4/W) Substituted by 5224316-067

5224261

Unavailable

2

LEVER, BRAKE, RH

2050004

Unavailable

3

HOLDER, LEVER

2050002

Unavailable

4

HOLDER,LEVER,LOW.1

2050005

Unavailable

4

HOLDER,LEVER,LOW.1

2050005

Unavailable

5

SCREW&WASHER

2010047

Unavailable

5

SCREW&WASHER

2010047

Unavailable

6

LEVER LOCK

2050037

Unavailable

7

BOLT LEVER

2050021

Unavailable

8

NUT

2050009

Unavailable

8

NUT

2050009

Unavailable

9

BRACKET,H/L MT.

5220484

Unavailable

10

BOLT(10)

7512272

Unavailable

11

DECAL,OIL LEVEL [No Longer Available]

7072244

Unavailable

12

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$4.35

12

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$4.35

13

HOLDER, LEVER

2050020

Unavailable

14

BOLT

2050008

Unavailable

15

GRIP, HANDLE BAR Substituted by 5431030

5410416

$28.32

16

LEVER, BRAKE, LH [No Longer Available]

2050019

Unavailable

17

NUT-LOCK(10)

7542122

$1.19

18

BUSHING,STEERING

5430856

Unavailable

19

SCREW

7510503

Unavailable

20

CLAMP, LOOP

7080325

Unavailable

21

DESC NOT_AVAILABLE

2870681

Unavailable

22

SWITCH,HI-LO/START

4110063

Unavailable

23

FITTING-LUBE.(10) Substituted by 7080561

7080220

$4.76

24

POST, STEERING Substituted by 1843020

1843009

Unavailable

25

WASHER(10)

7555721

$1.19

26

NUT LOCK(10)

7542403

Unavailable

26

NUT LOCK(10)

7542403

Unavailable

26

NUT LOCK(10)

7542403

Unavailable

26

NUT LOCK(10)

7542403

Unavailable

27

FROG,STEERING

5220546

Unavailable

28

BOLT Substituted by 7515491

7515433

$1.59

29

WASHER(10) Substituted by 7555806

7555720

$0.79

29

WASHER(10) Substituted by 7555806

7555720

$0.79

30

SPINDLE, LH Substituted by 1821023-067

1821023

Unavailable

30

SPINDLE, RH Substituted by 1821024-067

1821024

Unavailable

31

BOLT(10) Substituted by 7512404

7515425

$3.97

32

BALL JOINT

7060133

Unavailable

33

BOLT(10) Substituted by 7512492

7515458

$1.19

34

NUT,FLANGE LOCK(10)

7542449

$3.97

35

A-FRAME,LH WELD [No Longer Available]

1580008

Unavailable

35

A-FRAME,RH WELD. [No Longer Available]

1580009

Unavailable

36

PIN, COTTER

7661207

Unavailable

37

NUT(10)

7542712

$9.52

38

BUSHING,MACH.

7556306

Unavailable

39

BRACKET

5222103

Unavailable

40

SWITCH,OVERRIDE Substituted by 4110072

4110069

Unavailable

41

DECAL,O'RIDE SWITCH [No Longer Available]

7072345

Unavailable

42

ROD END, RH Substituted by 2200271

7060132

Unavailable

43

NUT HEX(10)

7542401

$2.38

44

ROD, TIE

5010209

$2.89

45

NUT

7542424

$0.79

46

ROD END, LH Substituted by 2200271

7060131

Unavailable

47

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
