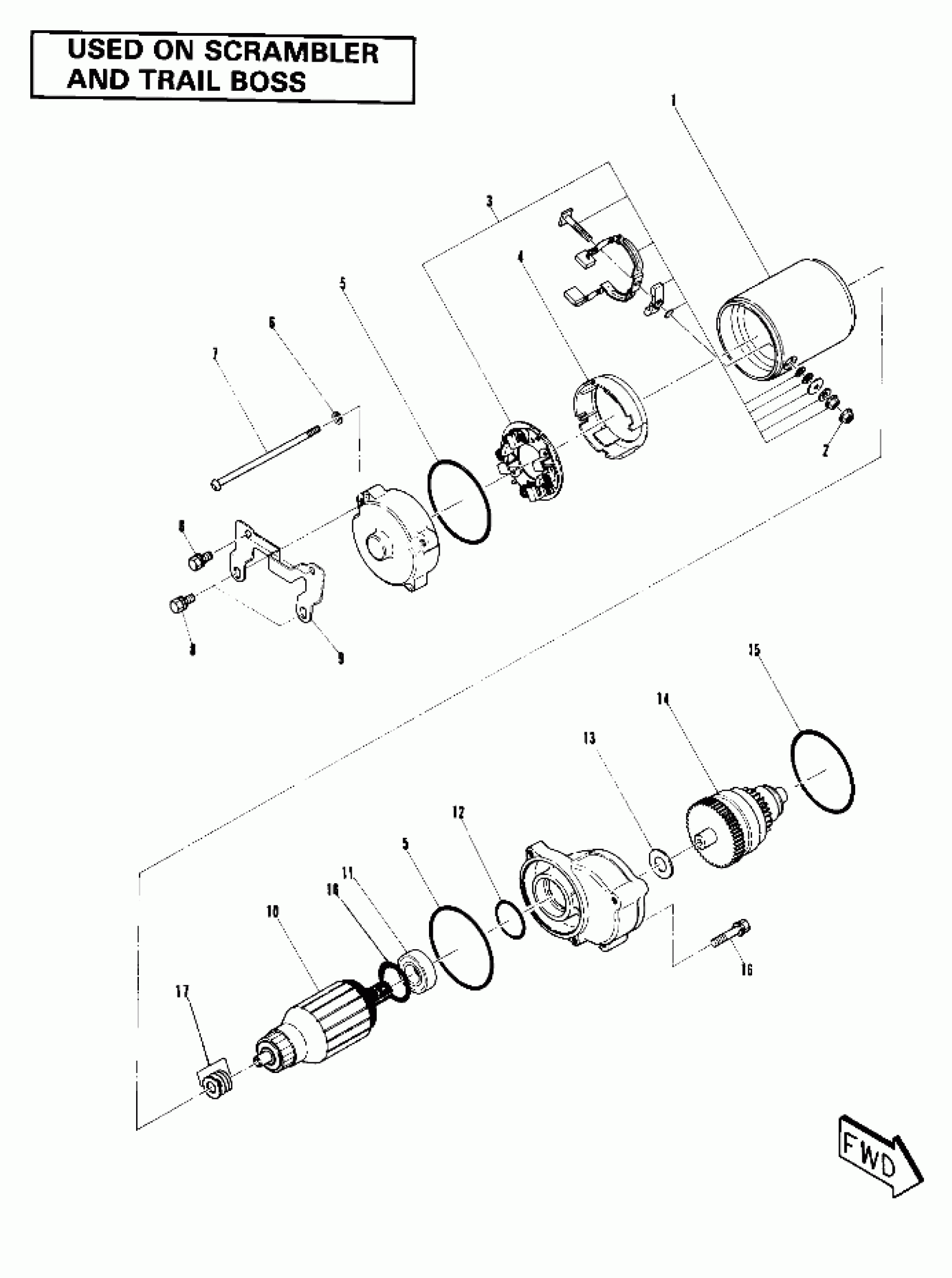

Polaris SCRAMBLER - W867027 Starting Motor Assembly (4911991199050A) Diagram

#

Description
Price

1

STARTER MOTOR ASM. Substituted by 3084403 (Incl. 3-7, 10-12, 17,18)

3083760

Unavailable

2

NUT, FLANGE(10)

3083649

$3.99

3

BRUSH ASM.

3083728

Unavailable

4

HOLDER,BRUSH

3083740

Unavailable

5

RING, RUBBER

3083738

$1.83

5

RING, RUBBER

3083738

$1.83

6

WASHER SPRING(10)

3083133

Unavailable

7

BOLT,THROUGH

3083739

Unavailable

8

BOLT,(10)

3081645

Unavailable

8

BOLT,(10)

3081645

Unavailable

9

Bracket

3083650

Unavailable

10

ARMATURE ASM. (Incl. 11, 18)

3083776

$191.99

11

BALL BEARING

3083777

$31.99

12

O RING

3083741

$9.37

13

WASHER, GEARSHAFT Substituted by 7555908 (Gear Shaft)

3083737

Unavailable

14

GEAR SHAFT ASM. Substituted by 3085394 (Incl.13)

3083647

Unavailable

15

O RING

3083648

$1.99

16

BOLT & WASHER

3081663

$1.49

17

Washer Set

3083754

$2.39

18

O RING Substituted by 3083934

3083755

Unavailable
