Rear Wheel Drive Assembly (4911991199028A)

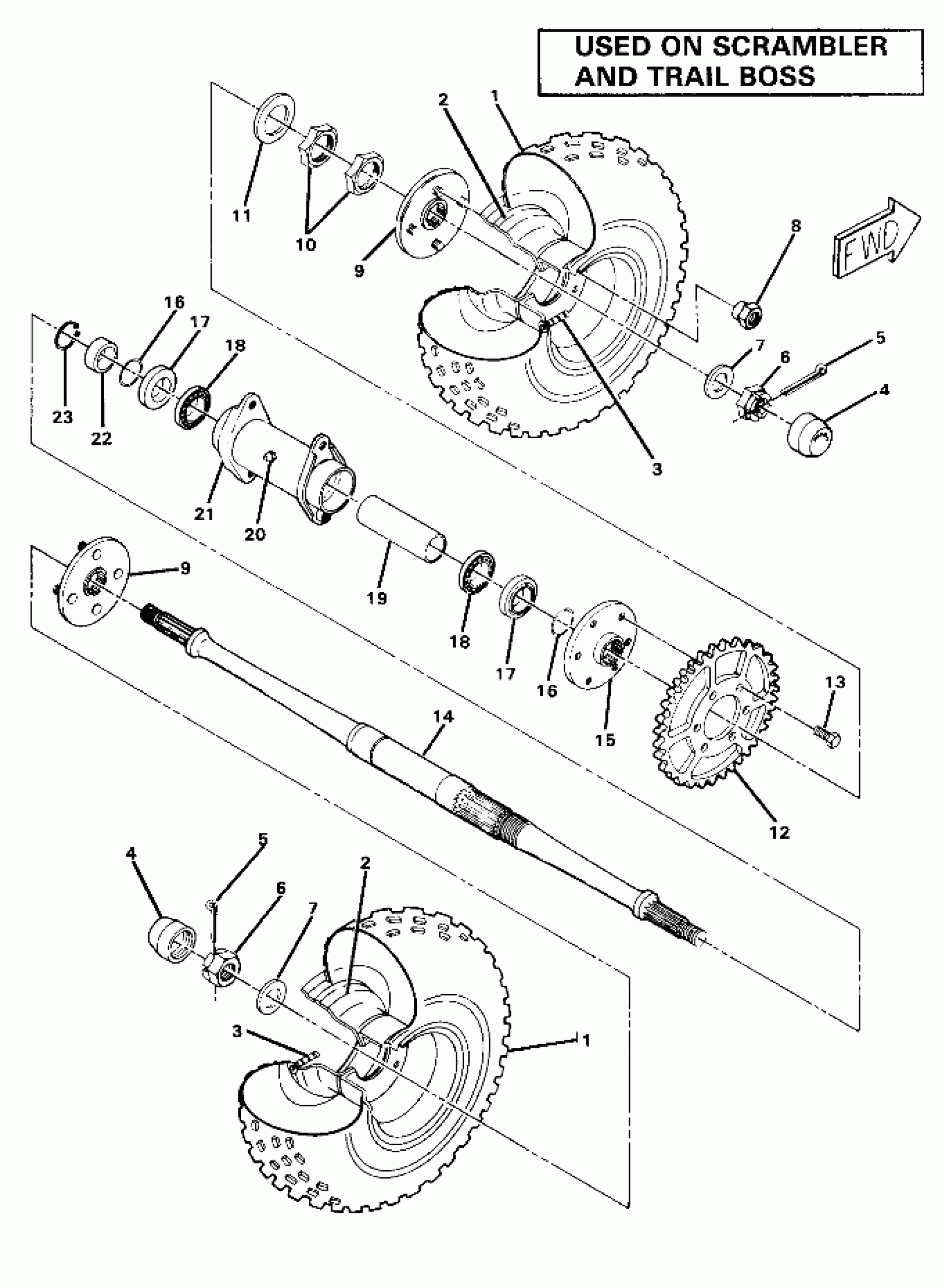

Polaris SCRAMBLER - W867027 Rear Wheel Drive Assembly (4911991199028A) Diagram
#
Description
Price
1
TIRE,R(22X11-10) [No Longer Available]
5410406
Unavailable
1
TIRE,R(22X11-10) [No Longer Available]
5410406
Unavailable
2
RIM, REAR Substituted by 1520114
1520103
Unavailable
2
RIM, REAR Substituted by 1520114
1520103
Unavailable
3
VALVE-RIM
1525017
$5.59
3
VALVE-RIM
1525017
$5.59
4
COVER,DUST,HUB Substituted by 5411164
5410404
Unavailable
4
COVER,DUST,HUB Substituted by 5411164
5410404
Unavailable
5
PIN, COTTER(10)
7661404
$4.79
5
PIN, COTTER(10)
7661404
$4.79
6
NUT, CASTLE(10)
7543005
Unavailable
6
NUT, CASTLE(10)
7543005
Unavailable
7
WASHER(10)
7555745
$7.19
7
WASHER(10)
7555745
$7.19
8
NUT, WHEEL(10)
7542714
$1.59
9
HUB, REAR Substituted by 1520102-067
1520102
Unavailable
9
HUB, REAR Substituted by 1520102-067
1520102
Unavailable
10
Nut, Jam
5020468
$39.59
11
WASHER(10)
7555764
Unavailable
12
SPROCKET, 42T Substituted by 3222070
3223009
Unavailable
13
BOLT(10) Substituted by 7515494
7515482
Unavailable
14
AXLE, REAR
5020469
Unavailable
15
HUB,SPROCKET WELD Substituted by 1520170
1011559
Unavailable
16
O RING, 1 5/16(10)
5410415
Unavailable
16
O RING, 1 5/16(10)
5410415
Unavailable
17
SEAL, REAR AXLE
3610013
$19.99
17
SEAL, REAR AXLE
3610013
$19.99
18
Bearing, Ball
3515501
$27.99
18
Bearing, Ball
3515501
$27.99
19
TUBE,BEARING SPACER
5010204
Unavailable
20
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
21
HOUSING,AXLE, WELD Substituted by 1011657-067
1011556
Unavailable
22
SPACER,BEARING
5010206
$35.99
23
RING, SNAP(10)
7710405
$4.79
