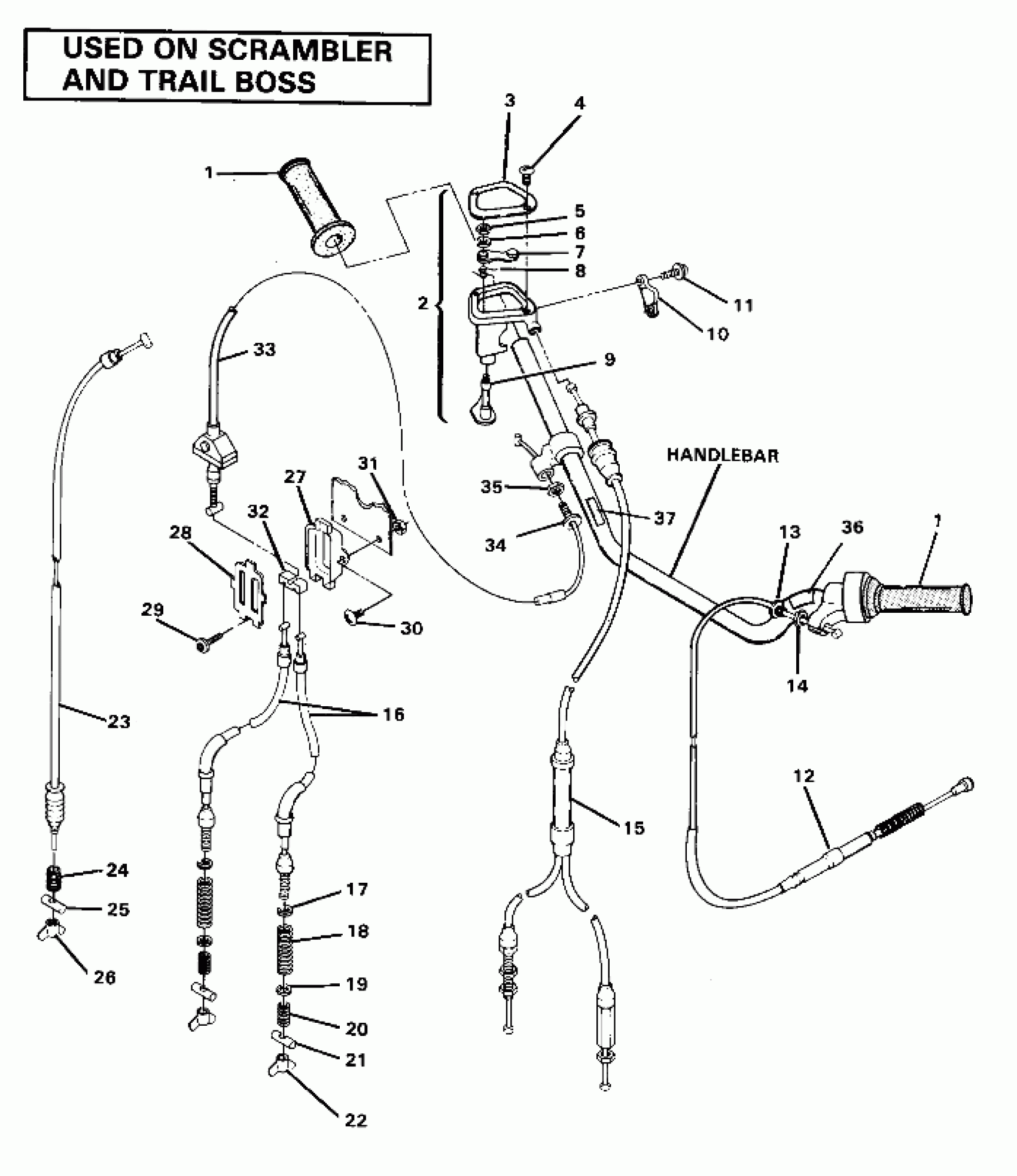

Polaris SCRAMBLER - W867027 Hand Control Cable Assembly (4911991199018A) Diagram

#

Description
Price

1

GRIP, HANDLE BAR Substituted by 5431030

5410416

$24.27

1

GRIP, HANDLE BAR Substituted by 5431030

5410416

$24.27

2

LEVER,THROTTLE ASM. [No Longer Available]

2010045

Unavailable

3

COVER,THROTTLE CONTROL (Incl. 3-9)

5430804

Unavailable

4

SCREW

2010054

Unavailable

5

NUT

2010053

Unavailable

6

WASHER [No Longer Available]

2010052

Unavailable

7

ARM

2010051

Unavailable

8

SPRING [No Longer Available]

2010050

Unavailable

9

LEVER

2010049

Unavailable

10

HOLDER,LEVER,LOW.1

2050005

Unavailable

11

SCREW&WASHER

2010047

Unavailable

12

CABLE, REAR BRAKE

7080305

Unavailable

13

BOLT

2050023

Unavailable

14

NUT

2050024

Unavailable

15

CABLE, THROTTLE

7080298

Unavailable

16

CABLE,BRAKE,LOWER

2050027

$89.03

17

CLIP, CIRCLE

2050035

$0.65

18

SPRING, COMPRESSION

2050033

Unavailable

19

WASHER

2050034

Unavailable

20

SPRING,COMPRESSION

2050015

Unavailable

21

PIN

2050016

Unavailable

22

NUT, WING

2050014

Unavailable

23

CABLE,BRAKE,FR.,3 WHL. [No Longer Available]

2050013

Unavailable

27

HOUSING, BRAKE LINE [No Longer Available]

2050029

Unavailable

28

PLATE

2050031

Unavailable

29

SCREW W/ WASHER

2050032

Unavailable

30

SCREW(10)

7511989

Unavailable

31

NUT(10)

7541925

$1.49

32

CABLE, JOINT

2050030

Unavailable

33

CABLE,BRAKE,UPPER

2050028

Unavailable

36

DECAL, WARNING [No Longer Available]

7072239

Unavailable

37

DECAL, WARNING [No Longer Available]

7072240

Unavailable
