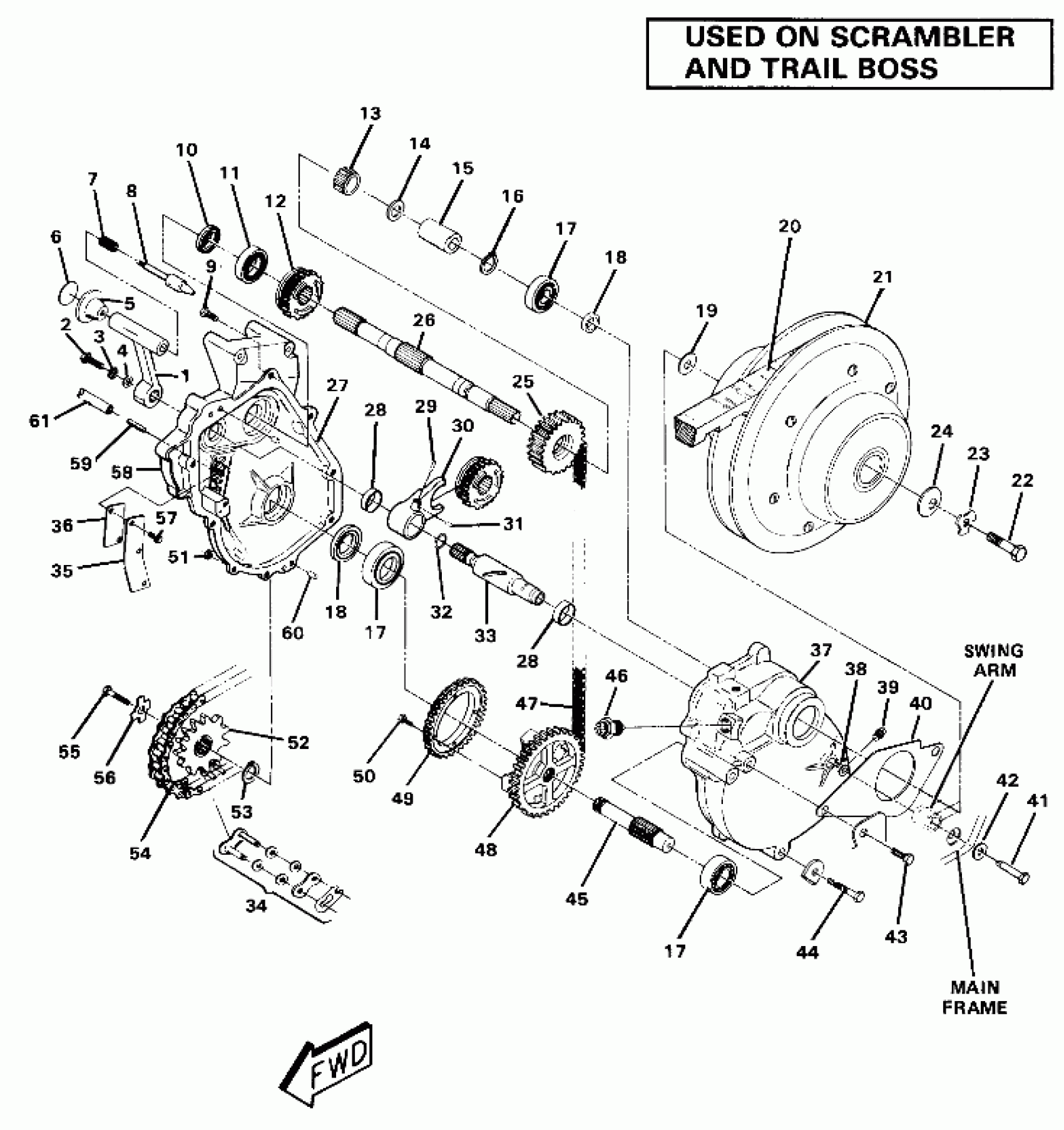

Polaris SCRAMBLER - W867027 Gearcase Assembly (4911991199038A) Diagram
#
1
LEVER, SHIFT [No Longer Available]
5430847
Unavailable
2
BOLT(10) Substituted by 7512240
7512111
Unavailable
3
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
4
WASHER(10)
7558221
$2.39
5
KNOB
7030006
Unavailable
6
DECAL [No Longer Available]
7072234
Unavailable
7
SPRING,SHIFT LEVER
7041170
$36.03
8
SHAFT,SHIFT LEVER Substituted by 5020470
5020470
$24.33
9
SCREW(10)
7512242
$2.39
10
SEAL, OIL
3610014
Unavailable
11
BEARING, BALL
3514001
$19.99
12
PINION, REVERSE Substituted by 5130621
5130621
$152.37
13
BEARING, NEEDLE
3554502
Unavailable
14
WASHER(10)
7555752
Unavailable
15
SPACER, INPUT SHAFT
5010210
$17.30
16
RING, RET.(10)
7710411
Unavailable
17
BEARING,205,W/O SEAL
3514304
$15.99
17
BEARING,205,W/O SEAL
3514304
$15.99
17
BEARING,205,W/O SEAL
3514304
$15.99
18
SEAL, OIL
3610015
Unavailable
18
SEAL, OIL
3610015
Unavailable
19
SPACER, DRIVEN
5211041
Unavailable
20
BELT-DRIVE(5) Substituted by 3211077
3211048
Unavailable
21
CLUTCH, DRIVEN Substituted by 1322136
1322112
Unavailable
22
SCR-HH-5/16-18X4 GR5 ZY3
7515327
$5.59
23
WASHER,SHAKEPROOF,5/16(10)
7577901
Unavailable
24
WASHER, DOMED(10)
5220646
$2.39
25
GEAR,FORWARD,SMALL
5130620
$202.17
26
SHAFT, INPUT Substituted by 5020467
5020467
Unavailable
27
GASKET ELIMIN.50CCTUBE Substituted by 2871557
2870587
Unavailable
28
BUSHING, SLEEVE
3574209
Unavailable
28
BUSHING, SLEEVE
3574209
Unavailable
29
PIN, DOWEL(10)
7661819
Unavailable
30
FORK, SHIFT Substituted by 5130662
5130594
Unavailable
31
PIN, SPRING(10)
7661206
Unavailable
32
O RING(10)
5410440
$4.84
33
SHAFT, SHIFT
5130616
Unavailable
34
CONNECTOR LINK
3225024
$19.99
35
PLATE, VENT
5211036
Unavailable
36
GASKET, VENT
5810305
Unavailable
37
GEARCASE, LH
5130610
$276.99
38
BUSHING,SWING ARM MT.
5630267
Unavailable
39
PLUG,PIPE,MAGNETIC
7051512
Unavailable
40
RETAINER,BULKHEAD,LH
5220636
Unavailable
41
BOLT, SPECIAL
7512664
Unavailable
42
WASHER(10)
7555749
$1.49
43
BOLT(10) Substituted by 7512492
7515458
Unavailable
44
BOLT(10)
7515472
$2.39
45
SHAFT,OUTPUT
5020461
Unavailable
46
SW,REV./NEUT.INDIC.
4110062
$32.37
47
CHAIN, SILENT
3224038
Unavailable
48
CAST,FORWARD GEAR
5130619
Unavailable
49
RING GEAR, REVERSE Substituted by 5130644
5130590
Unavailable
50
BOLT(10)
7512247
$2.39
51
NUT LOCK(10)
7542403
$3.99
52
SPKT, 12T (Opt.)
3221044
Unavailable
52
SPKT, 11T (Opt.)
3221043
Unavailable
52
SPKT,13T,SPLINED
3221041
$43.99
53
RING, RET.
7710410
Unavailable
54
CHAIN, FINAL DRIVE
3224034
Unavailable
55
BOLT(10)
7512391
Unavailable
56
WASHER,SHAKEPROOF,5/16
7577902
Unavailable
57
SCREW(10)
7512208
$3.99
58
GEARCASE, RH
5130611
Unavailable
59
PIN, SPIRAL(10)
7661505
$1.10
60
PIN, DOWEL(10)
7661904
Unavailable
61
KIT-TANK VENT
2200190
Unavailable
61
OIL,GAL,CHAINCASE&TRANNY(6)3.8L [No Longer Available]
2870464
Unavailable
