Fuel Tank Assembly-Trail Boss (4911991199012A)

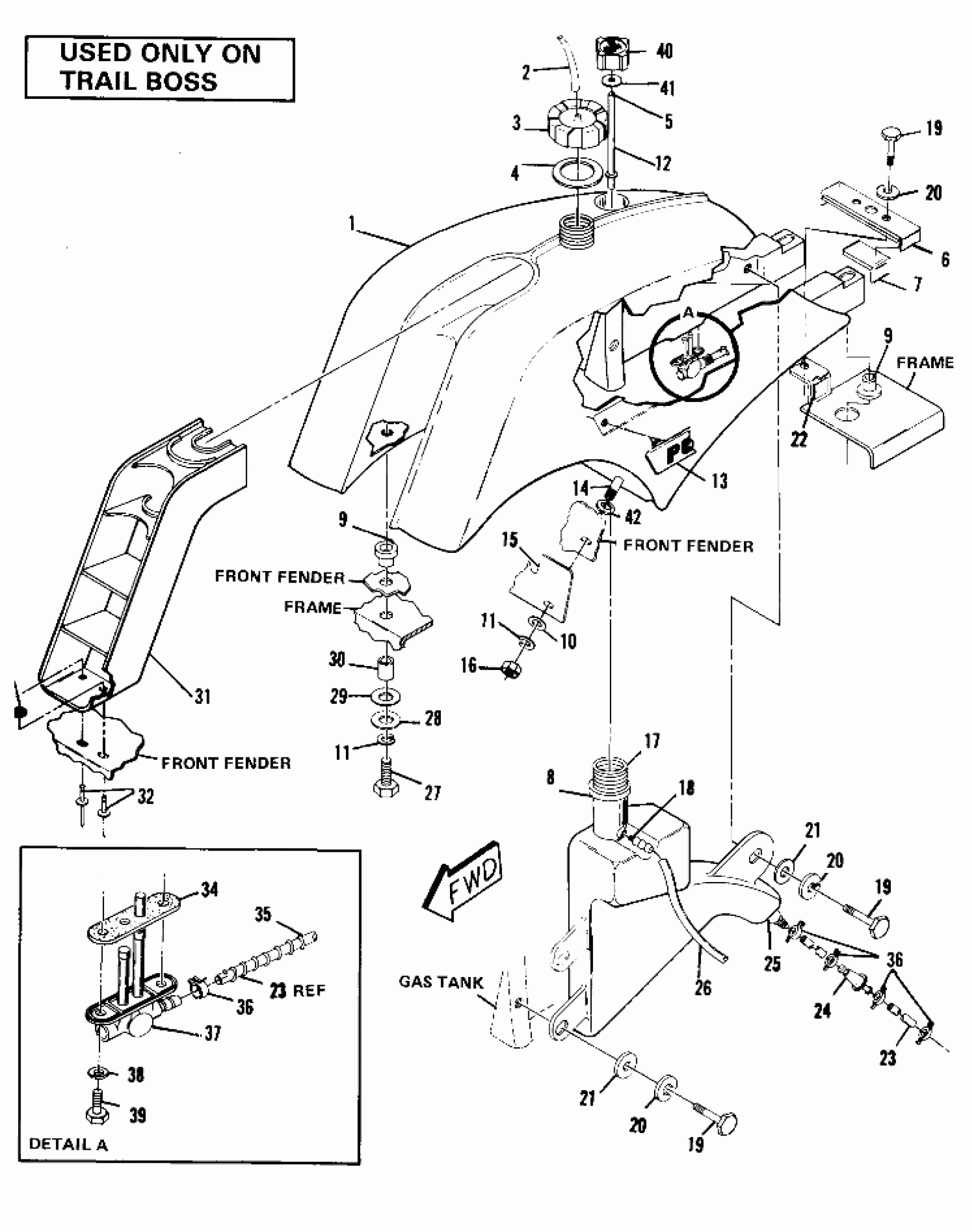

Polaris SCRAMBLER - W867027 Fuel Tank Assembly-Trail Boss (4911991199012A) Diagram
#
1
TANK,GAS,BLUE
5430839
Unavailable
2
LINE, VENT Substituted by 5521171
5521154
Unavailable
3
CAP, GAS TANK [No Longer Available]
5430799
Unavailable
4
GASKET, GAS CAP
5810288
Unavailable
5
DESC NOT_AVAILABLE
8570027
Unavailable
6
PLATE,REAR TANK MT.
5220674
Unavailable
7
PAD,FUELTANK BRKT. Substituted by 8360026
5810317
Unavailable
8
PAD,SPOUT,OIL [No Longer Available]
5810311
Unavailable
9
GROMMET,FUEL TANK,REAR
5410428
Unavailable
9
GROMMET,FUEL TANK,REAR
5410428
Unavailable
10
WASHER WROUGHT(10)
7558403
$4.79
11
LOCK WASHER(10)
7552901
$1.49
11
LOCK WASHER(10)
7552901
$1.49
12
DIPSTICK, OIL
5430801
Unavailable
13
LOGO,'POLARIS',4/WHL. [No Longer Available]
2660002
Unavailable
14
GROMMET,FUEL TANK,FRONT
5410449
Unavailable
15
FLAP,SPLASHGUARD
5850070
Unavailable
16
SCREW(10)
7512310
$2.39
17
TANK,OIL, 3&4 WHL.
5430762
Unavailable
18
VENT-TANK
5430579
Unavailable
19
SCREW(10)
7512113
$3.99
19
SCREW(10)
7512113
$3.99
19
SCREW(10)
7512113
$3.99
20
LOCK WASHER(10)
7552801
$1.59
20
LOCK WASHER(10)
7552801
$1.59
20
LOCK WASHER(10)
7552801
$1.59
21
WASHER,WROUGHT(10)
7558302
$1.59
21
WASHER,WROUGHT(10)
7558302
$1.59
22
PAD, MOUNT [No Longer Available]
5810318
Unavailable
23
BULK-3/16IDX1FT.LINE Substituted by 8450037-600
8450037
Unavailable
23
BULK-3/16IDX1FT.LINE Substituted by 8450037-600
8450037
Unavailable
24
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
25
FITTING - OUTLET(10)
7052023
$24.99
26
KIT-TANK VENT
2200190
Unavailable
27
SCREW(10) Substituted by 5020499
7512317
Unavailable
28
WASHER(10)
7555716
$1.59
29
WASHER, RUBBER
5410430
Unavailable
30
SPACER,MOUNTING
5330161
Unavailable
31
LOUVER,AIR INTAKE
5430765
Unavailable
32
RIVET(50)
7621457
$1.49
34
GASKET, FUEL VALVE
5810308
Unavailable
35
SPRING
7042030
Unavailable
36
CLAMP-HOSE(10)
7080134
Unavailable
36
CLAMP-HOSE(10)
7080134
Unavailable
37
VALVE,FUEL TANK
7052041
Unavailable
39
BOLT(10)
7512261
$4.99
40
CAP,OIL TANK
5430779
$14.56
41
GASKET-OIL CAP
5810141
$2.39
42
SOCKET-120V/240V
3410450
Unavailable
