Description

Price

1

LEVER, CAMSHAFT [No Longer Available]

1525010

Unavailable

1

LEVER, CAMSHAFT

1525016

Unavailable

2

BOLT [No Longer Available]

1525020

Unavailable

3

NUT [No Longer Available]

1525021

Unavailable

4

PLATE, INDICATOR

1525011

Unavailable

5

PLATE,RH BRAKESHOE [No Longer Available]

1525006

Unavailable

5

PLATE,LH BRAKESHOE

1525014

Unavailable

6

SEAL, OIL

1525013

Unavailable

7

O RING

1525012

Unavailable

8

CAMSHAFT

1525009

Unavailable

9

SPRING,TENSION

1525008

$2.22

10

BRAKE SHOE COMPL. Substituted by 2200245

1525007

Unavailable

11

VALVE-RIM

1525017

$5.59

12

BEARING

1525003

Unavailable

13

SEAL, OIL

1525004

$11.90

14

COLLAR

1525022

Unavailable

15

BEARING

1525005

Unavailable

16

WASHER(10)

7555721

$1.49

17

NUT(10)

7542712

$9.59

18

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

19

PIN COTTER(10)

7661203

$1.49

20

NUT

1525024

Unavailable

21

WASHER, SPRING

1525026

Unavailable

22

WASHER, PLAIN

1525025

Unavailable

23

RIM, FRONT Substituted by 1520118

1520110

Unavailable

24

TIRE,FR,(22X8-10)

5410408

Unavailable

25

HUB, FRONT [No Longer Available]

1525001

Unavailable

26

SPACER, BEARING

1525002

Unavailable

27

STUD,WHEEL,5/16-18(10)

7515330

Unavailable

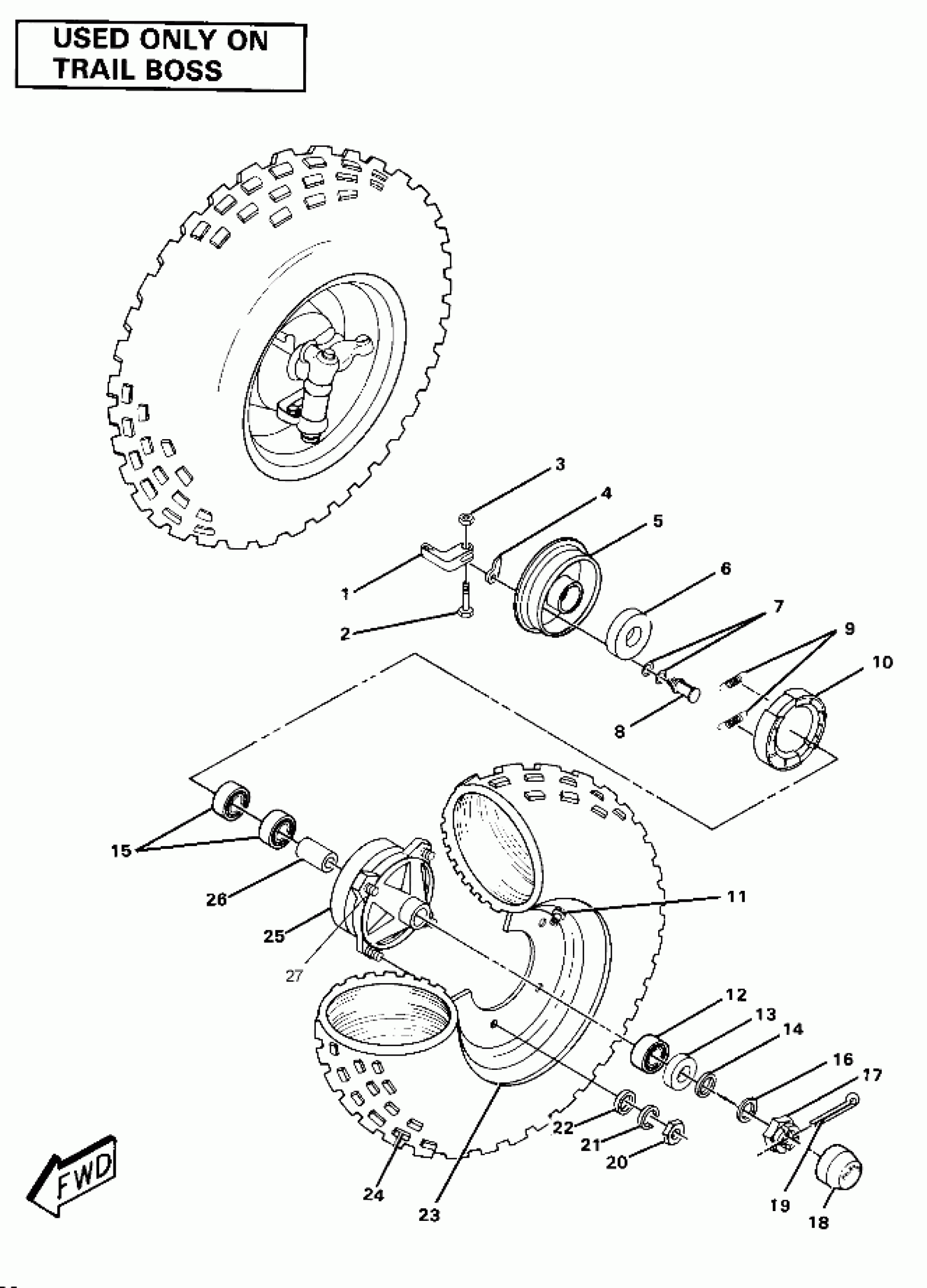

Polaris SCRAMBLER - W867027 Front Wheel Assembly-Trail Boss (4911991199026A) Diagram

LEVER, CAMSHAFT [No Longer Available]

LEVER, CAMSHAFT

BOLT [No Longer Available]

NUT [No Longer Available]

PLATE, INDICATOR

PLATE,RH BRAKESHOE [No Longer Available]

PLATE,LH BRAKESHOE

SEAL, OIL

O RING

CAMSHAFT

SPRING,TENSION

BRAKE SHOE COMPL. Substituted by 2200245

VALVE-RIM

BEARING

SEAL, OIL

COLLAR

BEARING

WASHER(10)

NUT(10)

COVER,DUST,HUB Substituted by 5411164

PIN COTTER(10)

NUT

WASHER, SPRING

WASHER, PLAIN

RIM, FRONT Substituted by 1520118

TIRE,FR,(22X8-10)

HUB, FRONT [No Longer Available]

SPACER, BEARING

STUD,WHEEL,5/16-18(10)
