Front Fork Assembly-Scrambler (4911991199020A)

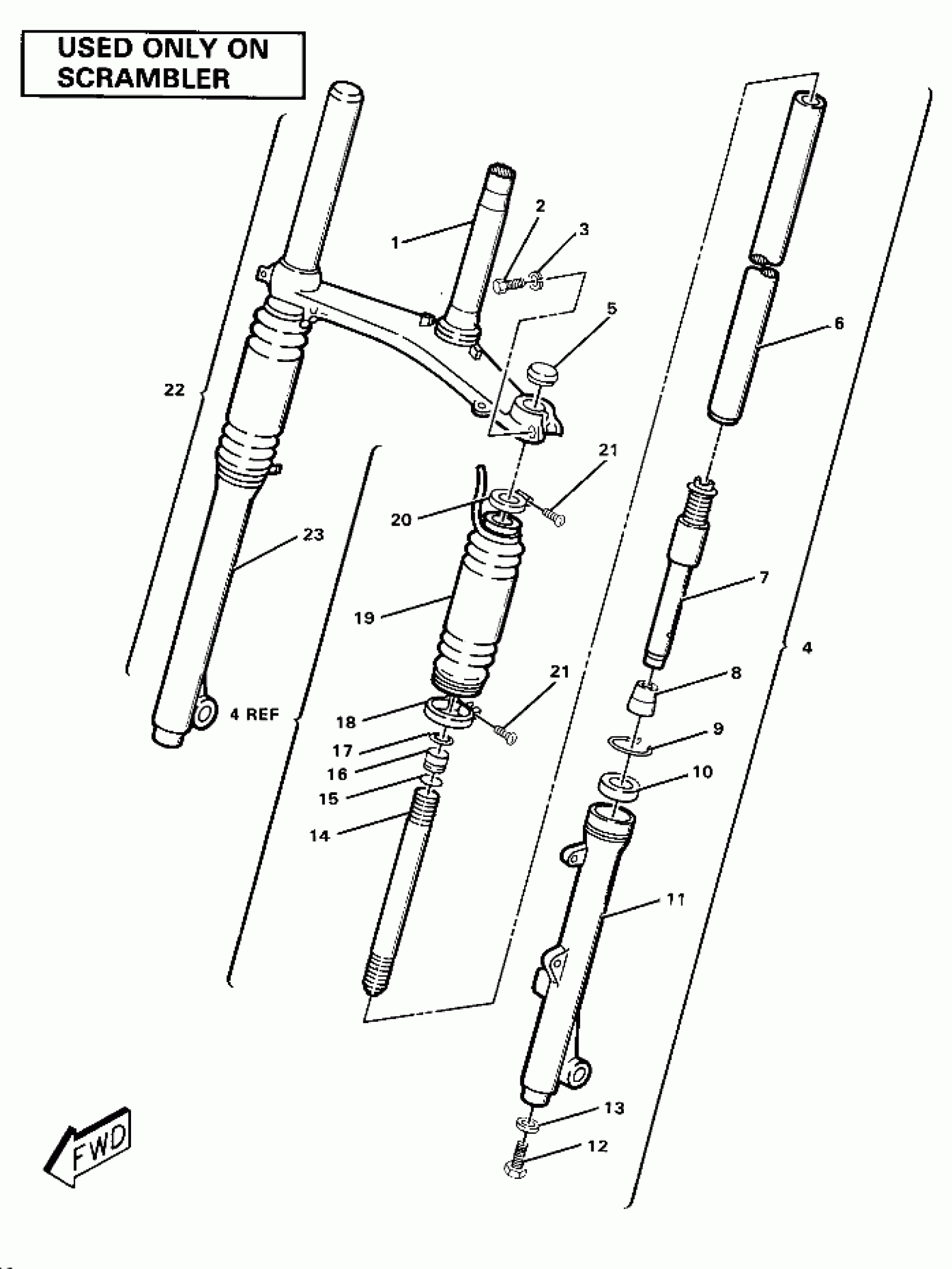

Polaris SCRAMBLER - W867027 Front Fork Assembly-Scrambler (4911991199020A) Diagram
#
Description
Price
1
BRACKET,UNDER,COMP. [No Longer Available]
1844024
Unavailable
2
BOLT [No Longer Available]
1844025
Unavailable
3
WASHER,SPRING [No Longer Available]
1844026
Unavailable
4
FORK ASM,FRONT LH [No Longer Available] (Incl. 5-21)
1843001
Unavailable
4
FORK ASM,FRONT LH [No Longer Available] (Incl. 5-21)
1843001
Unavailable
5
PLUG, INNER TUBE [No Longer Available]
1844037
Unavailable
6
TUBE, INNER, 1 [No Longer Available]
1844027
Unavailable
7
CYLINDER [No Longer Available]
1844028
Unavailable
8
SPINDLE, TAPER [No Longer Available]
1844038
Unavailable
9
CLIP, CIRCLE [No Longer Available]
1844032
Unavailable
10
SEAL, OIL [No Longer Available]
1844031
Unavailable
11
TUBE,OUTER, LH [No Longer Available]
1844029
Unavailable
12
BOLT [No Longer Available]
1844040
Unavailable
13
WASHER, PLATE [No Longer Available]
1844039
Unavailable
14
SPRING,FRONT FORK [No Longer Available]
1844033
Unavailable
15
O RING [No Longer Available]
1844035
Unavailable
16
BOLT, CAP [No Longer Available]
1844034
Unavailable
17
CLIP, CIRCLE [No Longer Available]
1844036
Unavailable
18
BAND [No Longer Available]
1844042
Unavailable
19
BOOT [No Longer Available]
1844041
Unavailable
20
BAND 2 [No Longer Available]
1844043
Unavailable
21
SCREW, PAN HEAD [No Longer Available]
1844044
Unavailable
21
SCREW, PAN HEAD [No Longer Available]
1844044
Unavailable
22
FORK ASM, FRONT RH [No Longer Available] 38
1843002
Unavailable
23
TUBE,OUTER, RH [No Longer Available]
1844030
Unavailable
