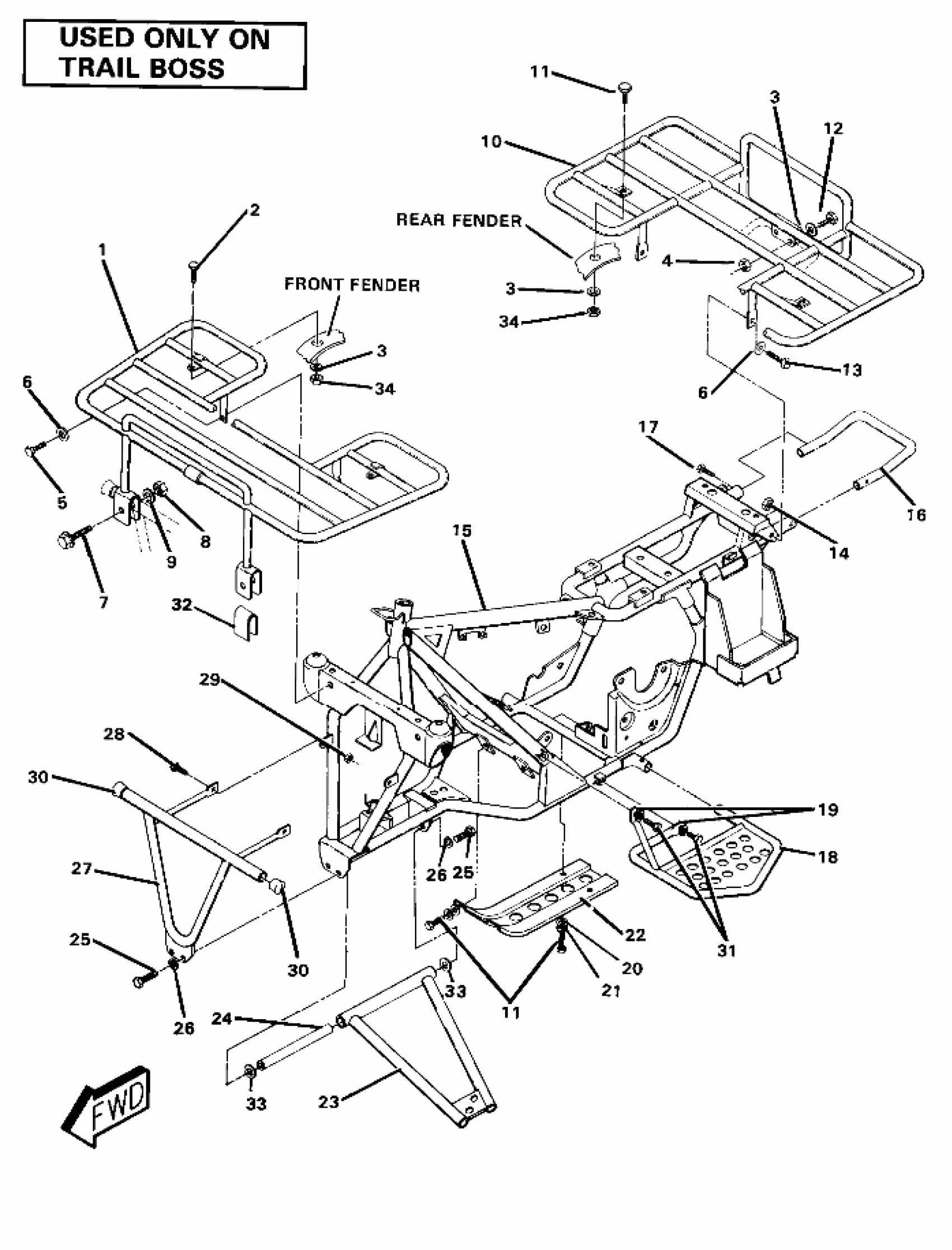

Polaris SCRAMBLER - W867027 Frame Assembly with Racks-Trail Boss (4911991199004A) Diagram

#

Description
Price

1

RACK,FRONT Substituted by 2870719

2670088

Unavailable

2

BOLT(10)

7512269

Unavailable

3

WASHER,WROUGHT(10)

7558302

$1.59

3

WASHER,WROUGHT(10)

7558302

$1.59

3

WASHER,WROUGHT(10)

7558302

$1.59

4

NUT(10)

7542124

Unavailable

5

SCREW(10)

7512310

$2.39

6

WASHER WROUGHT(10)

7558403

$4.79

6

WASHER WROUGHT(10)

7558403

$4.79

7

BOLT(10)

7515319

$4.79

8

NUT, NYLOK(10)

7542327

$4.79

10

RACK, REAR, WELD

2670089

Unavailable

12

BOLT

7512270

Unavailable

15

FRAME,(4WHL),WELD. [No Longer Available]

1011603

Unavailable

16

BUMPER, REAR

5224262

Unavailable

17

SCREW(10)

7512252

Unavailable

18

PAD, FOOT, LH

1040109

Unavailable

18

PAD, FOOT, RH

1040110

Unavailable

19

LOCK WASHER(10)

7552901

$1.49

21

LOCK WASHER(10)

7552801

$1.59

22

GUARD, ROCK

5220615

Unavailable

23

A-FRAME,LH WELD [No Longer Available]

1580008

Unavailable

23

A-FRAME,RH WELD. [No Longer Available]

1580009

Unavailable

24

BUSHING, A FRAME

5332801

$21.43

25

BOLT(10) Substituted by 7512492

7515458

Unavailable

25

BOLT(10) Substituted by 7512492

7515458

Unavailable

26

WASHER(10)

7552603

$1.49

26

WASHER(10)

7552603

$1.49

27

BUMPER Substituted by 2670086-067

2670086

Unavailable

28

BOLT(10)

7515481

$2.63

29

NUT-LOCK(10)

7542439

$1.49

30

CAP, BUMPER, 4 WHL.(10) Substituted by 5410794

5430823

Unavailable

30

CAP, BUMPER, 4 WHL.(10) Substituted by 5410794

5430823

Unavailable

31

BOLT(10)

7512315

$4.79

32

PAD [No Longer Available]

5850063

Unavailable

33

SHAFT, A ARM

5020466

Unavailable

33

SHAFT, A ARM

5020466

Unavailable

34

NUT-LOCK(10)

7542122

$1.49

34

NUT-LOCK(10)

7542122

$1.49
