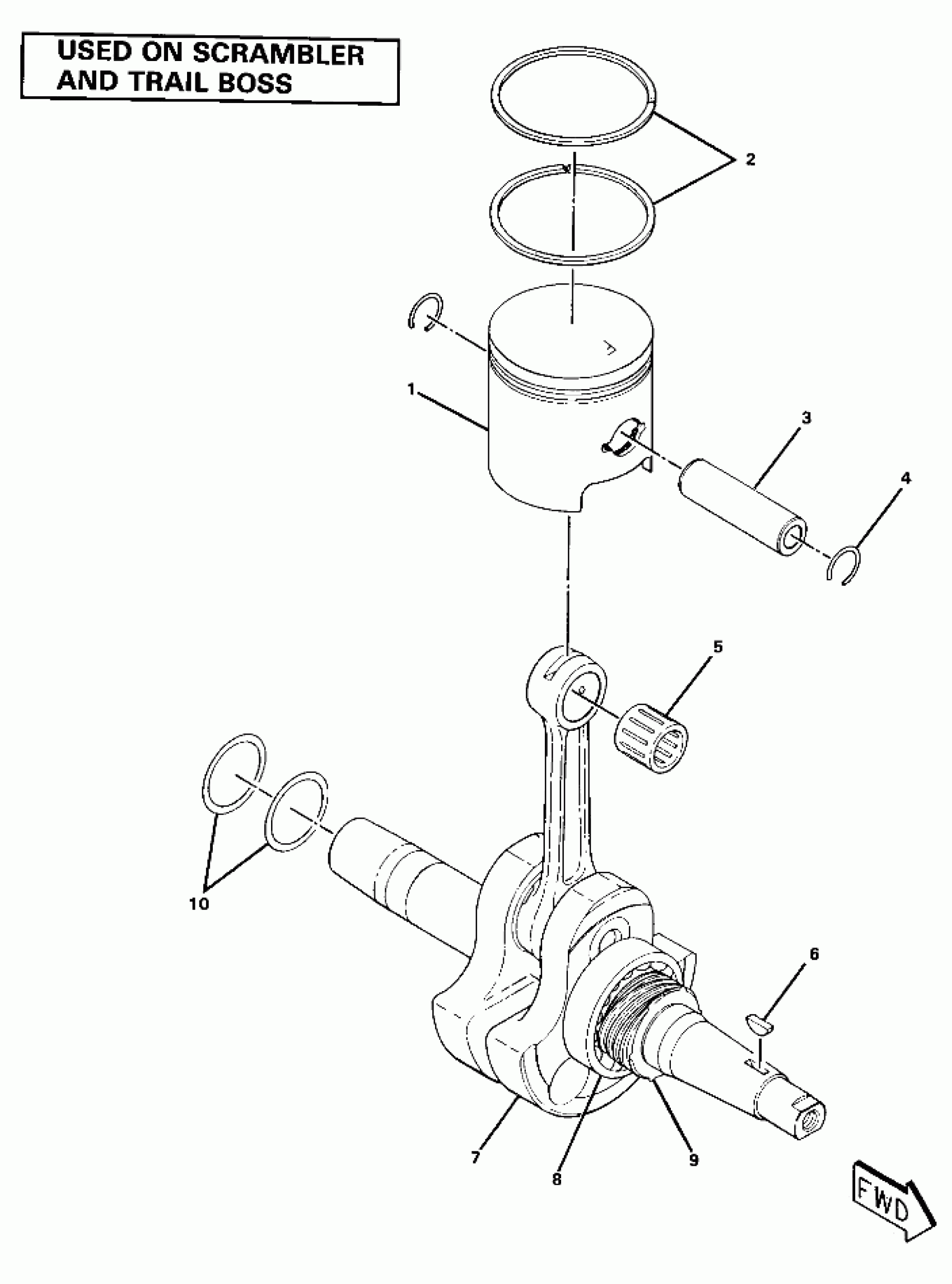

Polaris SCRAMBLER - W867027 Crankshaft and Piston Assembly (4911991199044A) Diagram

#

Description

Price

1

PISTON,.020 O/S

3083944

Unavailable

1

PISTON Substituted by 3083771

3083627

Unavailable

1

PISTON, .010 Substituted by 3083943

3083677

Unavailable

2

RING, PISTON

3083546

Unavailable

2

RING,.010 O/S

3083678

Unavailable

2

RING, .020 Substituted by 3083717

3083680

$28.56

3

PIN, PISTON

3083512

$16.47

4

CLIP, PISTON PIN(10) Substituted by 3083839

3083628

Unavailable

5

BEARING, SMALL END

3083626

Unavailable

6

KEY WOODRUFF

3081543

$12.94

7

CRANKSHAFT Substituted by 3083799 (Incl. 8 & 9)

3083625

Unavailable

8

BEARING,BALL Substituted by 3083805

3080004

Unavailable

9

GEAR,CRANKSHAFT

3083745

Unavailable

10

SPACER #1

3083629

Unavailable

10

SPACER #3

3083630

Unavailable
