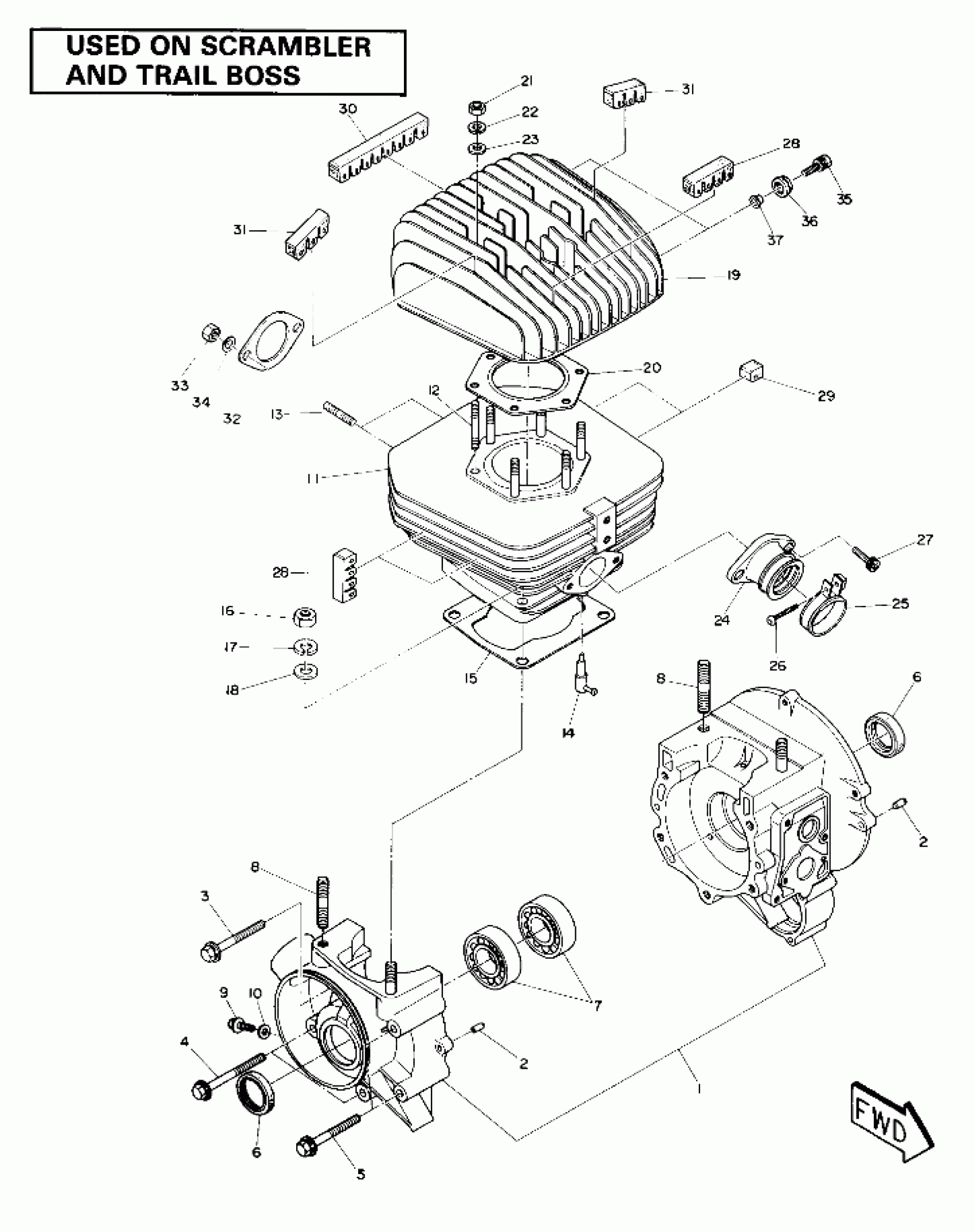

Polaris SCRAMBLER - W867027 Crankcase and Cylinder Assembly (4911991199042A) Diagram

CRANKCASE (Incl. 2-10)

3083614

Unavailable

PIN, DOWEL Substituted by 3086838

3080103

$7.14

PIN, DOWEL Substituted by 3086838

3080103

$7.14

BOLT AND WASHER ASSY.

3082096

$1.43

BOLT&WASHER ASSY.

3083615

Unavailable

BOLT W/WASHER

3080739

$6.35

SEAL,OIL

3082162

$40.46

SEAL,OIL

3082162

$40.46

BEARING,BALL Substituted by 3083805

3080004

Unavailable

STUD Substituted by 3085713

3080746

$3.17

STUD Substituted by 3085713

3080746

$3.17

PLUG, DRAIN

3083767

Unavailable

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

CYLINDER Substituted by 3085541 (Incl. 12-14)

3083769

Unavailable

STUD

3083618

Unavailable

STUD (10)

3080016

$5.71

VALVE, CHECK Substituted by 3086785

3083337

$56.65

GASKET,CYLINDER

3083733

$40.46

NUT Substituted by 3082911

3080047

$1.99

WASHER, SPRING(10)

3080281

Unavailable

WASHER(10)

3080356

Unavailable

HEAD, CYLINDER Substituted by 3086841

3083620

Unavailable

GASKET, HEAD

3083768

Unavailable

NUT(10)

3080119

Unavailable

WASHER, SPRING(10)

3083572

Unavailable

WASHER(10)

3082673

$2.38

ADAPTER, CARB. Substituted by 3085013

3083412

$109.27

BAND-CARB MTG. (Incl. 26)

3082257

Unavailable

SCREW,(10)

3081497

$2.38

Bolt, Allen

3081330

$3.97

FIN DAMPER #1 Substituted by 3083929

3083621

Unavailable

FIN DAMPER #1 Substituted by 3083929

3083621

Unavailable

FIN DAMPER #2 Substituted by 3083930

3083622

Unavailable

FIN DAMPER #3 [No Longer Available]

3083623

Unavailable

FIN DAMPER #4 [No Longer Available]

3083624

Unavailable

FIN DAMPER #4 [No Longer Available]

3083624

Unavailable

GASKET, EXHAUST

3083770

Unavailable

NUT(10)

3080285

Unavailable

WASHER LOCK ,(10)

3080530

$3.17

BOLT&WASHER

3083730

$4.76

MOUNTING,RUBBER

3083731

$4.92

COLLAR

3083732

Unavailable
