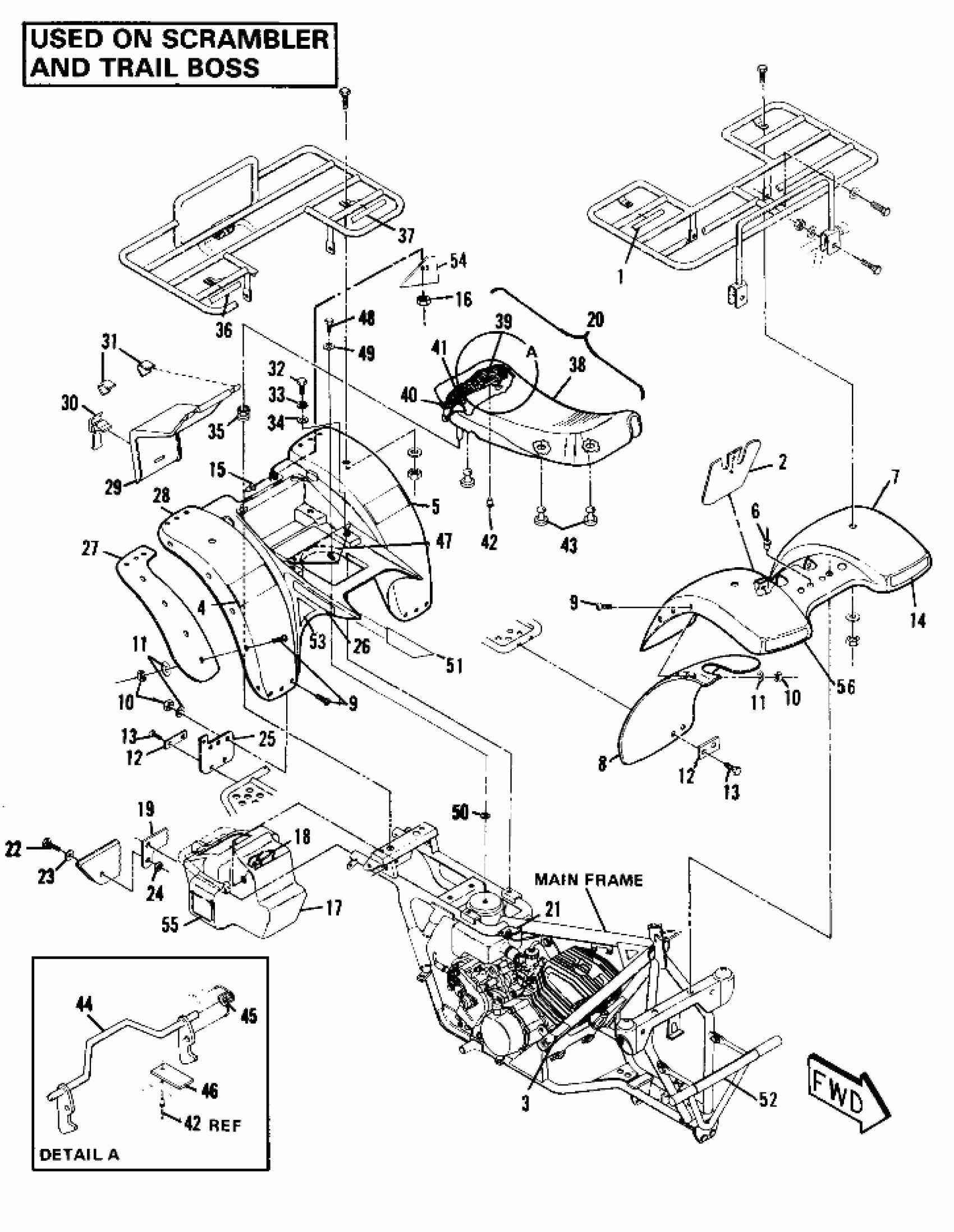

Polaris SCRAMBLER - W867027 Body Assembly (4911991199002A) Diagram

#

Description
Price

1

DECAL [No Longer Available]

7072238

Unavailable

2

FLAP,SPLASHGUARD

5850070

Unavailable

3

DECAL [No Longer Available]

7072311

Unavailable

4

DECAL,WARNING(FRENCH) [No Longer Available] (French)

7072276

Unavailable

4

DECAL,WARN,LT.BLUE,FREN. [No Longer Available] (French)

7072317

Unavailable

5

DECAL,WARN,LT.BLUE,ENG. [No Longer Available] (English)

7072318

Unavailable

6

RIVET(50)

7621457

$1.49

7

CAB,FRONT,LT.BLUE Substituted by 5430990-107

5430835

Unavailable

8

MUDFLAP,FRONT,LH

5850071

Unavailable

8

MUDFLAP,FRONT,RH

5850072

Unavailable

9

BOLT(10)

7512273

Unavailable

9

BOLT(10)

7512273

Unavailable

10

NUT-LOCK(10)

7542122

$1.49

10

NUT-LOCK(10)

7542122

$1.49

11

WASHER(10)

7558301

$1.49

11

WASHER(10)

7558301

$1.49

12

BRACKET,MUD FLAP Substituted by 5211020-067

5211020

Unavailable

12

BRACKET,MUD FLAP Substituted by 5211020-067

5211020

Unavailable

13

BOLT(10)

7512232

$1.49

13

BOLT(10)

7512232

$1.49

14

DECAL [No Longer Available]

7072349

Unavailable

15

RIVET(50)

7621462

$1.49

16

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

17

COMPARTMENT,TOOLBOX Substituted by 5430882

5430774

Unavailable

18

RIVET,(50) Substituted by 7621467

7621401

Unavailable

19

BRACKET,TAILLIGHT

5210985

Unavailable

20

SEAT ASM, (ATV) (Incl. 38-43)

2681240

Unavailable

21

STRAP, BLK

7080272

Unavailable

22

SCREW(10)

7511930

$2.39

23

WASHER(10)

7558203

$3.19

24

NUT(10)

7541925

$1.49

25

FLAP,MUD,LH REAR

5850062

Unavailable

25

FLAP,MUD,RH REAR

5850066

Unavailable

26

DECAL,SCRAMBLER [No Longer Available] (Scrambler)

7072232

Unavailable

26

DECAL,TRAILBOSS,BLACK [No Longer Available] (Trail Boss) Black

7072314

Unavailable

27

FLAP,MUD,LH REAR

5850060

Unavailable

27

FLAP,MUD,RH REAR

5850061

Unavailable

28

CAB,REAR,LT.BLUE Substituted by 5430991-107

5430837

Unavailable

29

LID, TOOLBOX [No Longer Available]

5430769

Unavailable

30

STRAP,TOOL COMPARTMENT

5410425

Unavailable

31

CLIP, LID HINGE(10)

7670050

Unavailable

32

BOLT(10) Substituted by 7512240

7512111

Unavailable

33

LOCK WASHER(10)

7552801

$1.59

35

GROMMET

5410413

Unavailable

36

DECAL [No Longer Available]

7072237

Unavailable

38

COVER,SEAT,(ATV)

2681241

Unavailable

39

FOAM BUN, SEAT [No Longer Available]

5430803

Unavailable

40

Staple

-------

Unavailable

41

BASE, SEAT Substituted by 2681288

5430773

Unavailable

42

BLIND RIVET(50)

7621403

$1.49

42

BLIND RIVET(50)

7621403

$1.49

43

Bumper, Rubber

5410414

$3.19

44

LATCH,SEAT

1011558

Unavailable

45

SPRING, LATCH

7041158

Unavailable

46

BRACKET,LEVER RETAINER

5211033

$29.25

47

BRACKET, AIR BOX

5220560

Unavailable

48

SCREW(10)

7512307

$3.99

49

LOCK WASHER(10)

7552901

$1.49

50

WASHER(10)

7555716

$1.59

51

TAPE, FOIL [No Longer Available]

5810309

Unavailable

52

DECAL, STRUT [No Longer Available]

7072233

Unavailable

53

DECAL,SHIFT,BLUE [No Longer Available]

7072315

Unavailable

54

FLAP,TOOL COMPART.

5810314

Unavailable

55

TAPE, FOIL

5810310

Unavailable

56

DECAL [No Longer Available]

7072287

Unavailable
