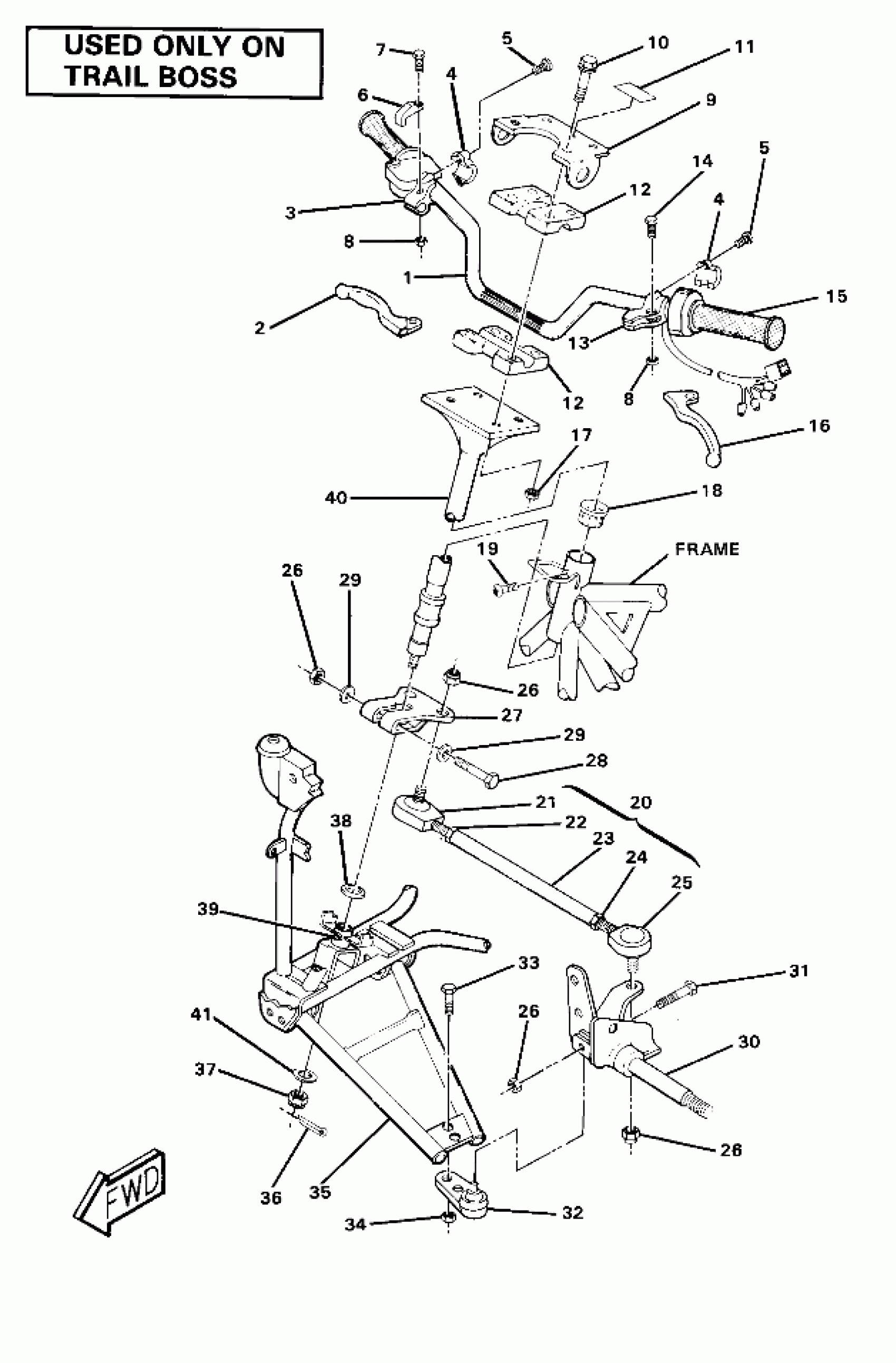

Polaris SCRAMBLER - W857027 Steering Assembly-Trail Boss (4910981098016A) Diagram

#

Description
Price

1

BAR, HANDLE(4/W) Substituted by 5224316-067

5224261

Unavailable

2

LEVER, BRAKE, RH

2050004

Unavailable

3

HOLDER, LEVER

2050002

Unavailable

4

HOLDER,LEVER,LOW.1

2050005

Unavailable

4

HOLDER,LEVER,LOW.1

2050005

Unavailable

5

SCREW&WASHER

2010047

Unavailable

5

SCREW&WASHER

2010047

Unavailable

6

LOCK, LEVER [No Longer Available]

2050026

Unavailable

7

BOLT LEVER

2050021

Unavailable

8

NUT

2050009

Unavailable

8

NUT

2050009

Unavailable

9

BRACKET,H/L MT.

5220484

Unavailable

10

BOLT(10)

7512272

Unavailable

11

DECAL,OIL LEVEL [No Longer Available]

7072244

Unavailable

12

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$4.35

12

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$4.35

13

HOLDER, LEVER

2050020

Unavailable

14

BOLT

2050008

Unavailable

15

GRIP, HANDLE BAR Substituted by 5431030

5410416

$28.32

16

LEVER, BRAKE, LH [No Longer Available]

2050019

Unavailable

17

NUT-LOCK(10)

7542122

$1.19

18

BUSHING,STEERING

5430770

Unavailable

19

SCREW

7510503

Unavailable

20

TIE ROD ASM. [Cannot Purchase as Assembly]

1822063

Unavailable

21

ROD END, RH Substituted by 2200271

7060132

Unavailable

22

NUT HEX(10)

7542401

$2.38

23

ROD, TIE

5010209

$2.89

24

NUT

7542424

$0.79

25

ROD END, LH Substituted by 2200271

7060131

Unavailable

26

NUT LOCK(10)

7542403

Unavailable

26

NUT LOCK(10)

7542403

Unavailable

26

NUT LOCK(10)

7542403

Unavailable

27

FROG,STEERING

5220546

Unavailable

28

BOLT Substituted by 7515491

7515433

$1.59

29

WASHER(10) Substituted by 7555806

7555720

$0.79

29

WASHER(10) Substituted by 7555806

7555720

$0.79

30

SPINDLE, LH Substituted by 1821023-067

1821023

Unavailable

30

SPINDLE, RH Substituted by 1821024-067

1821024

Unavailable

31

BOLT(10) Substituted by 7512404

7515425

$3.97

32

BALL JOINT

7060133

Unavailable

33

BOLT(10) Substituted by 7512492

7515458

$1.19

34

NUT(10)

7542423

$3.97

35

A FRAME, LH WELD [No Longer Available]

1580001

Unavailable

35

A FRAME, RH WELD [No Longer Available]

1580002

Unavailable

36

PIN COTTER(10)

7661203

$1.19

37

NUT(10)

7542712

$9.52

38

BUSHING,MACH.

7556306

Unavailable

39

FITTING-LUBE.(10) Substituted by 7080561

7080220

$4.76

40

POST, STEERING [No Longer Available]

1843003

Unavailable

41

WASHER(10)

7555801

$3.97
