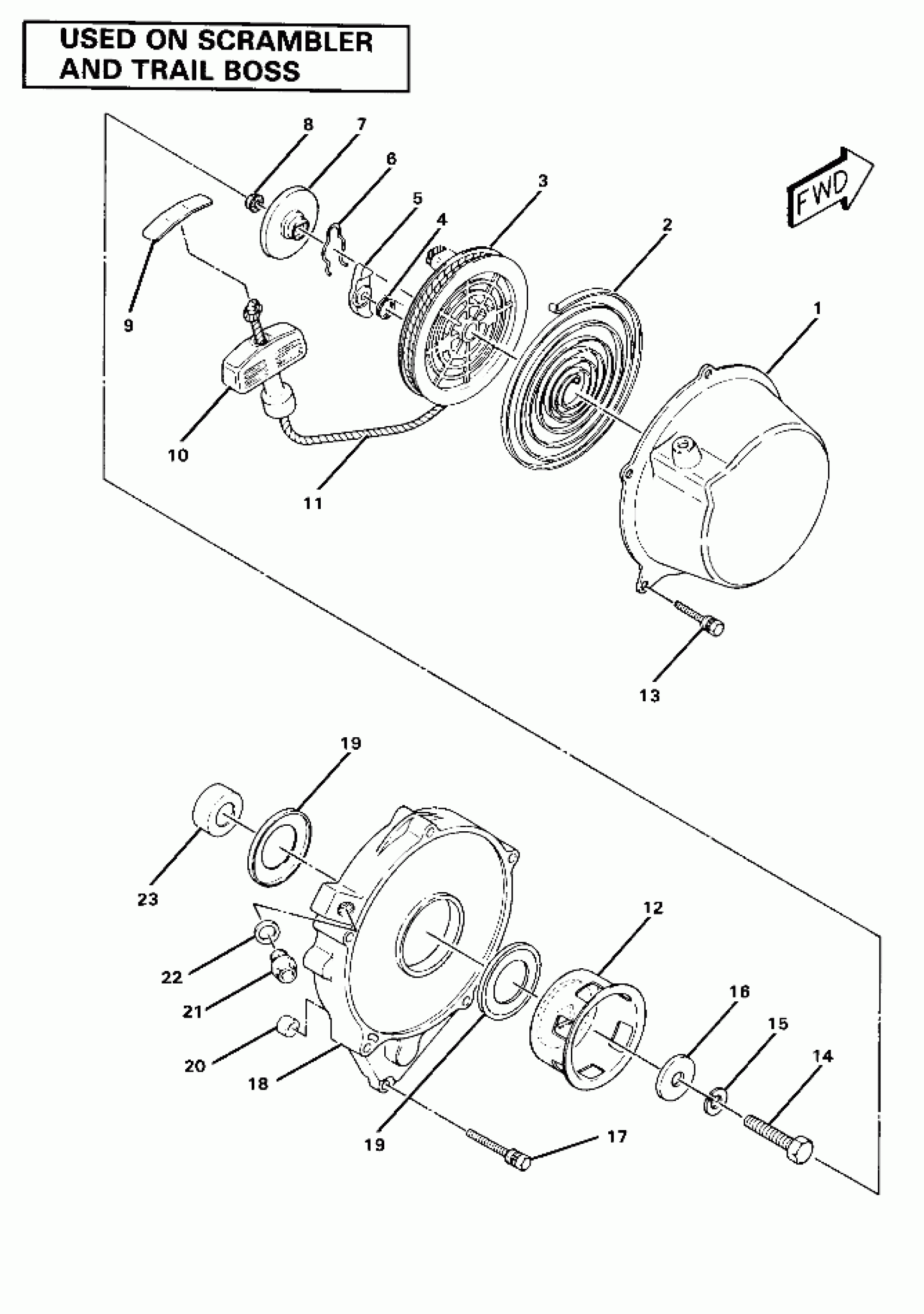

Polaris SCRAMBLER - W857027 Recoil Starter Assembly (4910981098054A) Diagram

#

Description
Price

1

RECOIL STARTER Substituted by 3083924

3083653

Unavailable

1

CASE, STARTER [No Longer Available]

3083654

Unavailable

2

Spring, Spiral

3083376

$179.11

3

REEL, REWIND

3083377

$56.65

4

SPRING,RETURN

3083655

Unavailable

5

Ratchet

3083378

$20.22

6

SPRING, FRICTION

3083656

$4.95

7

Plate, Friction

3083464

$28.32

8

NUT, FLANGE ,(10)

3083381

$2.99

9

Cap, Knob

3083660

Unavailable

10

Knob, Starter

3083659

Unavailable

11

ROPE, STARTER Substituted by 2870621

3083658

Unavailable

12

PULLEY, STARTING [No Longer Available]

3083661

Unavailable

13

BOLT&WASHER ASSY.

3083664

Unavailable

14

BOLT

3083662

Unavailable

15

WASHER, SPRING(10)

3080281

$0.79

16

Washer

3083663

Unavailable

17

BOLT&WASHER ASSY. [No Longer Available]

3083665

Unavailable

18

HOUSING, MAGNETO Substituted by 3083764

3083666

Unavailable

19

SEAL, OIL Substituted by 3083742

3083667

Unavailable

19

SEAL, OIL Substituted by 3083742

3083667

Unavailable

20

BUSHING, STARTER

3083669

Unavailable

21

PLUG Substituted by 3086749

3083453

Unavailable

22

GASKET-ALUM(10)

3082717

Unavailable

23

COLLAR

3083668

Unavailable
