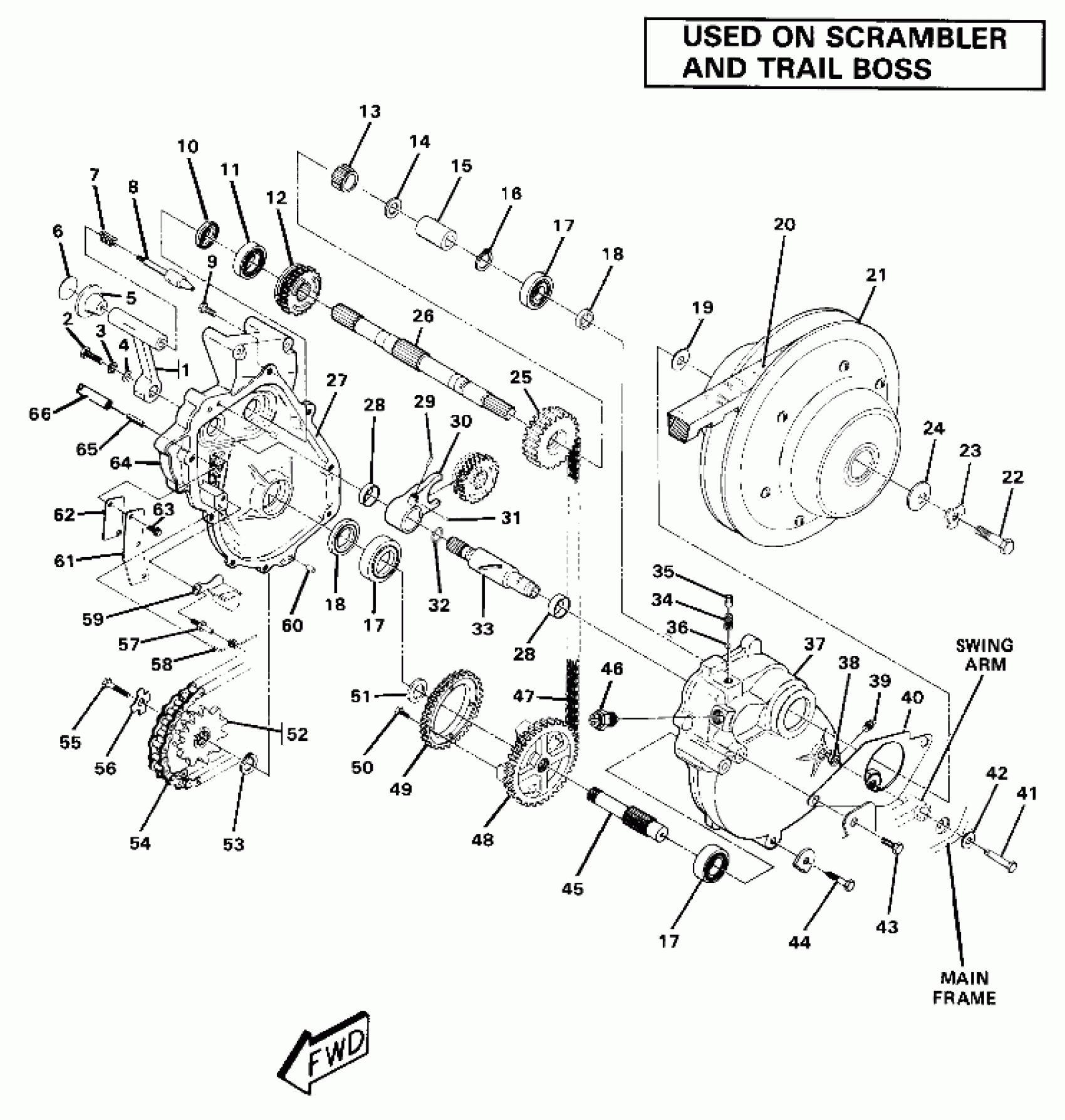

Polaris SCRAMBLER - W857027 Gearcase Assembly (4910981098038A) Diagram

#

Description
Price

-

OIL,GAL,CHAINCASE&TRANNY(6)3.8L [No Longer Available]

2870464

Unavailable

1

LEVER, SHIFT [No Longer Available]

1341024

Unavailable

2

BOLT(10) Substituted by 7512240

7512111

Unavailable

3

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

4

WASHER(10)

7558221

$2.39

5

KNOB

7030006

Unavailable

6

DECAL [No Longer Available]

7072234

Unavailable

7

SPRING,SHIFT LEVER

7041170

$36.03

8

SHAFT,SHIFT LEVER Substituted by 5020470

5020442

Unavailable

9

SCREW(10)

7512242

$2.39

10

SEAL, OIL

3610014

Unavailable

11

BEARING, BALL

3514001

$19.99

12

PINION, REVERSE Substituted by 5130621

5130592

Unavailable

13

BEARING, NEEDLE

3554502

Unavailable

14

WASHER(10)

7555751

Unavailable

15

SPACER, INPUT SHAFT

5010210

$17.30

16

RING, RET.(10)

7710411

Unavailable

17

BEARING,205,W/O SEAL

3514304

$15.99

17

BEARING,205,W/O SEAL

3514304

$15.99

17

BEARING,205,W/O SEAL

3514304

$15.99

18

SEAL, OIL

3610015

Unavailable

18

SEAL, OIL

3610015

Unavailable

19

SPACER, DRIVEN

5211041

Unavailable

20

BELT-DRIVE(5) Substituted by 3211077

3211048

Unavailable

21

CLUTCH, DRIVEN Substituted by 1322136

1322112

Unavailable

22

BOLT(10)

7515318

Unavailable

23

WASHER,SHAKEPROOF,5/16(10)

7577901

Unavailable

24

WASHER, DOMED(10)

5220646

$2.39

25

GEAR,FORWARD,SMALL

5130593

$233.59

26

SHAFT, INPUT Substituted by 5020467

5020439

Unavailable

27

GASKET ELIMIN.50CCTUBE Substituted by 2871557

2870587

Unavailable

28

BUSHING, SLEEVE

3574209

Unavailable

28

BUSHING, SLEEVE

3574209

Unavailable

29

PIN, DOWEL(10)

7661819

Unavailable

30

FORK, SHIFT Substituted by 5130662

5130594

Unavailable

31

PIN, SPRING(10)

7661206

Unavailable

32

O RING(10)

5410440

$4.84

33

SHAFT, SHIFT

5130595

$30.39

34

SPRING, SHIFTER

7041169

Unavailable

35

SCREW, SET(10)

7515473

Unavailable

36

BALL, DETENT

7080310

$5.99

37

GEARCASE,LH

5130588

Unavailable

38

BUSHING,SWING ARM MT.

5630267

Unavailable

39

PLUG,PIPE,MAGNETIC

7051512

Unavailable

40

RETAINER,BULKHEAD,LH

5220636

Unavailable

41

BOLT, SPECIAL

7512664

Unavailable

42

WASHER(10)

7555749

$1.49

43

BOLT(10) Substituted by 7512492

7515458

Unavailable

44

BOLT(10)

7515472

$2.39

45

SHAFT, OUTPUT

5020440

Unavailable

46

SW,REV./NEUT.INDIC.

4110062

$32.37

47

CHAIN, SILENT

3224035

Unavailable

48

GEAR, FORWARD [No Longer Available]

5130591

Unavailable

49

RING GEAR, REVERSE Substituted by 5130644

5130590

Unavailable

50

BOLT(10)

7512247

$2.39

51

SPACER,OUTPUT SHAFT [No Longer Available]

5010211

Unavailable

52

SPKT,13T,SPLINED

3221041

$43.99

53

RING, RET.

7710410

Unavailable

54

CHAIN, FINAL DRIVE

3224034

Unavailable

55

BOLT(10)

7512391

Unavailable

56

WASHER,SHAKEPROOF,5/16

7577902

Unavailable

57

BOLT TENSIONER

7080308

Unavailable

58

SPRING, TENSIONER

7041163

Unavailable

59

DAMPENER,TENSIONER [No Longer Available]

7080309

Unavailable

60

PIN, DOWEL(10)

7661904

Unavailable

61

PLATE, VENT

5211036

Unavailable

62

GASKET, VENT

5810305

Unavailable

63

SCREW(10)

7512208

$3.99

64

GEARCASE,RH Substituted by 5130611

5130589

Unavailable

65

PIN-SPIRAL(10)

7661504

$1.27

66

KIT-TANK VENT

2200190

Unavailable
