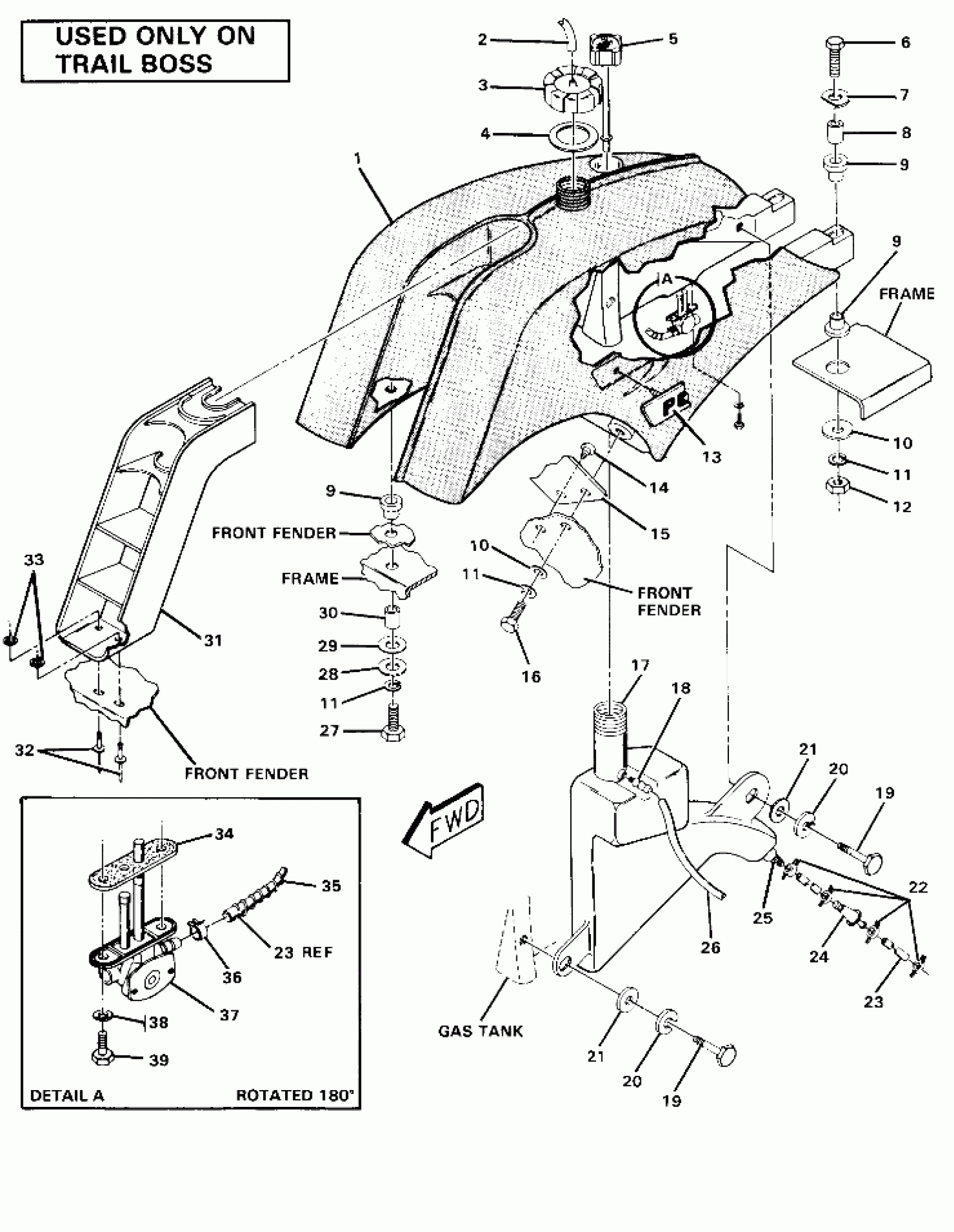

Polaris SCRAMBLER - W857027 Fuel Tank Assembly-Trail Boss (4910981098012A) Diagram

#

Description
Price

1

TANK,FUEL, 4 WHL. Substituted by 5430898

5430759

Unavailable

2

LINE, VENT Substituted by 5521171

5521154

Unavailable

3

CAP, GAS TANK [No Longer Available]

5430799

Unavailable

4

GASKET, GAS CAP

5810288

Unavailable

5

CAP/DIPSTICK, OIL [No Longer Available]

2511162

Unavailable

6

BOLT [No Longer Available]

7515322

Unavailable

7

WASHER [No Longer Available]

5211040

Unavailable

8

SPACER,FUEL TANK

5330160

Unavailable

9

GROMMET,FUEL TANK,REAR

5410428

Unavailable

9

GROMMET,FUEL TANK,REAR

5410428

Unavailable

9

GROMMET,FUEL TANK,REAR

5410428

Unavailable

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

LOCK WASHER(10)

7552901

$1.49

11

LOCK WASHER(10)

7552901

$1.49

11

LOCK WASHER(10)

7552901

$1.49

12

NUT LOCK(10)

7542302

$3.99

13

LOGO, POLARIS Substituted by 5430864

5430817

Unavailable

14

CLIP-PLASTIC(10) Substituted by 7621505

7670041

Unavailable

15

FLAP SPLASH GUARD Substituted by 5850070

5850069

Unavailable

16

SCREW(10)

7512307

$3.99

17

TANK,OIL, 3&4 WHL.

5430762

Unavailable

18

VENT-TANK

5430579

Unavailable

19

BOLT(10)

7512269

Unavailable

19

BOLT(10)

7512269

Unavailable

20

LOCK WASHER(10)

7552801

$1.59

20

LOCK WASHER(10)

7552801

$1.59

21

WASHER,WROUGHT(10)

7558302

$1.59

21

WASHER,WROUGHT(10)

7558302

$1.59

22

CLAMP-HOSE(10)

7080134

Unavailable

23

FUEL LINE3/16ID-2FT. Substituted by 8450037-600

5521133

Unavailable

23

FUEL LINE3/16ID-2FT. Substituted by 8450037-600

5521133

Unavailable

24

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

25

FITTING - OUTLET(10)

7052023

$24.99

26

KIT-TANK VENT

2200190

Unavailable

27

SCREW(10)

7512306

Unavailable

28

WASHER(10)

7555716

$1.59

29

WASHER, RUBBER

5410430

Unavailable

30

SPACER,MOUNTING [No Longer Available]

5330158

Unavailable

31

LOUVER,AIR INTAKE

5430765

Unavailable

32

RIVET(50)

7621457

$1.49

33

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

34

GASKET, FUEL VALVE

5810308

Unavailable

35

SPRING,FUEL LINE PROTECTOR [No Longer Available]

7041172

Unavailable

36

CLAMP-HOSE(10)

7080134

Unavailable

37

VALVE,FUEL TANK

7052041

Unavailable

38

LOCK WASHER(10)

7552801

$1.59

39

BOLT(10)

7512261

$4.99
