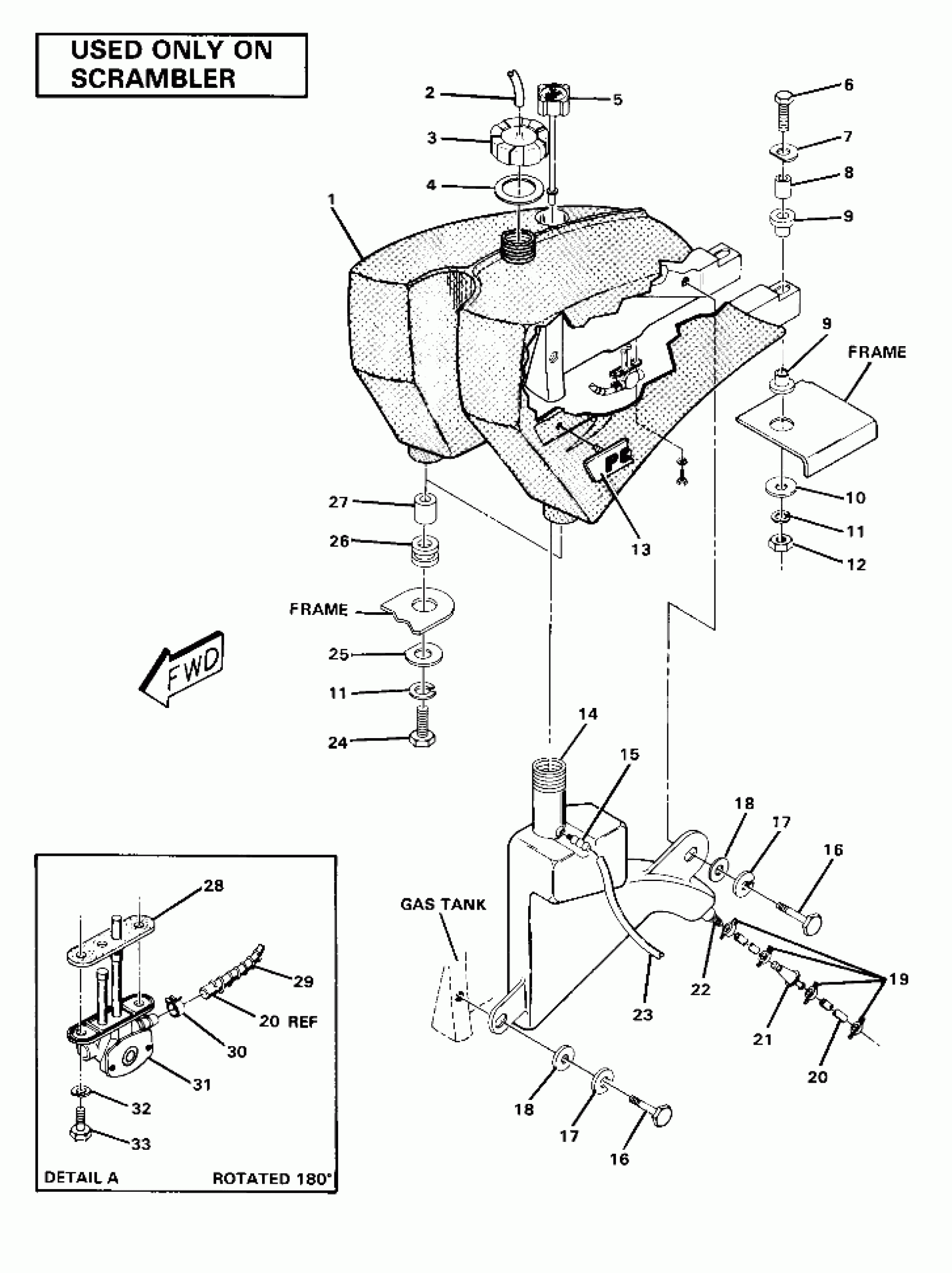

Polaris SCRAMBLER - W857027 Fuel Tank Assembly-Scrambler (4910981098014A) Diagram

#

Description
Price

1

TANK,FUEL, 3 WHL. [No Longer Available]

5430758

Unavailable

2

LINE, VENT Substituted by 5521171

5521154

Unavailable

3

CAP, GAS TANK [No Longer Available]

5430799

Unavailable

4

GASKET, GAS CAP

5810288

Unavailable

5

CAP/DIPSTICK, OIL [No Longer Available]

2511162

Unavailable

6

BOLT [No Longer Available]

7515322

Unavailable

7

WASHER [No Longer Available]

5211040

Unavailable

8

SPACER,FUEL TANK

5330160

Unavailable

9

GROMMET,FUEL TANK,REAR

5410428

Unavailable

9

GROMMET,FUEL TANK,REAR

5410428

Unavailable

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

LOCK WASHER(10)

7552901

$1.49

11

LOCK WASHER(10)

7552901

$1.49

12

NUT LOCK(10)

7542302

$3.99

13

LOGO, POLARIS [No Longer Available]

5430778

Unavailable

14

TANK,OIL, 3&4 WHL.

5430762

Unavailable

15

VENT-TANK

5430579

Unavailable

16

BOLT(10)

7512269

Unavailable

16

BOLT(10)

7512269

Unavailable

17

LOCK WASHER(10)

7552801

$1.59

17

LOCK WASHER(10)

7552801

$1.59

18

WASHER,WROUGHT(10)

7558302

$1.59

18

WASHER,WROUGHT(10)

7558302

$1.59

19

CLAMP-HOSE(10)

7080134

Unavailable

20

FUEL LINE3/16ID-2FT. Substituted by 8450037-600

5521133

Unavailable

20

FUEL LINE3/16ID-2FT. Substituted by 8450037-600

5521133

Unavailable

21

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

22

FITTING - OUTLET(10)

7052023

$24.99

23

KIT-TANK VENT

2200190

Unavailable

24

SCREW(10)

7512306

Unavailable

25

WASHER [No Longer Available]

5211040

Unavailable

26

GROMMET, RUBBER [No Longer Available]

5410419

Unavailable

27

SPACER, FRONT

5330159

Unavailable

28

GASKET, FUEL VALVE

5810308

Unavailable

29

SPRING,FUEL LINE PROTECTOR [No Longer Available]

7041172

Unavailable

30

CLAMP-HOSE(10)

7080134

Unavailable

31

VALVE,FUEL TANK

7052041

Unavailable

32

LOCK WASHER(10)

7552801

$1.59

33

BOLT(10)

7512261

$4.99
