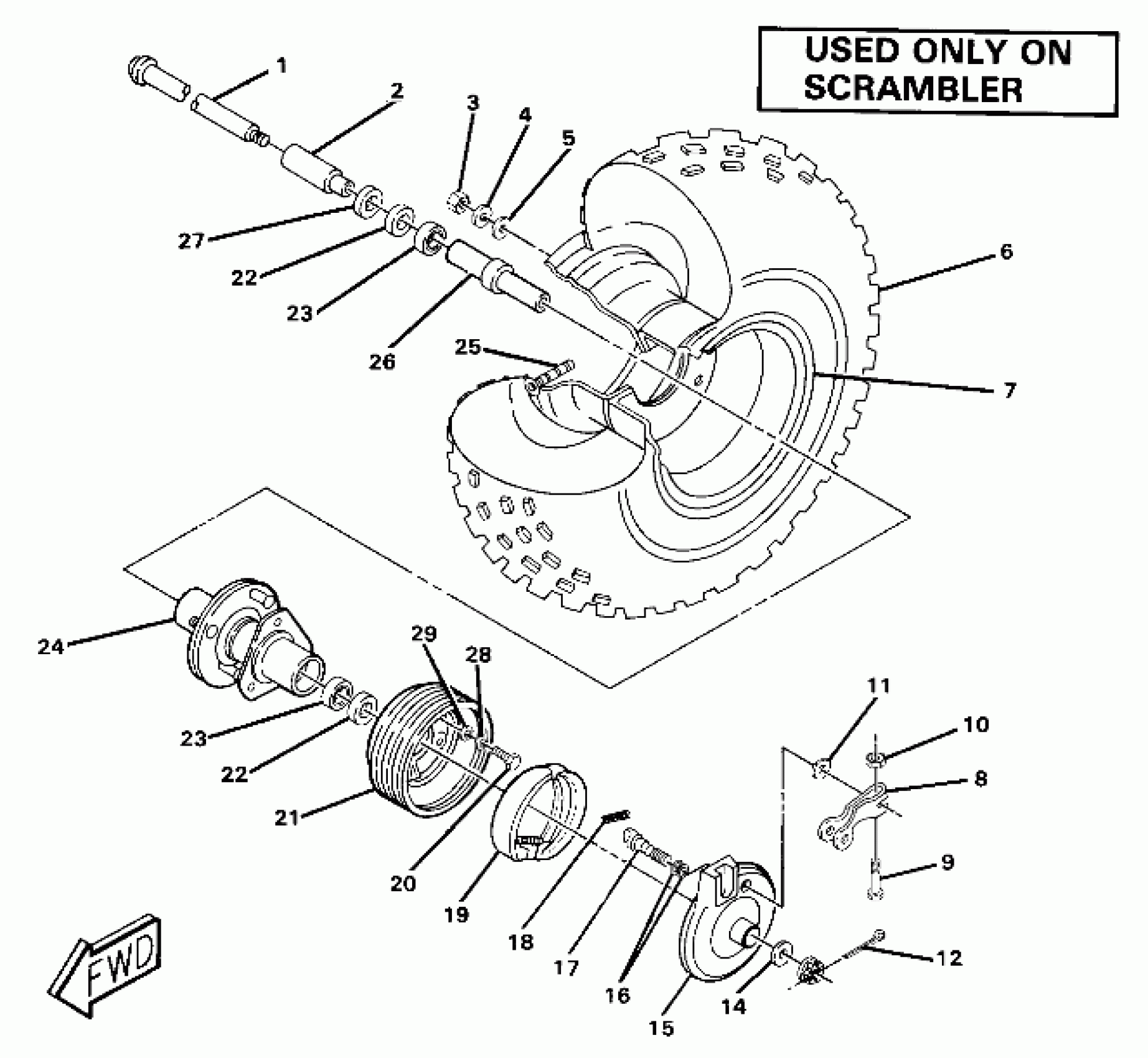

Polaris SCRAMBLER - W857027 Front Wheel and Brake Assembly. (4910981098030A) Diagram

#

Description
Price

1

AXLE-WHEEL,FRONT [No Longer Available]

1525033

Unavailable

2

COLLAR [No Longer Available]

1525046

Unavailable

3

NUT [No Longer Available]

1525043

Unavailable

4

WASHER,SPRING [No Longer Available]

1844026

Unavailable

5

WASHER, PLAIN [No Longer Available]

1525045

Unavailable

6

TIRE,FR,(3-WHEEL) [No Longer Available]

5410407

Unavailable

7

RIM, FRONT [No Longer Available]

1525018

Unavailable

8

LEVER,CAMSHAFT 1 [No Longer Available]

1525030

Unavailable

9

BOLT [No Longer Available]

1525020

Unavailable

10

NUT [No Longer Available]

1525021

Unavailable

11

PLATE, INDICATOR [No Longer Available]

1525031

Unavailable

12

PIN, COTTER [No Longer Available]

1525035

Unavailable

14

WASHER, PLATE [No Longer Available]

1525037

Unavailable

15

PLATE,BRAKE SHOE [No Longer Available]

1525028

Unavailable

16

O RING [No Longer Available]

1525032

Unavailable

17

CAMSHAFT [No Longer Available]

1525029

Unavailable

18

SPRING,TENSION

1525008

$2.22

19

BRAKE SHOE COMPL. Substituted by 2200245

1525007

Unavailable

20

BOLT [No Longer Available]

1525040

Unavailable

21

DRUM, BRAKE [No Longer Available]

1525027

Unavailable

22

SEAL, OIL

1525004

$11.90

22

SEAL, OIL

1525004

$11.90

23

BEARING

1525003

Unavailable

23

BEARING

1525003

Unavailable

24

HUB, FRONT [No Longer Available]

1525038

Unavailable

25

VALVE-RIM

1525017

$5.59

26

SPACER-BEARING [No Longer Available]

1525039

Unavailable

27

COVER, HUB DUST [No Longer Available]

1525036

Unavailable

28

WASHER-SPRING [No Longer Available]

1525041

Unavailable

29

WASHER, PLATE [No Longer Available]

1525042

Unavailable
