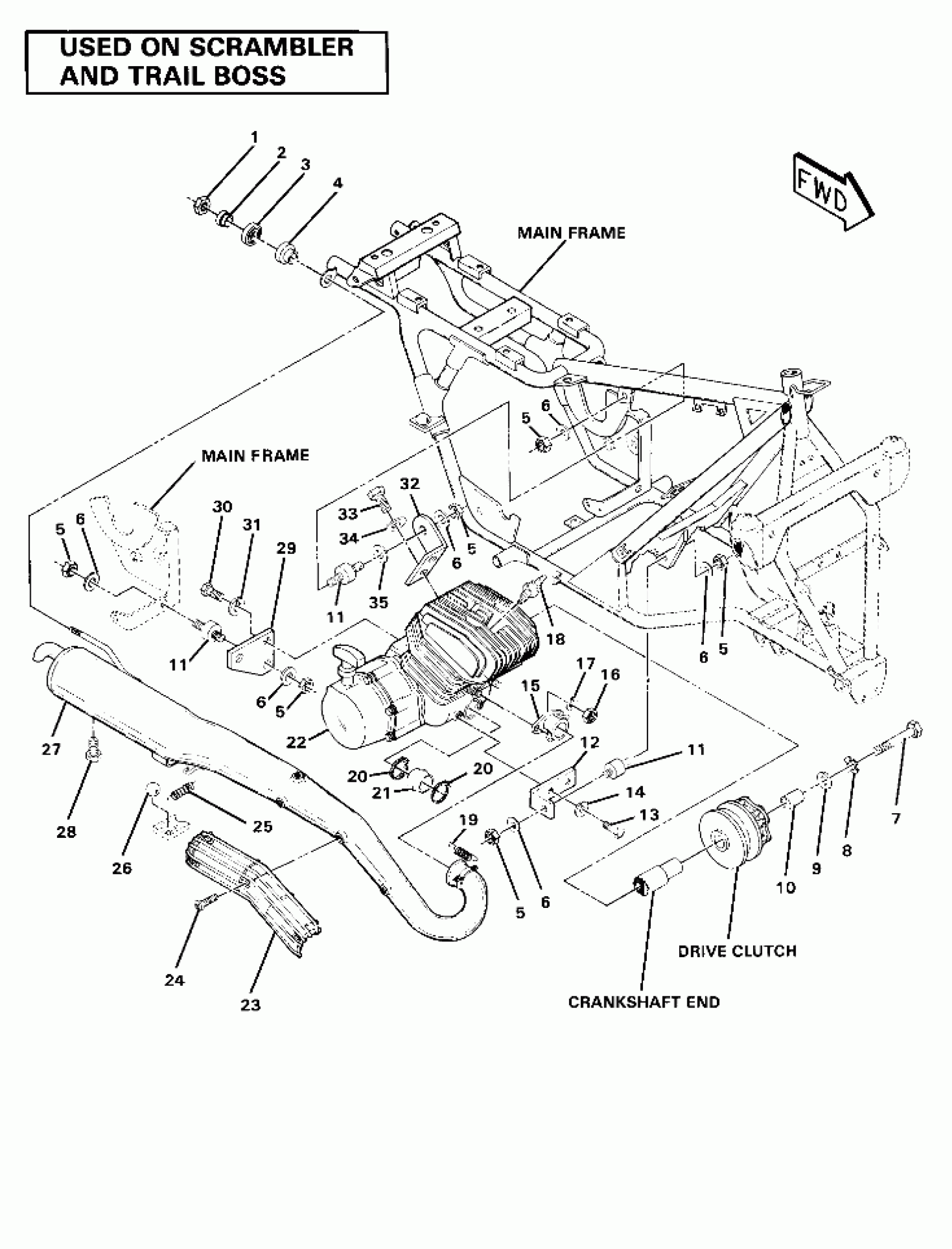

Polaris SCRAMBLER - W857027 Engine and Muffler Mounting (4910981098008A) Diagram

#

Description
Price

1

NUT LOCK(10)

7542302

$2.74

2

BUSHING,MUFFLER MT.

5020438

Unavailable

3

CAP,VIB. DAMPNER

5220630

Unavailable

4

DAMPENER-MTR.MT.

5410326

Unavailable

5

NUT LOCK(10)

7542403

Unavailable

5

NUT LOCK(10)

7542403

Unavailable

5

NUT LOCK(10)

7542403

Unavailable

5

NUT LOCK(10)

7542403

Unavailable

5

NUT LOCK(10)

7542403

Unavailable

5

NUT LOCK(10)

7542403

Unavailable

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

7

BOLT(10)

7512566

$33.24

8

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

9

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

10

BUSHING-.437 X.770 X.50

5430261

$7.14

11

MOUNT,MOTOR

3110026

$40.46

11

MOUNT,MOTOR

3110026

$40.46

11

MOUNT,MOTOR

3110026

$40.46

12

PLATE,FRONT MT.

5220589

Unavailable

13

SCREW(10)

7512490

$3.97

14

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

15

MANIFOLD

1260509

Unavailable

16

NUT(10)

3080285

Unavailable

17

WASHER LOCK ,(10)

3080530

$3.17

18

SPARKPLUG, RN4YC(3)

3070167

Unavailable

19

SPRING RETURN EXHAUST Substituted by 7042031

3081078

$6.46

20

STRAP, BLK

7080272

Unavailable

20

STRAP, BLK

7080272

Unavailable

21

BOOT,CLUTCH INTAKE

5410421

$11.32

22

ENG.(ATV)EC25PF-01 [No Longer Available]

1211444

Unavailable

23

SHIELD,MUFFLER HEAT Substituted by 5220671-067

5220624

Unavailable

24

SCREW(10)

7512252

Unavailable

25

SPRING, EXHAUST Substituted by 7042029

7642029

$5.65

26

BALL-EXH.MT.

5430687

$13.10

27

MUFFLER Substituted by 1260524

1260510

Unavailable

28

BOLT(10)

7512666

$2.38

29

PLATE,REAR MOUNT

5220588

Unavailable

30

SCREW(10)

7512490

$3.97

31

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

32

MOUNT,ENG.,TOP Substituted by 5220471-067

5220471

Unavailable

33

BOLT(10)

7515321

Unavailable

34

LOCK WASHER(10)

7552901

$1.19

35

INSULATOR,MOTOR MT.

5430802

$28.32
