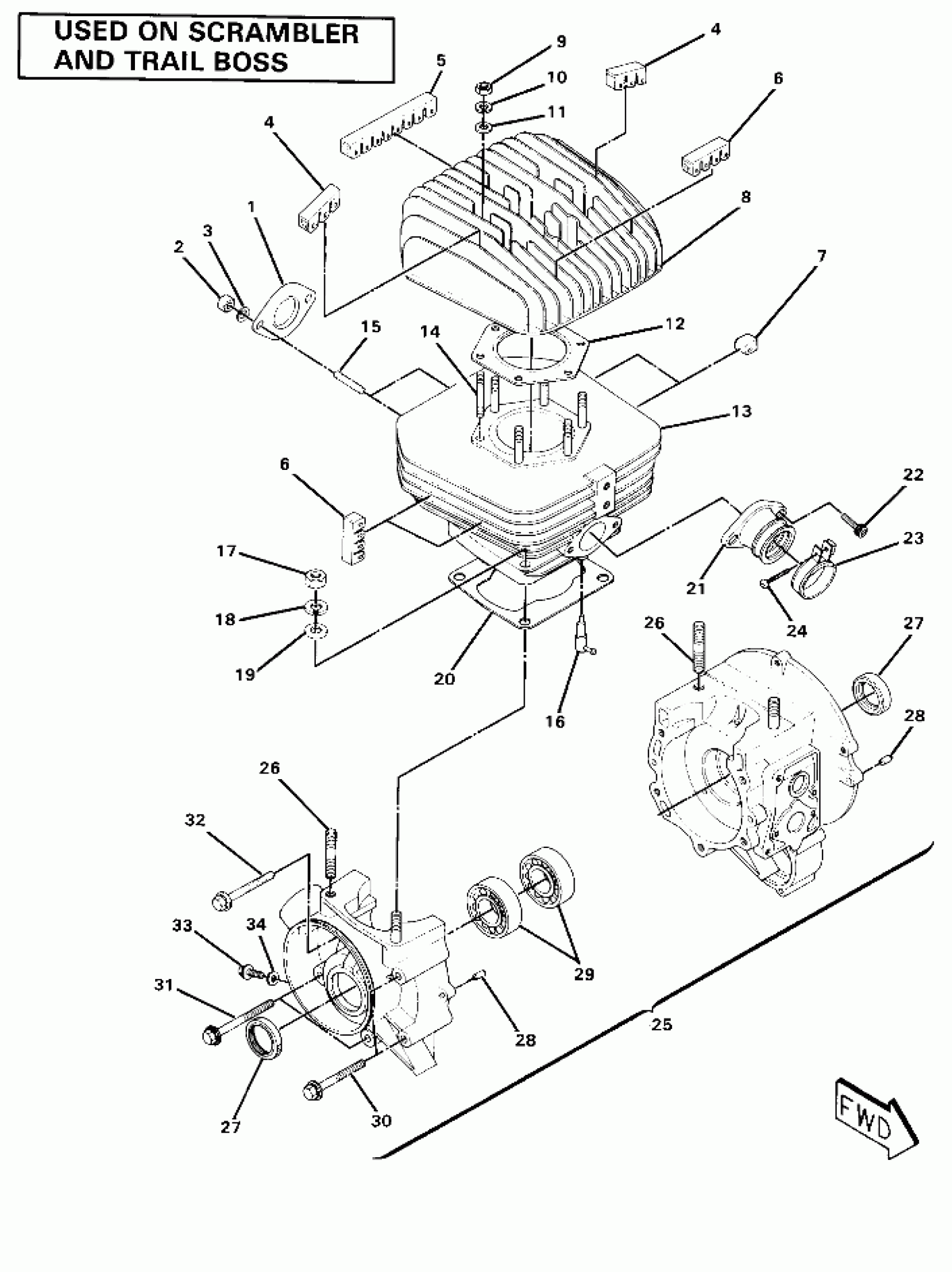

Polaris SCRAMBLER - W857027 Crankcase and Cylinder Assembly (4910981098042A) Diagram

#

Description
Price

1

GASKET,EXHAUST Substituted by 3084439

3082510

Unavailable

2

NUT(10)

3080285

Unavailable

3

WASHER LOCK ,(10)

3080530

$3.17

4

FIN DAMPER #4 [No Longer Available]

3083624

Unavailable

4

FIN DAMPER #4 [No Longer Available]

3083624

Unavailable

5

FIN DAMPER #3 [No Longer Available]

3083623

Unavailable

6

FIN DAMPER #1 Substituted by 3083929

3083621

Unavailable

6

FIN DAMPER #1 Substituted by 3083929

3083621

Unavailable

7

FIN DAMPER #2 Substituted by 3083930

3083622

Unavailable

8

HEAD, CYLINDER Substituted by 3086841

3083620

Unavailable

9

NUT(10)

3080119

Unavailable

10

WASHER, SPRING(10)

3083572

Unavailable

11

WASHER(10)

3082673

$2.38

12

GASKET, HEAD Substituted by 3083768

3083676

Unavailable

13

CYLINDER Substituted by 3083769

3083617

Unavailable

14

STUD

3083618

Unavailable

15

STUD (10)

3080016

$5.71

16

VALVE, CHECK Substituted by 3086785

3083337

$56.65

17

NUT Substituted by 3082911

3080047

$1.99

18

WASHER, SPRING(10)

3080281

Unavailable

19

WASHER(10)

3080356

Unavailable

20

GASKET, CYLINDER Substituted by 3083733

3083619

$40.46

21

ADAPTER, CARB. Substituted by 3085013

3083412

$109.27

22

Bolt, Allen

3081330

$3.97

23

BAND-CARB MTG.

3082257

Unavailable

24

SCREW,(10)

3081497

$2.38

25

CRANKCASE

3083614

Unavailable

26

STUD Substituted by 3085713

3080746

$3.17

26

STUD Substituted by 3085713

3080746

$3.17

27

SEAL,OIL

3082162

$40.46

27

SEAL,OIL

3082162

$40.46

28

PIN, DOWEL Substituted by 3086838

3080103

$7.14

28

PIN, DOWEL Substituted by 3086838

3080103

$7.14

29

BEARING,BALL Substituted by 3083805

3080004

Unavailable

30

BOLT W/WASHER

3080739

$6.35

31

BOLT&WASHER ASSY.

3083615

Unavailable

32

BOLT AND WASHER ASSY.

3082096

$1.43

33

BOLT, FLANGE Substituted by 3083767

3083616

$0.71

34

GASKET, (FIBER) Substituted by 3082758

3083569

$1.19
