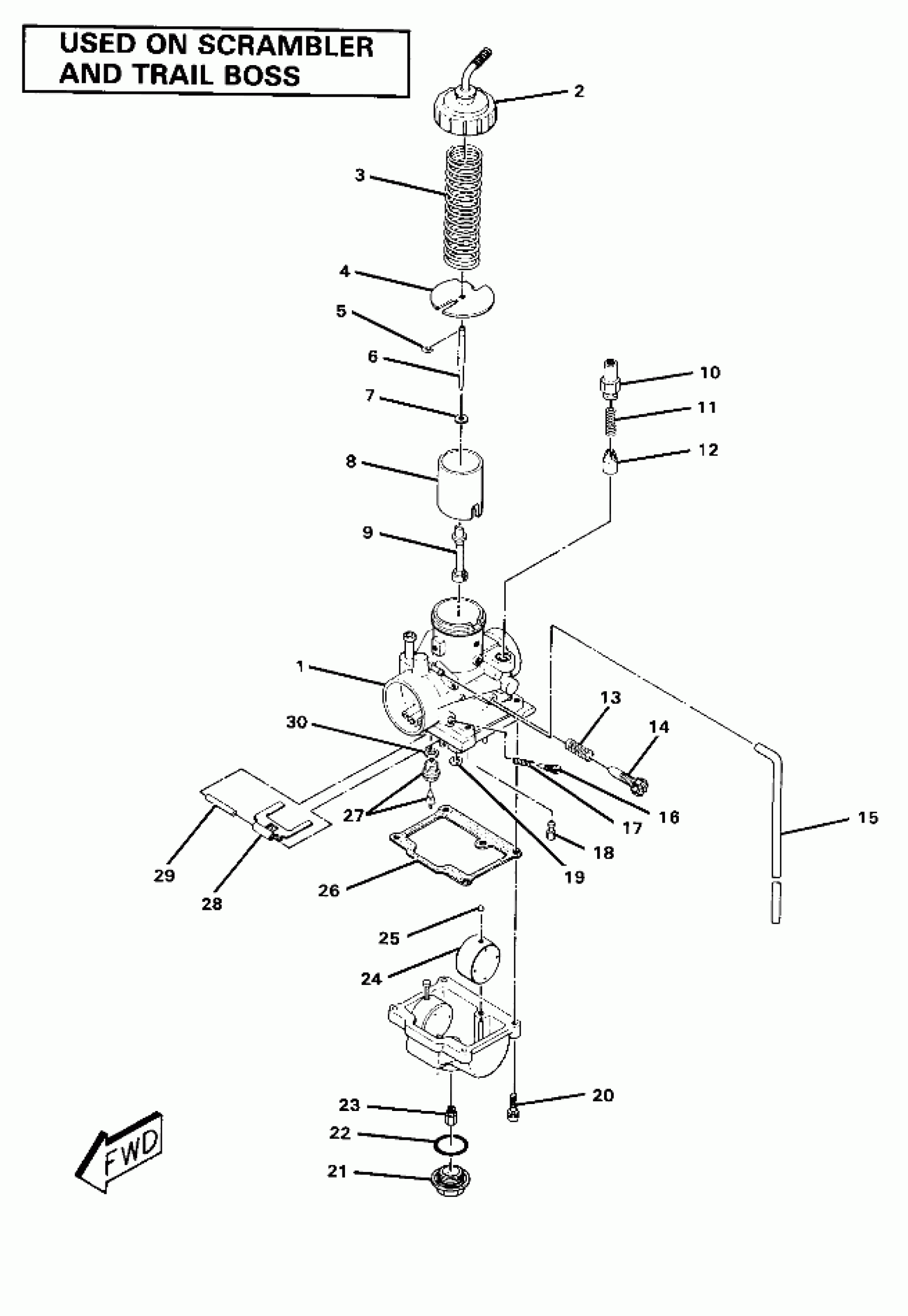

Polaris SCRAMBLER - W857027 Carburetor Assembly (4910981098048A) Diagram

#

Description
Price

1

CARBURETOR ASM. [Cannot Purchase as Assembly]

3130353

Unavailable

2

CAP ASM.

3130363

Unavailable

3

SPRING,THROTTLE

3130354

$28.32

4

PLATE,THROTTLE

3130002

$20.22

5

E RING(10) Substituted by 3130508

3130003

Unavailable

6

JET NEEDLE Substituted by 3130155

3130356

$24.27

7

Washer

3130355

$7.19

8

VALVE, THROTTLE Substituted by 3130466

3130357

Unavailable

9

NEEDLE JET Substituted by 3130469

3130358

$32.37

10

Cap, Plunger

3130359

$14.56

11

SPRING,PLUNGER

3130006

$8.89

12

PLUNGER ASM, STARTER

3130328

$32.37

13

SPRING,THROTTLE ADJ.

3130010

$8.89

14

Screw, Throttle Stop

3130324

$19.84

15

HOSE [No Longer Available]

3130362

Unavailable

16

SCREW,AIR Substituted by 3130011

3130233

Unavailable

17

SPRING,AIR ADJUST

3130012

$8.89

18

JET, IDLER H30 Substituted by 3130065

3130331

Unavailable

19

WASHER (10)

3130014

$1.59

20

SCREW & WASHER(10)

3130025

$3.19

21

BOLT,BANJO

3130321

$23.99

22

O RING

3130239

Unavailable

23

JET,MAIN,HX.HD.#145

3130112

Unavailable

24

FLOAT ASM

3130021

$40.46

25

CAP,(10)

3130237

$4.03

26

PACKING,FLOAT CHAMBER

3130020

$16.17

27

VALVE, NEEDLE

3130360

$43.99

28

ARM,FLOAT

3130018

$24.27

29

PIN, FLOAT

3130361

$8.89

30

PACKING(10)

3130017

$4.03
