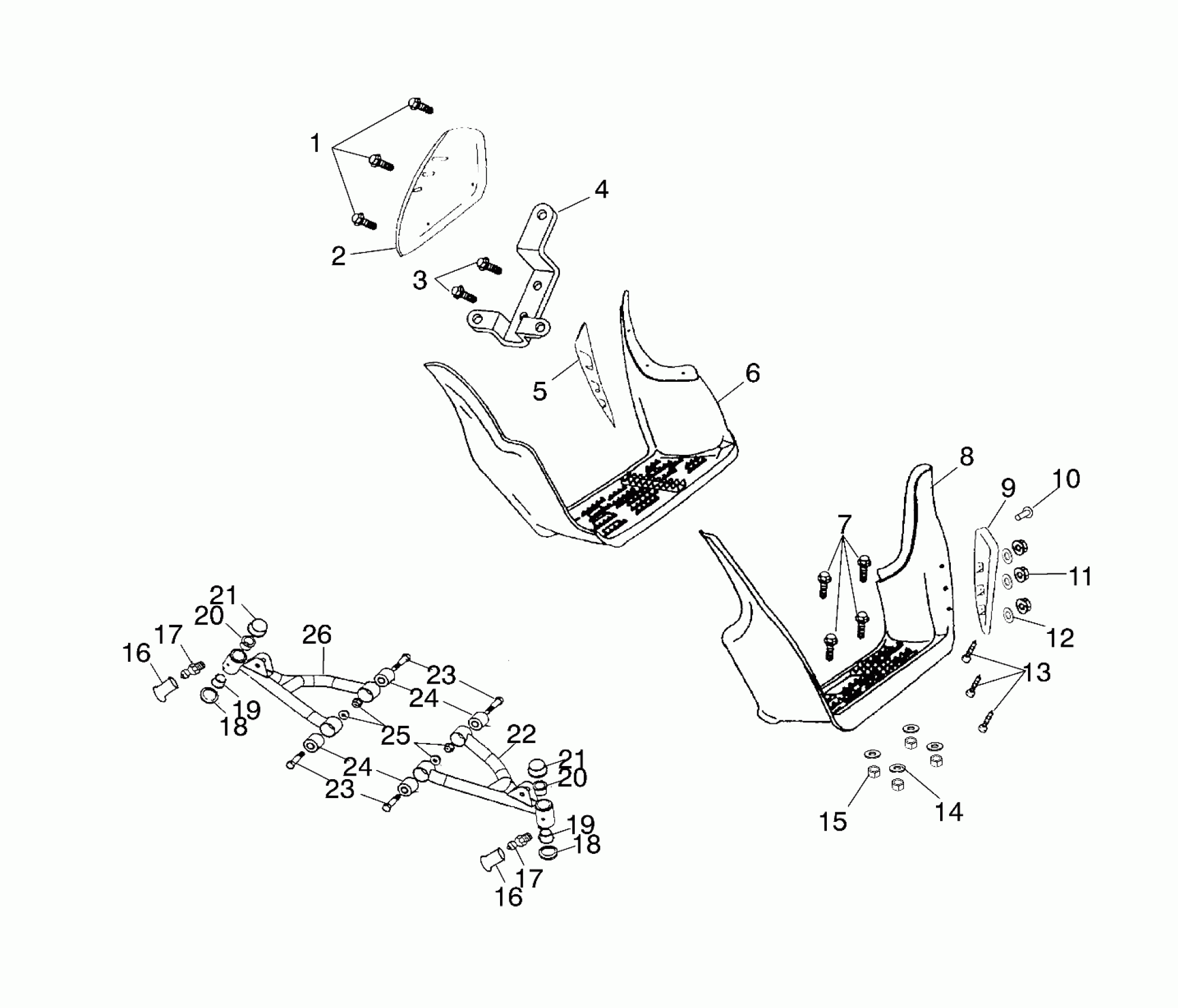

Polaris SCRAMBLER 90 - A03EA09CA SWING ARM/FOOTREST - A03EA09CA (4978807880B03) Diagram

#

Description
Price

1

Bolt, Hex

0450701

$1.49

2

Shield, Heat

0450611

Unavailable

3

BOLT, HEX

0450298

$2.39

4

Support, Heat Shield

0450612

Unavailable

5

Mudflap, RH

0450610

$21.79

6

Footrest, RH

0451092

Unavailable

7

Bolt, Hex, Washer Face

0450340

Unavailable

8

Footrest, LH

0451093

Unavailable

9

Mudflap, LH

0450609

Unavailable

10

Screw, Tapping

0450676

$1.59

11

Nut, Lock

0450823

Unavailable

12

Washer, Plain

0450743

$1.75

13

Bolt, Phillips

0450822

$0.79

14

Washer, Plain

0450879

Unavailable

15

NUT, LOCK

0450808

$2.39

16

Cap, Rubber

0450321

$3.19

16

Cap, Rubber

0450321

$3.19

17

Valve, Grease

0450320

$5.59

17

Valve, Grease

0450320

$5.59

18

RUBBER, DUSTPROOF

0450317

$6.39

18

RUBBER, DUSTPROOF

0450317

$6.39

19

Seat, Grease Contain

0450314

$3.99

19

Seat, Grease Contain

0450314

$3.99

20

Seat, Grease Contain

0450313

$3.99

20

Seat, Grease Contain

0450313

$3.99

21

COVER, WATERPROOF

0450316

Unavailable

21

COVER, WATERPROOF

0450316

Unavailable

22

Arm, Suspension, Red, LH

0451004

Unavailable

23

Bolt, Hex, Washer Face

0450820

$5.59

23

Bolt, Hex, Washer Face

0450820

$5.59

24

Bushing

0450288

$8.79

24

Bushing

0450288

$8.79

25

NUT, FLANGE

0450249

$3.99

26

Arm, Suspension, Red, RH

0451003

Unavailable
