- SCRAMBLER 90 - A03EA09CA
REAR BRAKE - A03EA09CA (4978807880B10)

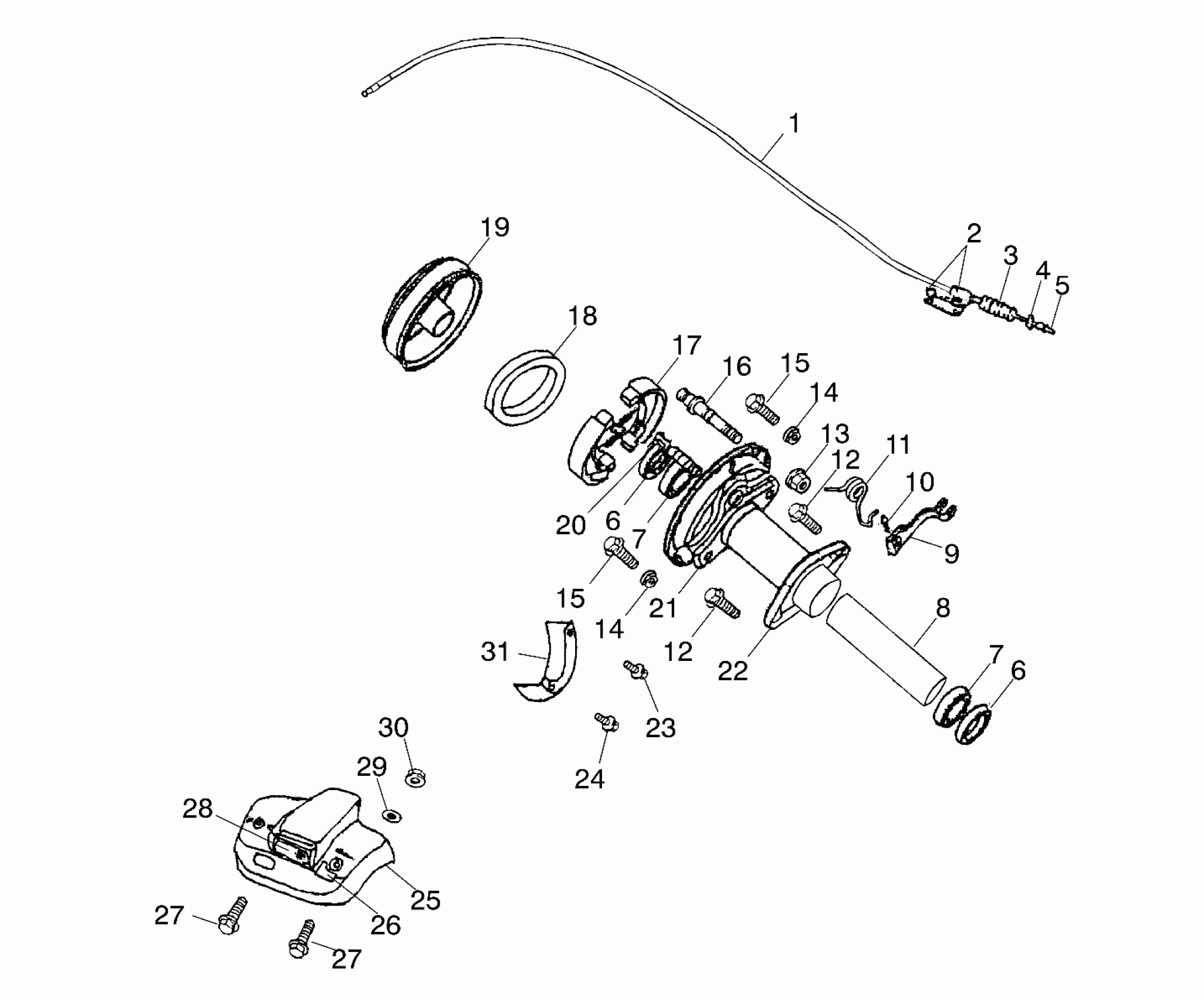

Polaris SCRAMBLER 90 - A03EA09CA REAR BRAKE - A03EA09CA (4978807880B10) Diagram
#
Description
Price
1
Cable, Rear Brake
0450438
$47.99
2
Bolt, Hex
0450268
$1.49
3
Spring, Cable, Rear Brake
0450435
$4.79
4
Thru-Shaft, Rear Brake
0450437
Unavailable
5
NUT, ADJUST, BRAKE
0451079
$5.59
6
Seal, Oil
0450430
$15.99
6
Seal, Oil
0450430
$15.99
7
Bearing
0450429
$47.99
7
Bearing
0450429
$47.99
8
Tube, Spacer
0450428
$35.99
9
Arm, Rear Brake
0450687
Unavailable
10
Bolt, Hex
0450433
$3.99
11
Spring, Arm, Rear Brake
0450453
$4.79
12
Bolt, Hex
0450451
Unavailable
12
Bolt, Hex
0450451
Unavailable
13
Nut, Lock
0450881
$4.79
14
NUT, FLANGE
0450529
$2.39
14
NUT, FLANGE
0450529
$2.39
15
Bolt, Hex
0450452
$7.19
15
Bolt, Hex
0450452
$7.19
16
Shaft, Fixed, Rear Brake
0450854
$14.39
17
Shoe, Rear Brake
0450434
Unavailable
18
Rubber, Protective
0450442
$9.59
19
Drum, Rear Brake
0450441
Unavailable
20
Shaft, Cam, Rear Brake
0450431
$31.99
21
Plate, Rear Brake
0450440
$63.99
22
Seat, Fix, Rear Axle
0450427
Unavailable
23
BOLT, HEX
0450325
Unavailable
24
BOLT, HEX
0450298
$2.39
25
Cover, Rear
0450751
$35.99
26
Decal, Drive Chain
7171069
Unavailable
27
Bolt, Hex
0450340
Unavailable
27
Bolt, Hex
0450340
Unavailable
28
Reflector, Rear
0450446
$5.75
29
Washer
0450643
Unavailable
30
Nut, Flange
0450447
$4.79
31
Cover, Protective
0450833
$25.59
