- SCRAMBLER 90 - A03EA09CA
CRANKCASE - A03EA09CA (4978807880A10)

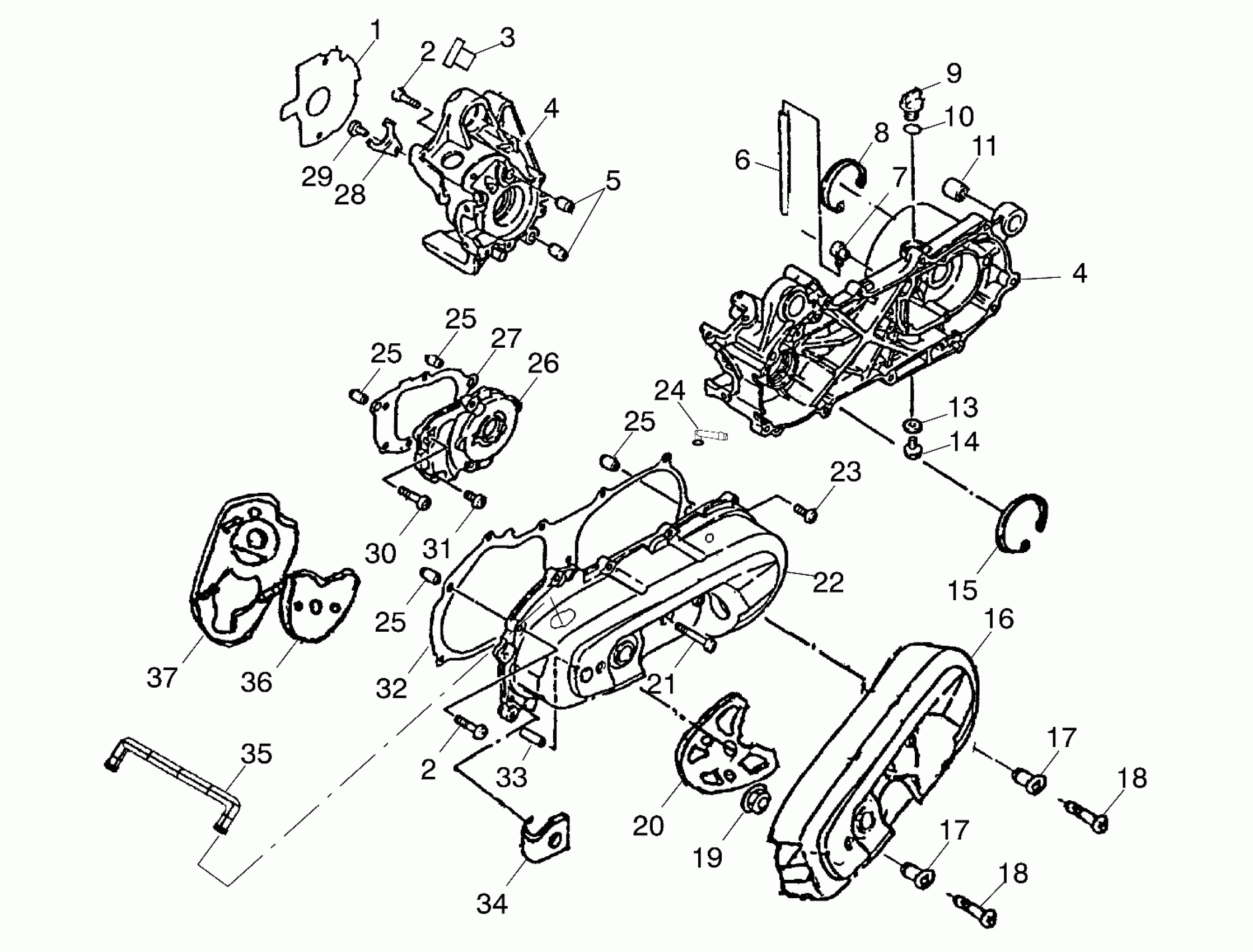

Polaris SCRAMBLER 90 - A03EA09CA CRANKCASE - A03EA09CA (4978807880A10) Diagram
#
Description
Price
1
Gasket, Generator
0450159
Unavailable
2
Bolt, Socket
0450138
$4.79
2
Bolt, Socket
0450138
$4.79
3
Plug, Rubber
0450170
$5.65
4
Asm., Crankcase
0454171
Unavailable
4
Asm., Crankcase
0454171
Unavailable
5
Pin, Dowel
0450137
$2.23
6
Hose, Breather
0450136
Unavailable
7
Head, Breather Hose
0450133
Unavailable
8
Circlip, Internal
0450161
$5.59
9
Plug, Oil
0450153
Unavailable
10
O-Ring
0450154
Unavailable
11
Bushing, Rubber
0450132
Unavailable
13
Washer
0450156
Unavailable
14
BOLT, HEX
0450298
$2.39
15
Circlip, Internal
0450162
$5.59
16
Protector, Crankcase, LH
0450163
Unavailable
17
Grommet
0450168
$3.99
17
Grommet
0450168
$3.99
18
Bolt, Flat Head, Phillips
0450167
$4.79
18
Bolt, Flat Head, Phillips
0450167
$4.79
19
Nut, Flange, Hex
0450150
$1.49
20
Protector B
0450152
Unavailable
21
Bolt, Socket, Hex
0450151
$5.99
22
Cover, Crankcase, LH
0450146
$175.99
23
Bolt, Socket, Hex
0450148
$3.99
24
Tube, Breather
0450674
$10.39
25
PIN, DOWEL
0450142
$3.99
25
PIN, DOWEL
0450142
$3.99
25
PIN, DOWEL
0450142
$3.99
25
PIN, DOWEL
0450142
$3.99
26
Cover, Mission
0450139
Unavailable
27
Gasket, Cover, Mission
0450140
$3.85
28
Bracket, Oil Seal
0450157
Unavailable
29
Bolt, Socket, Hex
0450158
$5.59
30
Bolt, Pan Head
0450143
$1.49
31
Bolt, Pan Head
0450039
$3.99
32
Gasket, Crankcase Cover, LH
0450141
Unavailable
33
Shaft, Pin
0450147
Unavailable
34
BRACKET, CARBURETOR TUBE
0450160
$4.79
35
Duct
0450707
$31.99
36
Filter
0450164
$9.99
37
Protector A
0450166
Unavailable
