Description

Price

1

Nut, Cable Adjust

0450120

$2.39

2

Gasket

0450847

Unavailable

3

Plug, Oil

0451014

$1.99

4

Pipe, Oil

0451013

$3.99

5

Screw Set, Air Adjust

0450103

$36.41

6

Screw Set, Throttle

0450114

Unavailable

7

Jet, Pilot

0451024

$39.99

8

Nozzle, Needle

0450093

Unavailable

9

Nozzle, Main

0450097

Unavailable

10

Float, Carb

0450976

$59.99

11

Pin, Float

0450118

$10.51

12

Cable, Choke

0451032

Unavailable

13

Bolt, Pan, Phillips

0450086

$5.59

13

Bolt, Pan, Phillips

0450086

$5.59

14

Tube, Overflow

0450099

$9.70

15

Plug, Drain

0450105

$10.39

16

Bolt, Pan, Phillips

0450108

Unavailable

17

Valve Set, Needle

0450895

$61.85

18

Seal, Float Chamber

0450095

$11.32

19

Asm., Carburetor [Incl. 1-31]

0451022

$355.20

20

Nozzle, Choke

0450923

Unavailable

21

Valve, Choke

0451026

Unavailable

22

Spring, Choke Return

0451029

$5.75

23

O-Ring

0451028

$7.99

24

Base, Manual Choke

0451027

Unavailable

25

Screw, Pan w/Washer

0451025

Unavailable

26

Support, Cable

0451031

Unavailable

27

Cover, Cable Support

0451030

Unavailable

28

Valve, Throttle

0450089

$53.59

29

Needle Set

0450090

Unavailable

30

Spring, Throttle Stop

0451023

Unavailable

31

Washer, Spring

0450087

Unavailable

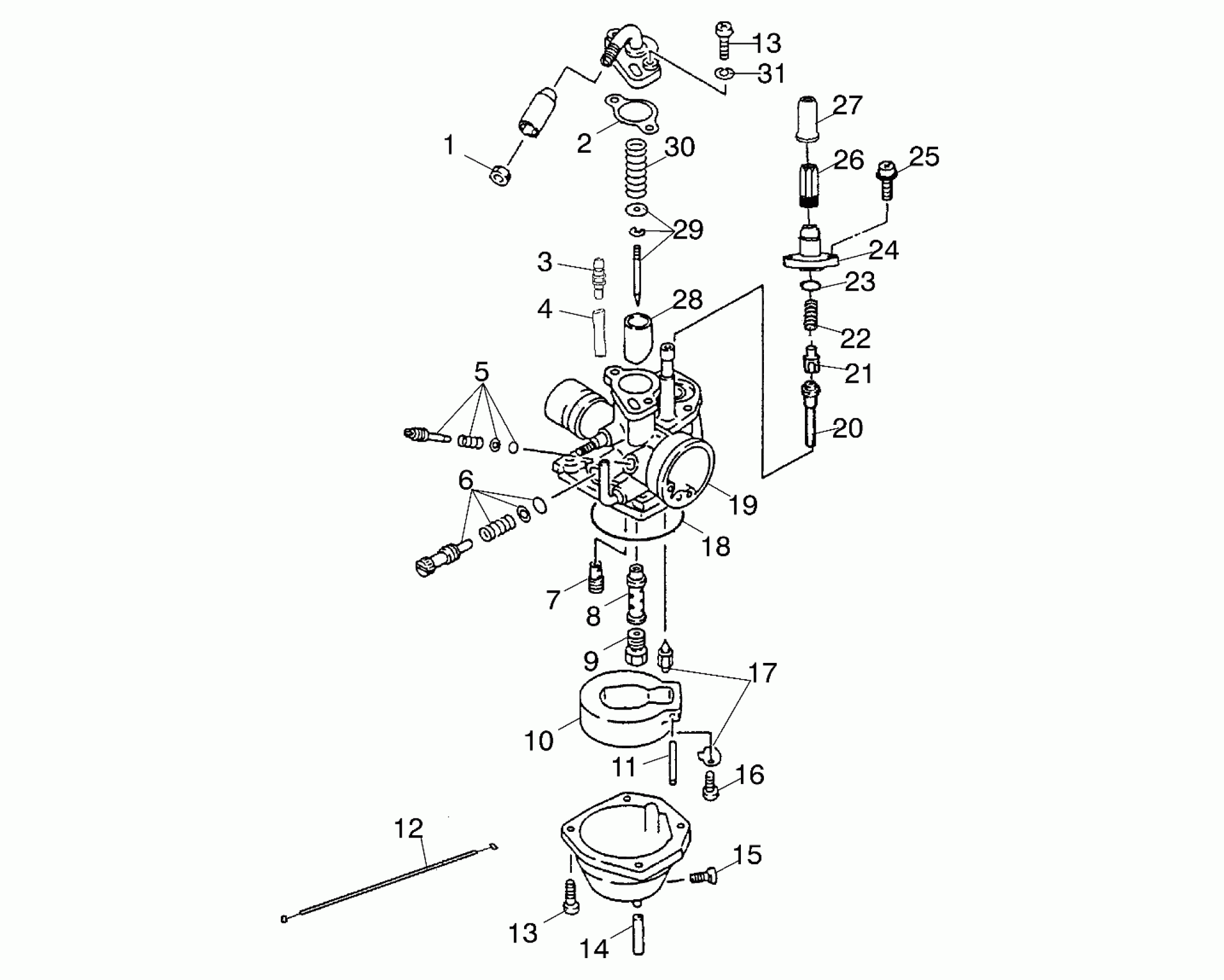

Polaris SCRAMBLER 90 - A03EA09CA CARBURETOR - A03EA09CA (4983138313A08) Diagram

Nut, Cable Adjust

Gasket

Plug, Oil

Pipe, Oil

Screw Set, Air Adjust

Screw Set, Throttle

Jet, Pilot

Nozzle, Needle

Nozzle, Main

Float, Carb

Pin, Float

Cable, Choke

Bolt, Pan, Phillips

Bolt, Pan, Phillips

Tube, Overflow

Plug, Drain

Bolt, Pan, Phillips

Valve Set, Needle

Seal, Float Chamber

Asm., Carburetor [Incl. 1-31]

Nozzle, Choke

Valve, Choke

Spring, Choke Return

O-Ring

Base, Manual Choke

Screw, Pan w/Washer

Support, Cable

Cover, Cable Support

Valve, Throttle

Needle Set

Spring, Throttle Stop

Washer, Spring
