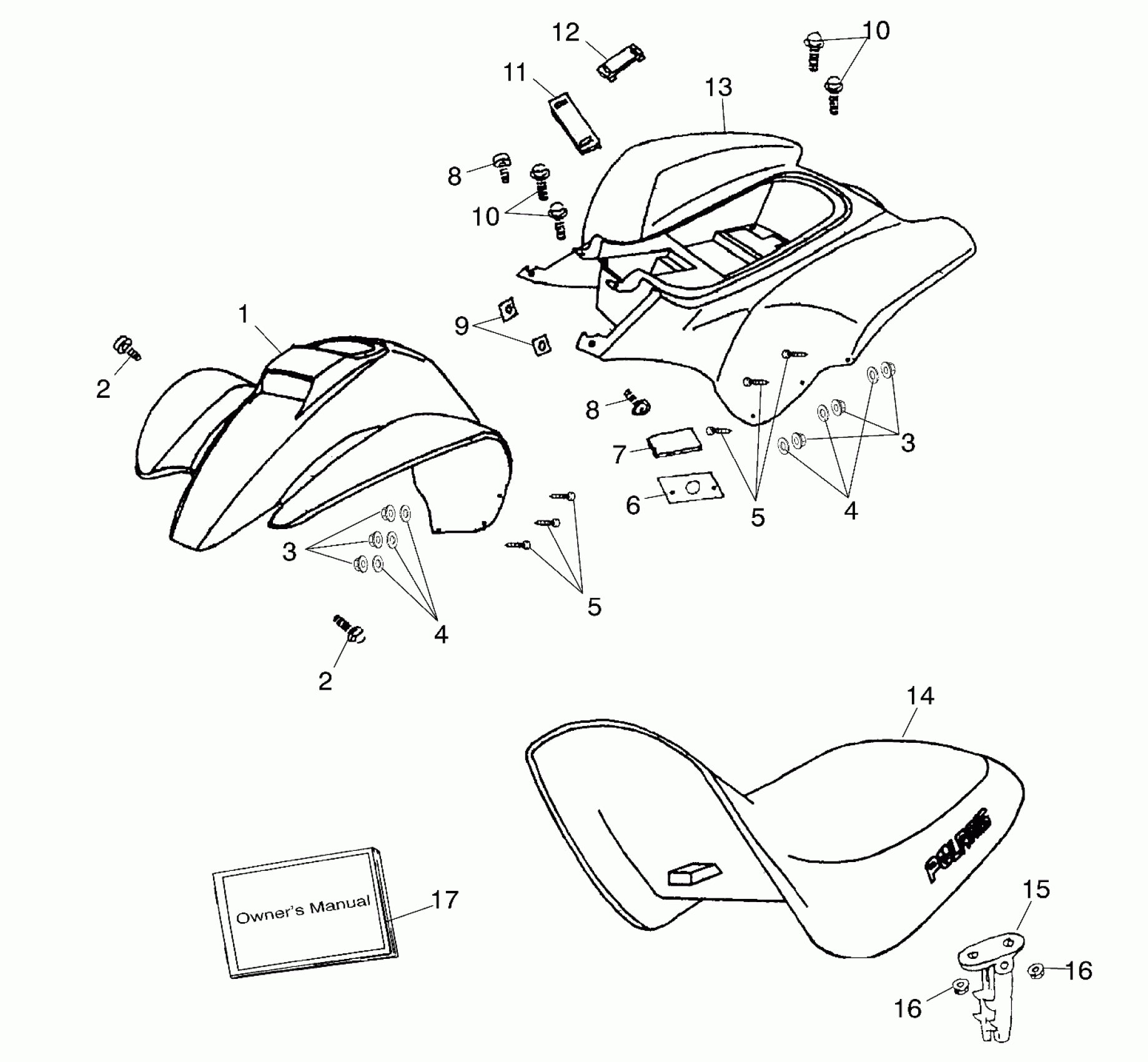

Polaris SCRAMBLER 90 - A03EA09CA CAB/SEAT - A03EA09CA (4978807880B04) Diagram

#

Description
Price

1

Cab, Front, Yellow

0451005

$247.19

2

Bolt, Hex, Washer Face

0450824

$2.39

2

Bolt, Hex, Washer Face

0450824

$2.39

3

Nut, Lock

0450741

$3.19

3

Nut, Lock

0450741

$3.19

4

Washer, Plain

0450710

$1.49

4

Washer, Plain

0450710

$1.49

5

Bolt, Phillips

0450667

$5.59

5

Bolt, Phillips

0450667

$5.59

6

Pad, Protector

0450345

$39.99

7

Rubber, Battery

0450346

$2.39

8

Bolt, Pan

0450297

$4.79

8

Bolt, Pan

0450297

$4.79

9

Nut, U-Plate

0450342

$4.79

10

Bolt, Hex

0450340

Unavailable

10

Bolt, Hex

0450340

Unavailable

11

Strap, Battery

0450897

Unavailable

12

Strap, Battery, Tool Box

0450898

$5.40

13

Cab, Rear, Yellow

0451006

Unavailable

14

Asm., Seat, Red/Black

0451007

Unavailable

15

Hook, Seat

0450356

$28.32

16

NUT, FLANGE, HEX

0450880

$3.99

16

NUT, FLANGE, HEX

0450880

$3.99

17

Manual, Owner's, 2003 Youth ATV

9917873

$25.51
