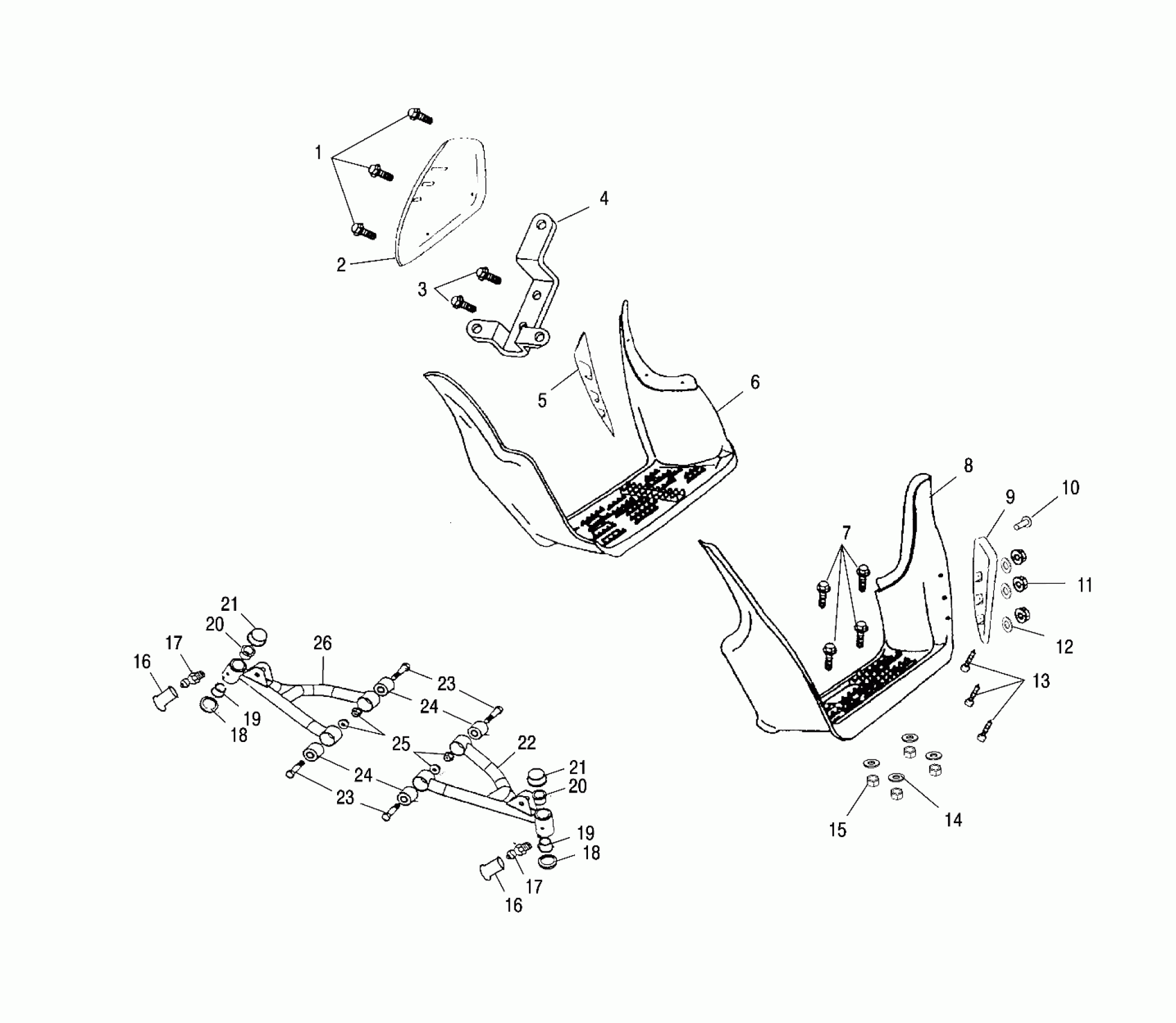

Polaris SCRAMBLER 90 - A02EA09CA SWING ARM/FOOTREST - A02EA09CA/CB/CC (4970857085B03) Diagram

#

Description
Price

1

Bolt, Hex

0450701

$1.49

2

Shield, Heat

0450611

Unavailable

3

BOLT, HEX

0450298

$2.39

4

Support, Heat Shield

0450612

Unavailable

5

Mudflap, RH

0450610

$21.79

6

Footrest, LH

0450607

Unavailable

7

Bolt, Hex, Washer Face

0450340

Unavailable

8

Footrest, RH

0450608

Unavailable

9

Mudflap, LH

0450609

Unavailable

10

Screw, Tapping

0450676

$1.59

11

Nut, Lock

0450823

Unavailable

12

Washer, Plain

0450743

$1.75

13

Bolt, Phillips

0450822

$0.79

14

Washer, Plain

0450879

Unavailable

15

NUT, LOCK

0450808

$2.39

16

Cap, Rubber

0450321

$3.19

16

Cap, Rubber

0450321

$3.19

17

Valve, Grease

0450320

$5.59

17

Valve, Grease

0450320

$5.59

18

RUBBER, DUSTPROOF

0450317

$6.39

18

RUBBER, DUSTPROOF

0450317

$6.39

19

Seat, Grease Contain

0450314

$3.99

19

Seat, Grease Contain

0450314

$3.99

20

Seat, Grease Contain

0450313

$3.99

20

Seat, Grease Contain

0450313

$3.99

21

COVER, WATERPROOF

0450316

Unavailable

21

COVER, WATERPROOF

0450316

Unavailable

22

Arm, Suspension, LH CA

0450902

Unavailable

22

Arm, Suspension, LH CC

0451004

Unavailable

22

Arm, Suspension, LH CB

0450981

Unavailable

23

Bolt, Hex, Washer Face

0450820

$5.59

23

Bolt, Hex, Washer Face

0450820

$5.59

24

Bushing

0450288

$8.79

24

Bushing

0450288

$8.79

25

NUT, FLANGE

0450249

$3.99

26

Arm, Suspension, RH CA

0450901

Unavailable

26

Arm, Suspension, Red, RH CC

0451003

Unavailable

26

Arm, Suspension, RH CB

0450980

Unavailable
