Description

Price

1

Nut, Cable Adjust

0450120

$2.39

2

Gasket

0450847

Unavailable

3

Plug

0451014

$1.99

4

Tube, Carburetor

0451013

$3.99

5

Screw Set, Air Adjust

0450103

$36.41

6

Screw Set, Throttle

0450114

Unavailable

7

Jet, Pilot

0450101

Unavailable

8

Nozzle, Needle

0450093

Unavailable

9

Nozzle, Main

0450097

Unavailable

10

Float, Carb

0450976

$59.99

11

Pin, Float

0450118

$10.51

12

Bolt, Pan, Phillips

0450086

$5.59

12

Bolt, Pan, Phillips

0450086

$5.59

13

Tube, Overflow

0450099

$9.70

14

Plug, Drain

0450105

$10.39

15

Bolt, Pan, Phillips

0450108

Unavailable

16

Valve Set, Needle

0450895

$61.85

17

Seal, Float Chamber

0450095

$11.32

18

Asm., Carburetor (Incl. 1-24)

0450924

Unavailable

19

Nozzle, Choke

0450923

Unavailable

20

Ring, Oil

0450112

Unavailable

21

Washer, Plain

0450107

Unavailable

22

Bolt, Pan, Phillips

0450106

$5.99

23

Plunger, Starter (Incl. 17)

0450110

Unavailable

24

Valve, Throttle

0450089

$53.59

25

Needle Set

0450090

Unavailable

26

Spring, Throttle Stop

0450848

$10.63

27

Washer, Spring

0450087

Unavailable

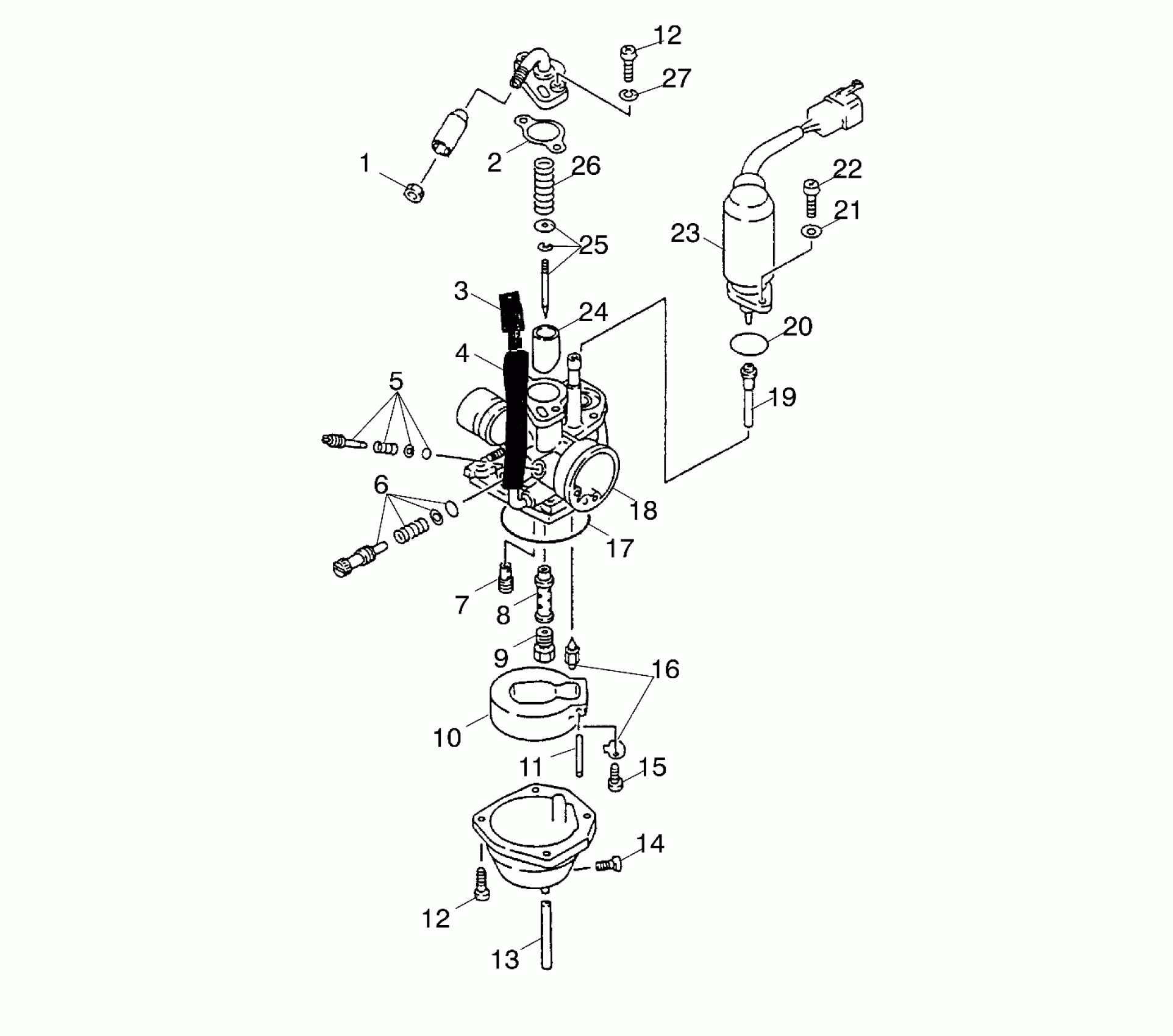

Polaris SCRAMBLER 90 - A02EA09CA CARBURETOR - A02EA09CA/CB/CC (4970857085A08) Diagram

Nut, Cable Adjust

Gasket

Plug

Tube, Carburetor

Screw Set, Air Adjust

Screw Set, Throttle

Jet, Pilot

Nozzle, Needle

Nozzle, Main

Float, Carb

Pin, Float

Bolt, Pan, Phillips

Bolt, Pan, Phillips

Tube, Overflow

Plug, Drain

Bolt, Pan, Phillips

Valve Set, Needle

Seal, Float Chamber

Asm., Carburetor (Incl. 1-24)

Nozzle, Choke

Ring, Oil

Washer, Plain

Bolt, Pan, Phillips

Plunger, Starter (Incl. 17)

Valve, Throttle

Needle Set

Spring, Throttle Stop

Washer, Spring
