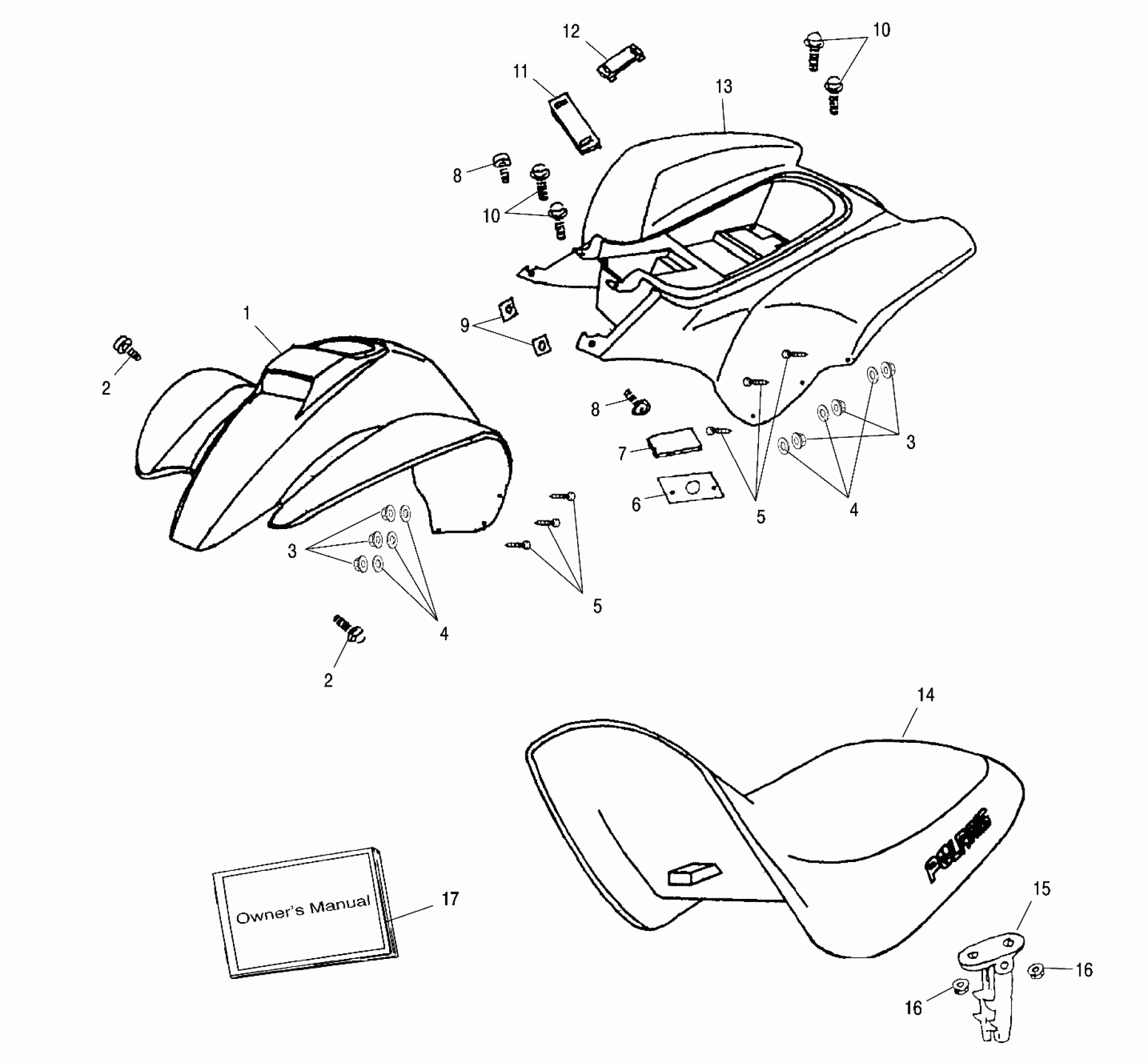

Polaris SCRAMBLER 90 - A02EA09CA CAB/SEAT - A02EA09CA/CB/CC (4970857085B04) Diagram

#

Description
Price

1

Cab, Front (Red) CA

0450619

Unavailable

1

Cab, Front (Blue) CB

0450982

Unavailable

1

Cab, Front, Yellow CC

0451005

Unavailable

2

Bolt, Hex, Washer Face

0450824

$2.38

2

Bolt, Hex, Washer Face

0450824

$2.38

3

Nut, Lock

0450741

$3.17

3

Nut, Lock

0450741

$3.17

4

Washer, Plain

0450710

$1.19

4

Washer, Plain

0450710

$1.19

5

Bolt, Phillips

0450667

$5.56

5

Bolt, Phillips

0450667

$5.56

6

Pad, Protector

0450345

$44.51

7

Rubber, Battery

0450346

$2.41

8

Bolt, Pan

0450297

$4.76

8

Bolt, Pan

0450297

$4.76

9

Nut, U-Plate

0450342

$4.76

10

Bolt, Hex

0450340

$3.97

10

Bolt, Hex

0450340

$3.97

11

Strap, Battery

0450897

$6.46

12

Strap, Battery, Tool Box

0450898

$5.65

13

Cab, Rear (Red)CA

0450620

Unavailable

13

Cab, Rear (Blue)CB

0450983

Unavailable

13

Cab, Rear, Yellow CC

0451006

Unavailable

14

Asm., Seat (Black)CA

0450355

Unavailable

14

Asm., Seat, Red/Black CC

0451007

Unavailable

14

Asm., Seat (Black/Blue/Yellow)CB

0450984

Unavailable

15

Hook, Seat

0450356

$32.37

16

NUT, FLANGE, HEX

0450880

$3.97

16

NUT, FLANGE, HEX

0450880

$3.97

17

Manual, Owner's, 2002 Youth ATV

9917080

$27.99
