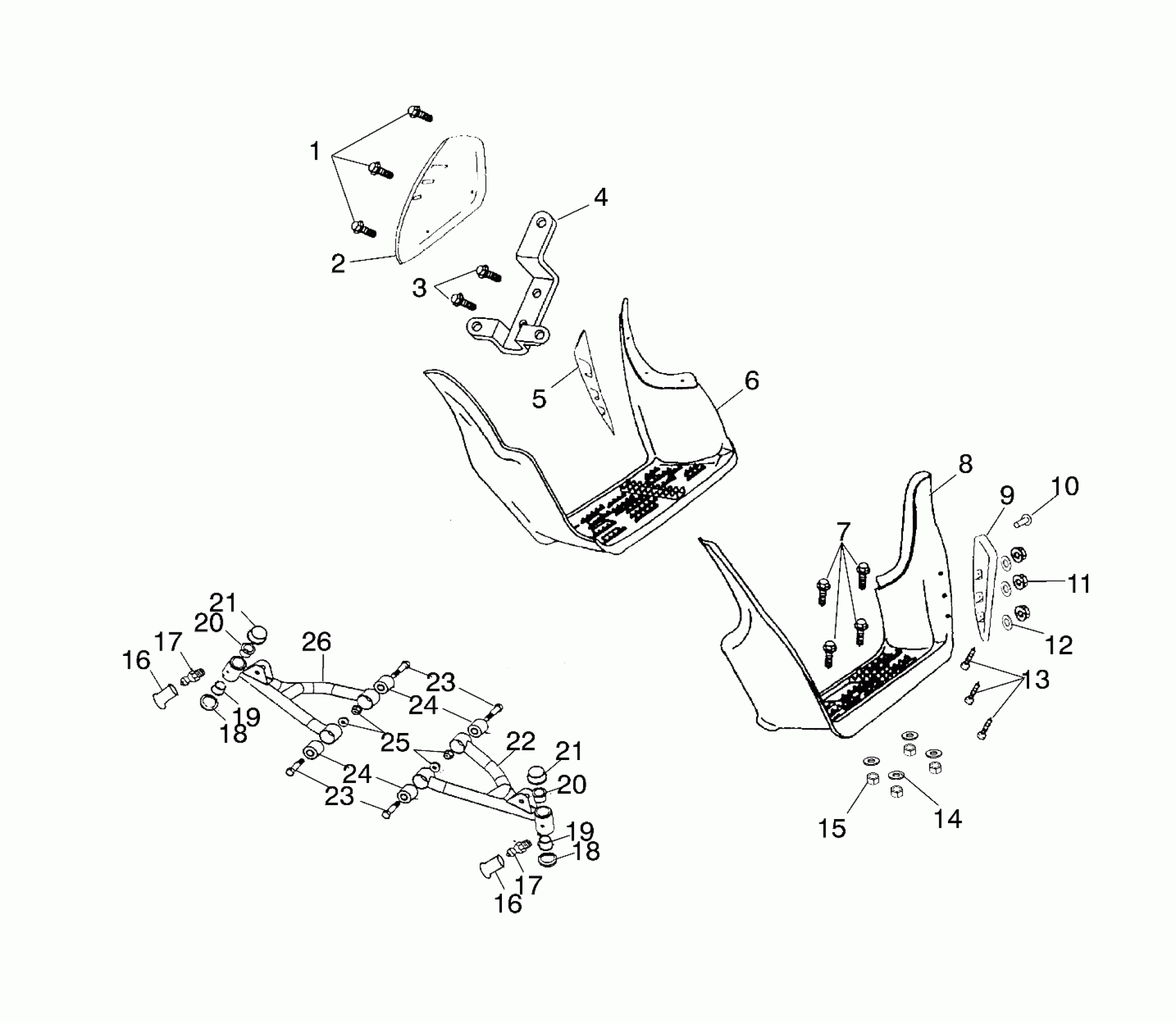

Polaris SCRAMBLER 90 - A01EA09CA SWING ARM / FOOTREST - A01EA09CA (4964326432B003) Diagram

#

Description
Price

1

Bolt, Hex

0450701

$1.19

2

Shield, Heat

0450611

Unavailable

3

BOLT, HEX

0450298

$2.38

4

Support, Heat Shield

0450612

Unavailable

5

Mudflap, RH

0450610

$21.79

6

Footrest, LH

0450607

Unavailable

7

Bolt, Hex, Washer Face

0450340

$3.97

8

Footrest, RH

0450608

Unavailable

9

Mudflap, LH

0450609

Unavailable

10

Screw, Tapping

0450676

$1.59

11

Nut, Lock

0450823

Unavailable

12

Washer, Plain

0450743

$1.20

13

Bolt, Phillips

0450822

Unavailable

14

Washer, Plain

0450879

Unavailable

15

NUT, LOCK

0450808

$2.38

16

Cap, Rubber

0450321

$3.22

16

Cap, Rubber

0450321

$3.22

17

Valve, Grease

0450320

$6.46

17

Valve, Grease

0450320

$6.46

18

RUBBER, DUSTPROOF

0450317

$6.46

18

RUBBER, DUSTPROOF

0450317

$6.46

19

Seat, Grease Contain

0450314

$3.97

19

Seat, Grease Contain

0450314

$3.97

20

Seat, Grease Contain

0450313

$3.97

20

Seat, Grease Contain

0450313

$3.97

21

COVER, WATERPROOF

0450316

$7.27

21

COVER, WATERPROOF

0450316

$7.27

22

Arm, Suspension, LH

0450315

Unavailable

23

Bolt, Hex, Washer Face

0450820

$5.56

23

Bolt, Hex, Washer Face

0450820

$5.56

24

Bushing

0450288

$8.73

24

Bushing

0450288

$8.73

25

NUT, FLANGE

0450249

$3.97

26

Arm, Suspension, RH

0450311

Unavailable
