Partiron

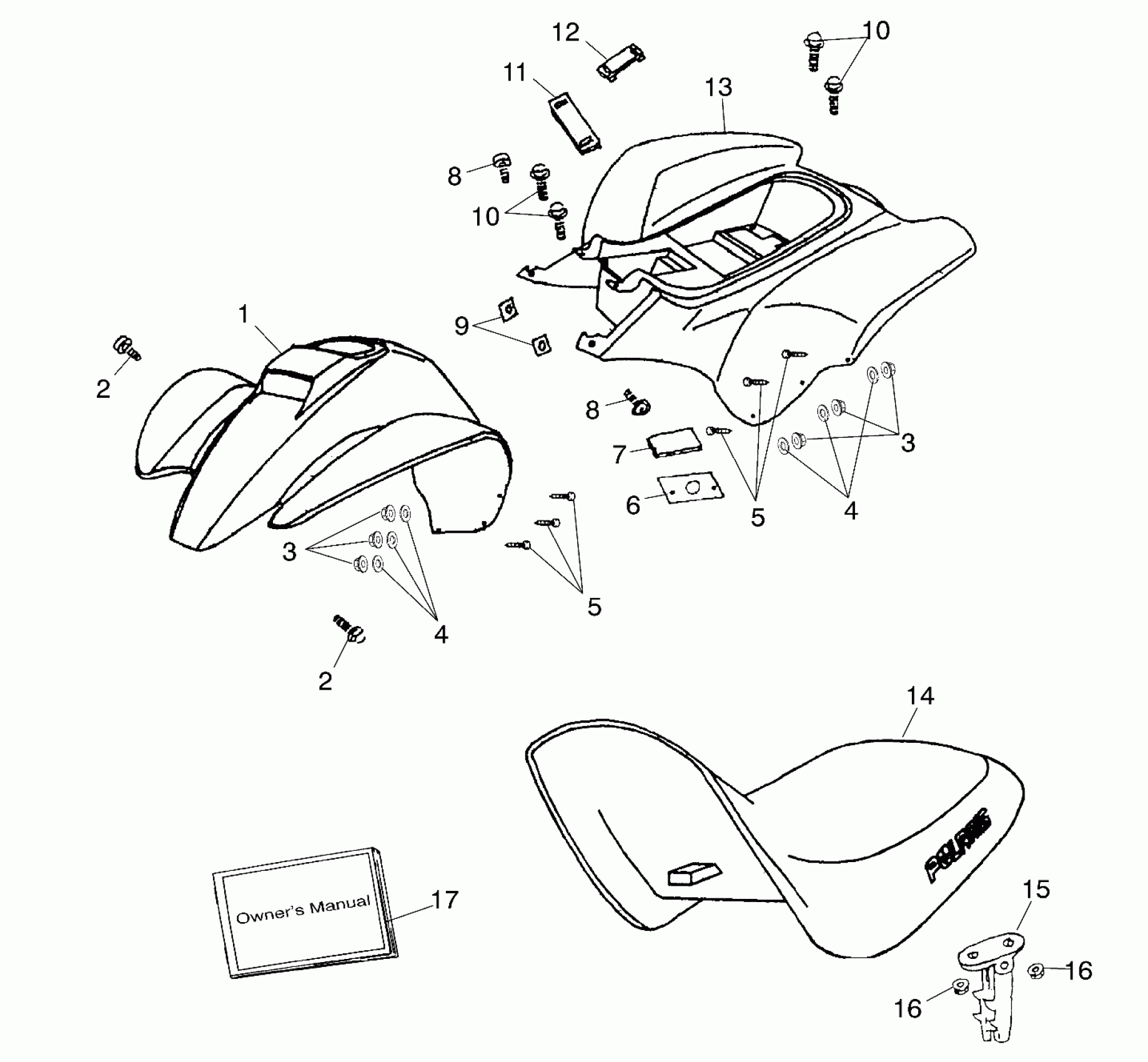

Polaris SCRAMBLER 90 - A01EA09CA FENDER / SEAT - A01EA09CA (4964326432B004) Diagram

#

Description
Price

1

Fender, Front

0450619

Unavailable

2

Bolt, Hex, Washer Face

0450824

$2.39

2

Bolt, Hex, Washer Face

0450824

$2.39

3

Nut, Lock

0450741

$3.19

3

Nut, Lock

0450741

$3.19

4

Washer, Plain

0450710

$1.49

4

Washer, Plain

0450710

$1.49

5

Bolt, Phillips

0450667

$5.59

5

Bolt, Phillips

0450667

$5.59

6

Pad, Protector

0450345

$39.99

7

Rubber, Battery

0450346

$2.39

8

Bolt, Pan

0450297

$4.79

8

Bolt, Pan

0450297

$4.79

9

Nut, U-Plate

0450342

$4.79

10

Bolt, Hex

0450340

Unavailable

10

Bolt, Hex

0450340

Unavailable

11

Band, Rubber (Battery)

0450343

Unavailable

12

Band, Rubber (Tool Box)

0450621

$5.40

13

Fender, Rear

0450620

Unavailable

14

Asm., Seat

0450355

Unavailable

15

Hook, Seat

0450356

$28.32

16

NUT, FLANGE, HEX

0450880

$3.99

16

NUT, FLANGE, HEX

0450880

$3.99

17

Manual, Owner's, 2001 Youth ATV

9916424

$28.99
