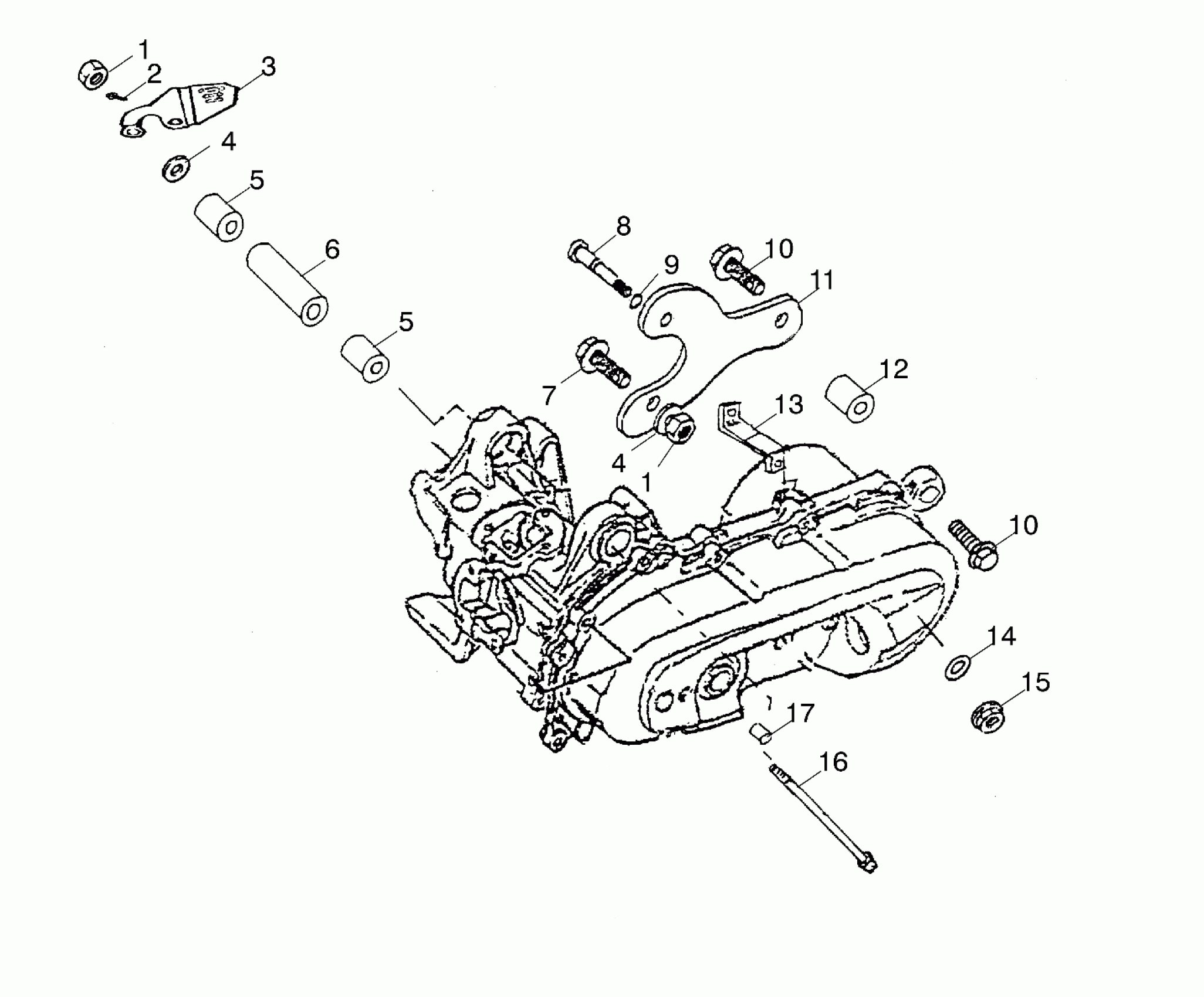

Polaris SCRAMBLER 90 - A01EA09CA ENGINE BRACKET - A01EA09CA (4964266426A014) Diagram

#

Description
Price

1

Nut, Hex

0450271

$2.19

1

Nut, Hex

0450271

$2.19

2

BOLT, HEX

0450298

$2.39

3

Heat Shield B

0450819

Unavailable

4

Washer

0450286

$5.59

4

Washer

0450286

$5.59

5

Bushing, Rubber, Front

0450284

Unavailable

5

Bushing, Rubber, Front

0450284

Unavailable

6

Tube, Fixed, Front

0450283

Unavailable

7

Bolt, Hex

0450270

$3.39

8

Shaft, Fixed

0450266

Unavailable

9

O-Ring

0450709

$4.99

10

Bolt, Hex, Washer Face

0450684

$4.79

10

Bolt, Hex, Washer Face

0450684

$4.79

11

Bracket, Engine

0450269

Unavailable

12

Bushing, Rubber

0450132

Unavailable

13

Plate, Fixed, Oil Tank

0450287

$7.43

14

Washer

0450192

$3.19

15

Nut, Flange, Hex

0450268

$1.49

16

Bolt, Hex

0450285

$11.43

17

Collar

0450278

$6.23
