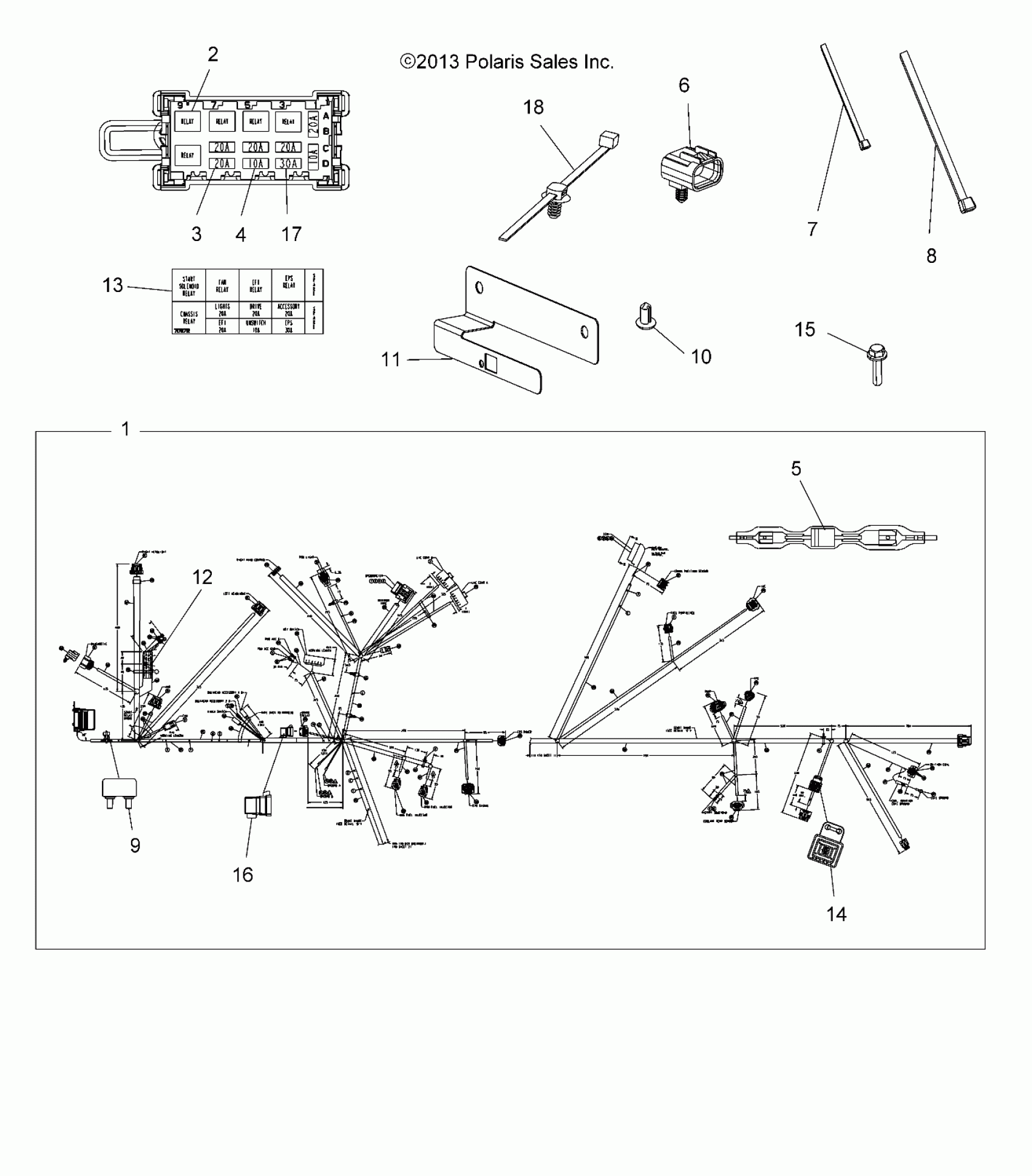

Polaris SCRAMBLER 850 XP HO/EPS - A14GH85AD/EAI ELECTRICAL, HARNESS, EPS - A14GH8EAI (49ATVHARNESS14SCRAM850) Diagram

COVER-RELAY/FUSE CENTER

5438758

$11.32

KIT, HARNESS, TPS

2878498

$113.32

KIT, HARNESS, ENGINE TEMP

2878496

$59.99

HARNESS, MAIN, EPS [INCL. 1-6,9,12-17, ALL KITS, COVER]

2412562

$1,082.39

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

FUSE-PARK,20 AMP

2434017

Unavailable

FUSE-IGNITION,10 AMP

2434016

$4.79

DIODE, 6AMP

2411035

$51.99

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

BREAKER-CIRCUIT,20 AMP,SEALED

2410881

$72.84

CLIP, PUSH ON

7670125

$7.99

BRACKET, FUSE BLOCK

5257967

Unavailable

Kit, Fusible Link, 1.0 mm

2202670

$35.99

Kit, Fusible Link, .8 MM

2202607

$39.99

LABEL, FUSE BOX

7178712

Unavailable

MODULE, RESISTOR

4014055

Unavailable

SCREW

7519145

$3.99

KIT, RELAY, EPS, REPAIR [INCL. 4010725, WIRE HARNESS, REPAIR, CONNECTORS, SHRINK TUBES, INSTRUCTIONS]

2204853

$75.99

FUSE-MAIN,30 AMP

2434015

$7.19

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79
