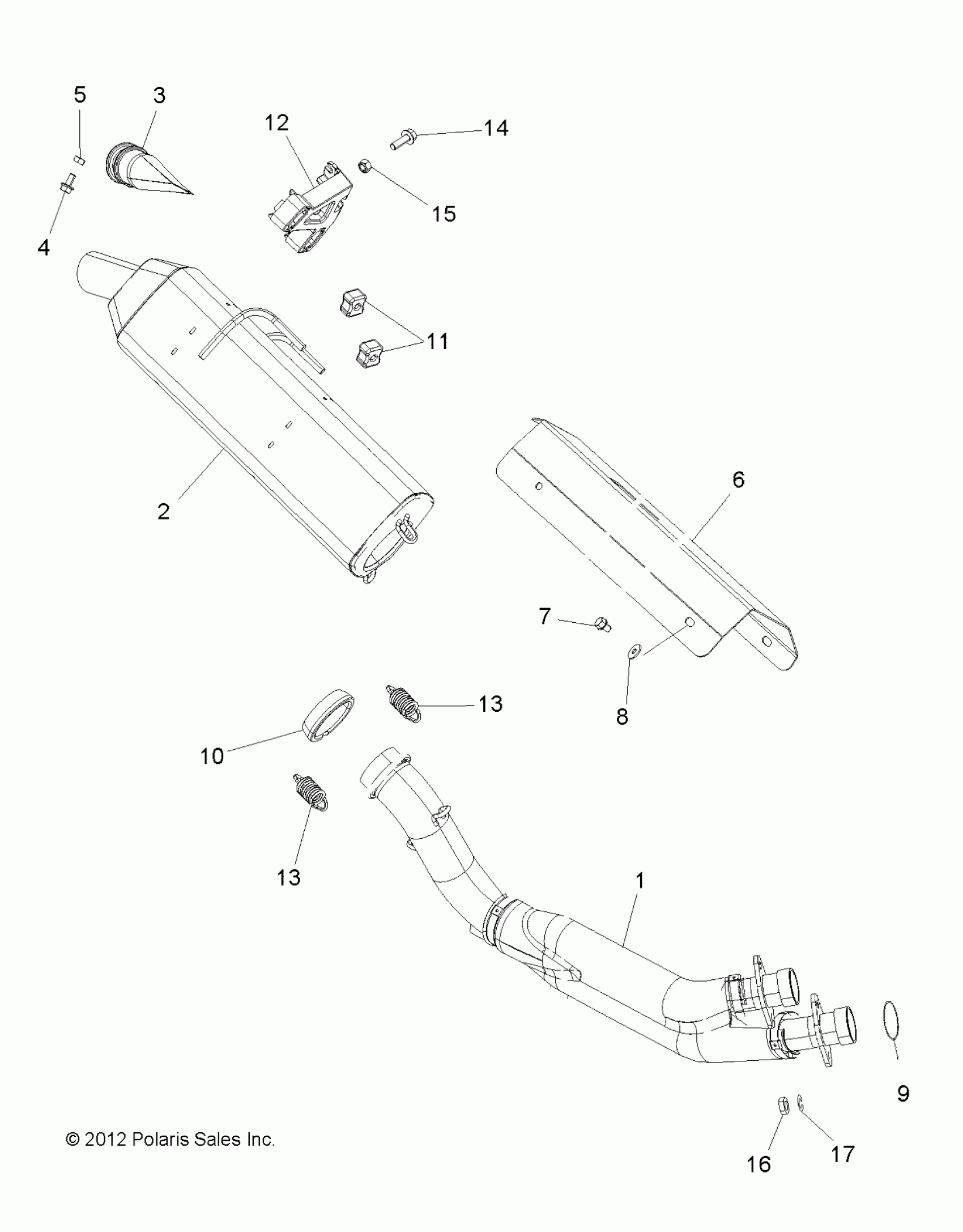

Polaris SCRAMBLER 850 (R09) - A16SVA85A2 ENGINE, EXHAUST - A16SVA85A2 (49ATVEXHAUST13850SCRAM) Diagram

#

Description
Price

1

CLAMP-HEAT SHIELD,EXHAUST [FRONT]

7081156

$7.14

1

CLAMP, HEAT SHIELD,EXHAUST [REAR]

7081579

$7.14

1

ASM., EXHAUST PIPE [INCL PIPE, SHIELDS, CLAMPS]

1262302

Unavailable

1

SHIELD-EXHAUST,PRIMARY,FRNT,ML [OUTER SHIELD]

5254362

$189.99

1

SHIELD-EXHAUST,PRIMARY,BACK,ML [INNER SHIELD]

5254363

Unavailable

2

SILENCER, EXHAUST

1262299

$453.32

3

WELD-SPARK ARRESTOR,QT

1262239

$48.56

4

SCREW

7517257

$9.52

5

NUT-HEX-M6X1.0 8 SPC

7547120

$5.22

6

SHIELD, HEAT, EXHAUST, SILENCER

5257321

$68.79

7

SCREW

7518490

$1.19

8

Washer

7555935

$2.38

9

GASKET, EXHAUST, SEALING

5255577

$8.89

10

SEAL-EXHAUST

3610204

$36.41

11

GROMMET, SILENCER MOUNT

5413383

$4.76

12

BRACKET, EXHAUST, SUPPORT

5632668

$36.41

13

SPRING-EXHAUST

7041789

$8.89

13

SPRING-EXHAUST

7041789

$8.89

14

SCREW

7518548

$1.59

15

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

16

NUT

7547076

$2.60

17

Washer, Lock

7556111

$1.59
