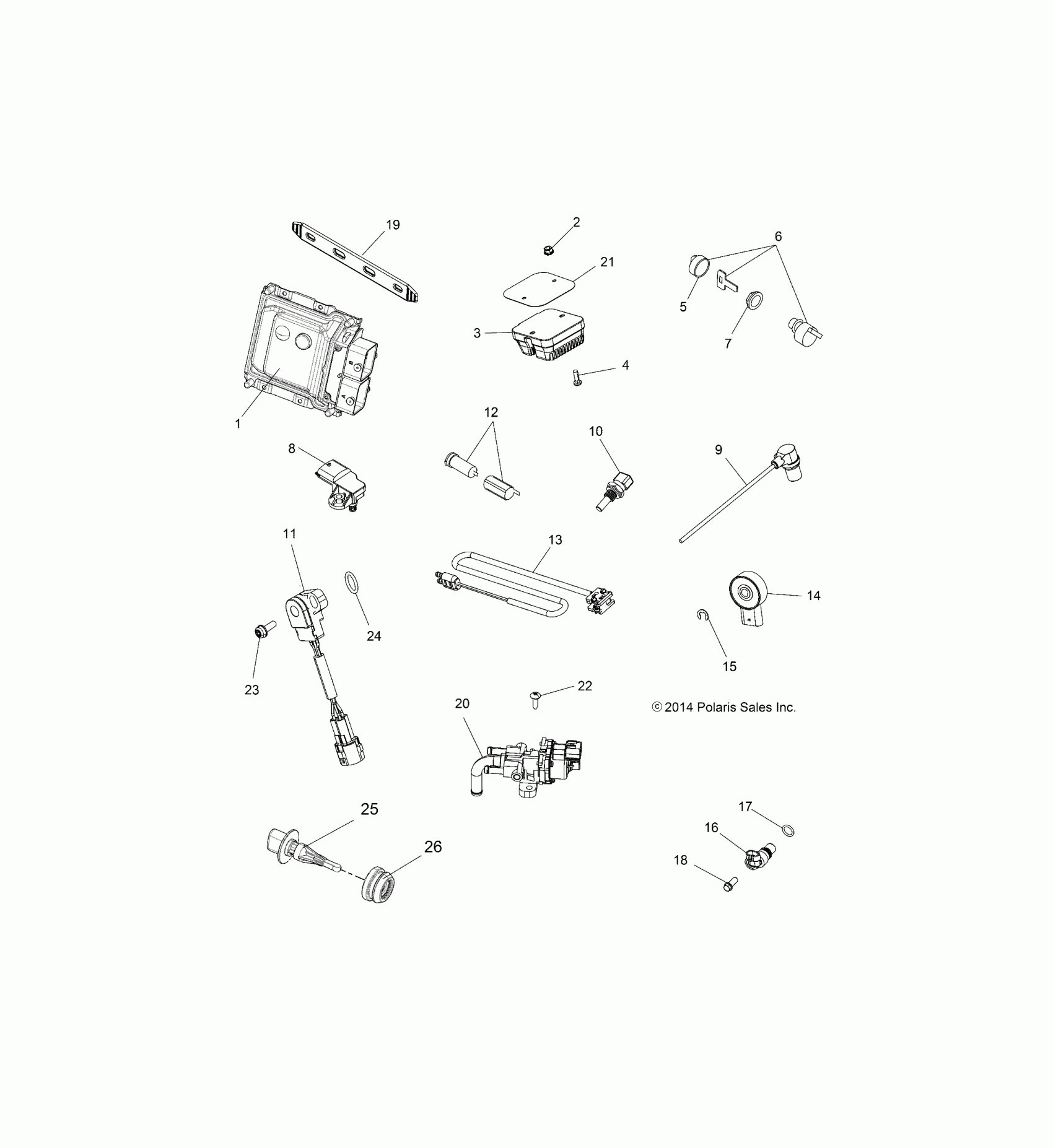

Polaris SCRAMBLER 850 (R09) - A16SVA85A2 ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A16SVA85A2 (49ATVSWITCHES15SCRAM850) Diagram

#

Description
Price

1

ECM

4012838

$440.69

2

NUT-M6 FLANGE,NYLOC

7547274

$1.49

3

REGULATOR, VOLTAGE

4012678

$263.99

4

SCREW

7519121

$3.99

5

KEY SWITCH KEY COVER

5433534

$12.35

6

SWITCH, KEY, 3 POSITION [INCL. 5]

4012165

$104.24

7

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

8

SENSOR-TMAP DSS3-TF

2411528

$93.08

8

SCREW [USE W/2411528]

7518576

$3.19

9

SCREW

7518548

$1.59

9

Sensor, Crank Position

2411589

$79.99

10

SENSOR-THERMISTER

4010644

$87.13

11

SENSOR, THROTTLE POSITION

2412634

$243.99

12

RECEPTACLE, POD, 12 V

4010638

$24.27

13

KIT, BRAKE LIGHT SWITCH

2202794

$72.84

14

SWITCH [GEAR POSITION]

3233835

Unavailable

15

RING, RETAINING

3233834

$10.39

16

SENSOR-SPEED,TRANS

4013908

Unavailable

17

O-RING

3234302

$7.19

18

SCREW

3234329

Unavailable

19

STRAP, ECU

5414193

$27.99

20

KIT, HARNESS, IAC

2878507

$135.99

20

VALVE, IAC

4013313

$175.99

21

COVER, VOLTAGE REGULATOR

5253294

$10.39

22

SCREW

7519045

$3.19

23

SCREW

3131010

$4.79

24

O-RING

3131729

$11.99

25

Sensor, Air Temp

2410687

$143.99

26

Grommet, Air Temp Sensor

5436346

$4.79
