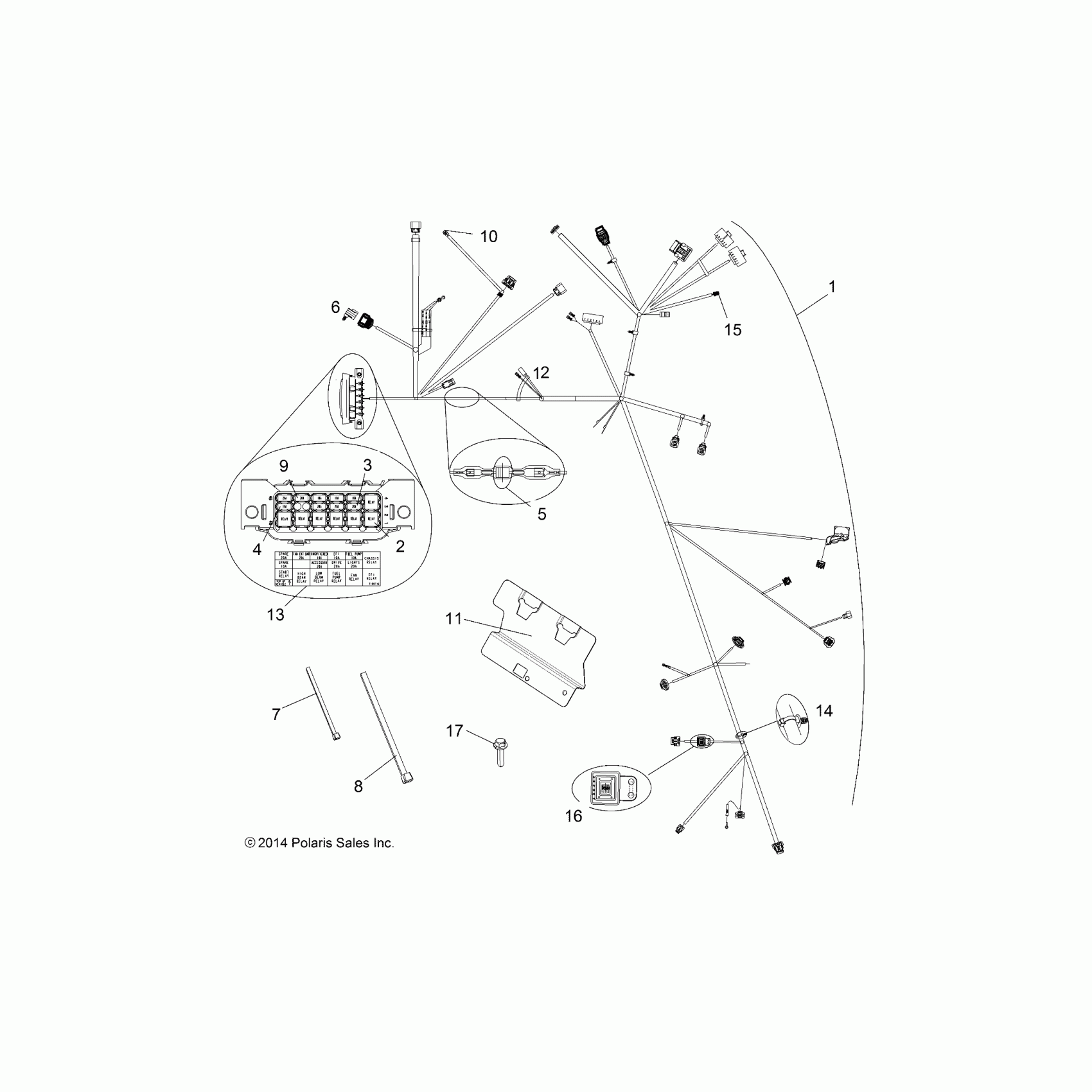

Polaris SCRAMBLER 850 (R08) - A18SVA85B5 ELECTRICAL, HARNESS - A18SVA85B5 (49ATVHARNESS15SCRAM850) Diagram

#

Description
Price

1

HARNESS, MAIN [INCL. 1-6,9,12-13, ALL KITS, COVER]

2412801

Unavailable

1

COVER, FUSE BOX

4015011

$60.70

1

SEAL, FUSE CENTER

5415598

$8.73

2

RELAY-SPST,SERIES 303,SEALED

4011283

$36.41

3

FUSE-PARK,20 AMP

2434017

$8.08

4

FUSE-IGNITION,10 AMP

2434016

$5.65

5

DIODE, 6AMP

2411035

$56.65

6

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

9

BREAKER-CIRCUIT,20 AMP

4011372

$44.51

10

CAP, WINCH CONTACTOR

4014891

$9.76

11

BRACKET, FUSE BLOCK

5258624

$32.37

11

FASTNER-PUSH-ON CLIP,.250

7670125

$7.99

12

Kit, Fusible Link, .8 MM

2202607

$39.68

12

Kit, Fusible Link, 1.0 mm

2202670

$44.99

13

LABEL, FUSE BOX

7180716

Unavailable

14

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

15

CAP, WINCH SWITCH

4014890

$10.65

16

MODULE, RESISTOR

4014055

$161.49

17

SCREW [MAIN HARNESS GROUND TO FRAME]

7519145

$3.97
