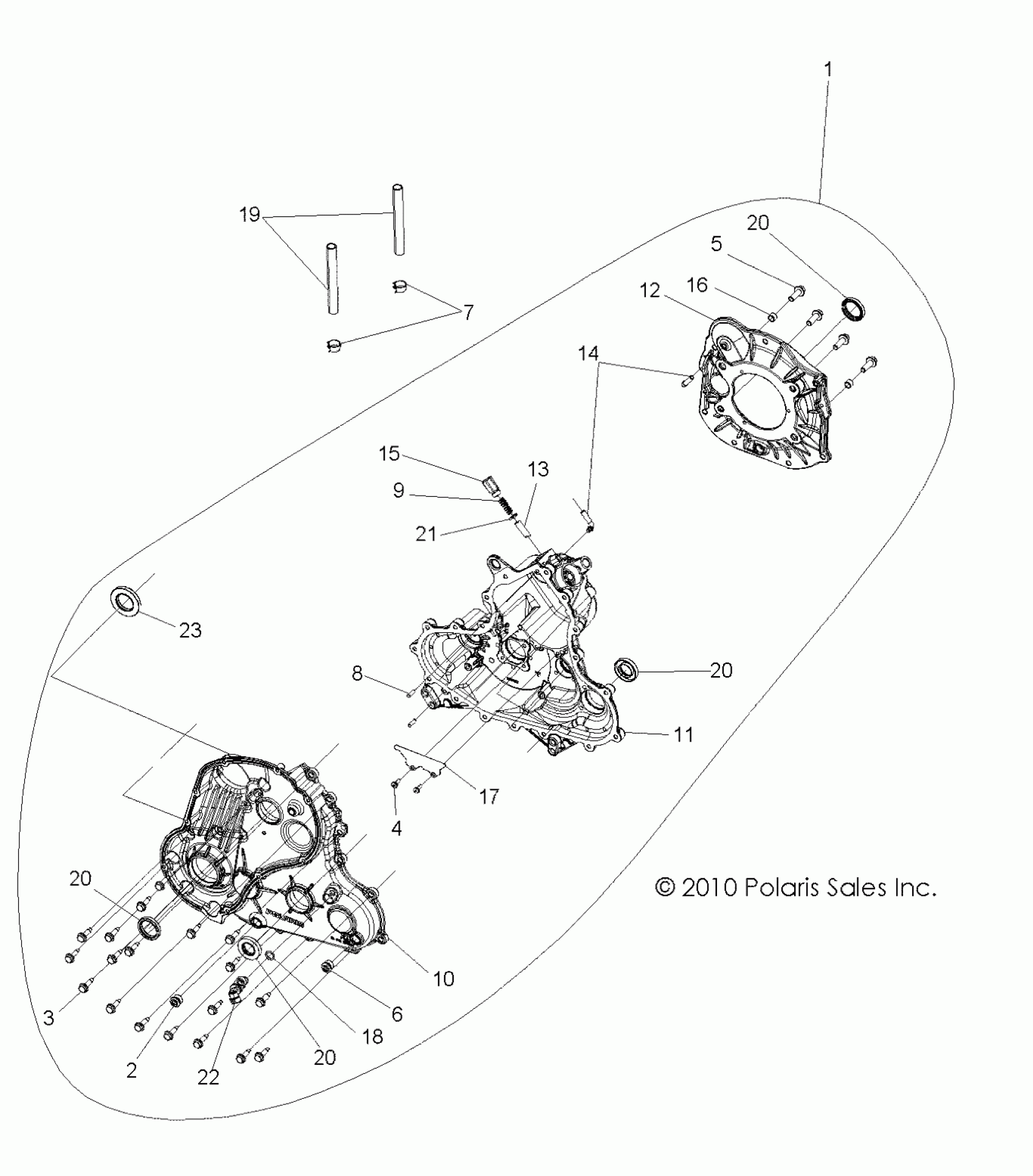

Polaris SCRAMBLER 850 (R08) - A18SVA85B5 DRIVE TRAIN, MAIN GEARCASE - A18SVA85B5 (49ATVGEARCASE1332847) Diagram

#

Description
Price

1

ASM., TRANSMISSION [INCL. ALL LESS 7,19]

1332848

$2,719.19

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

4

SCREW, TORX

3234309

$7.19

5

SCREW, HEX

3234634

$13.59

6

PLUG, M18 X 1.5

3234755

$27.99

7

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

8

PIN, DOWEL 6 X 20

3234330

$7.19

9

SPRING, COMPRESSION

3234790

$19.99

10

GEARCASE, GTO COVER

3234689

$351.99

11

GEARCASE, MAIN

3235428

$299.99

12

BELLHOUSING

3235196

$43.99

13

BULLET DETENT

3234695

$31.99

14

TUBE, VENT

3234230

$9.59

15

PLUG, DETENT

3234715

$35.99

16

PIPE, KNOCK

3234765

$12.79

17

Deflector, Oil

3234725

$12.79

18

O-RING

3234302

$7.19

19

Line, Fuel

8450040-600

Unavailable

20

SEAL, TRIPLE LIP

3234892

$35.99

20

SEAL, TRIPLE LIP

3234892

$35.99

20

SEAL, TRIPLE LIP

3234892

$35.99

20

SEAL, TRIPLE LIP

3234892

$35.99

21

O-RING

3234729

$13.75

22

SENSOR-SPEED,TRANS

4013908

Unavailable

23

SEAL, TRIPLE LIP

3234769

$43.99
