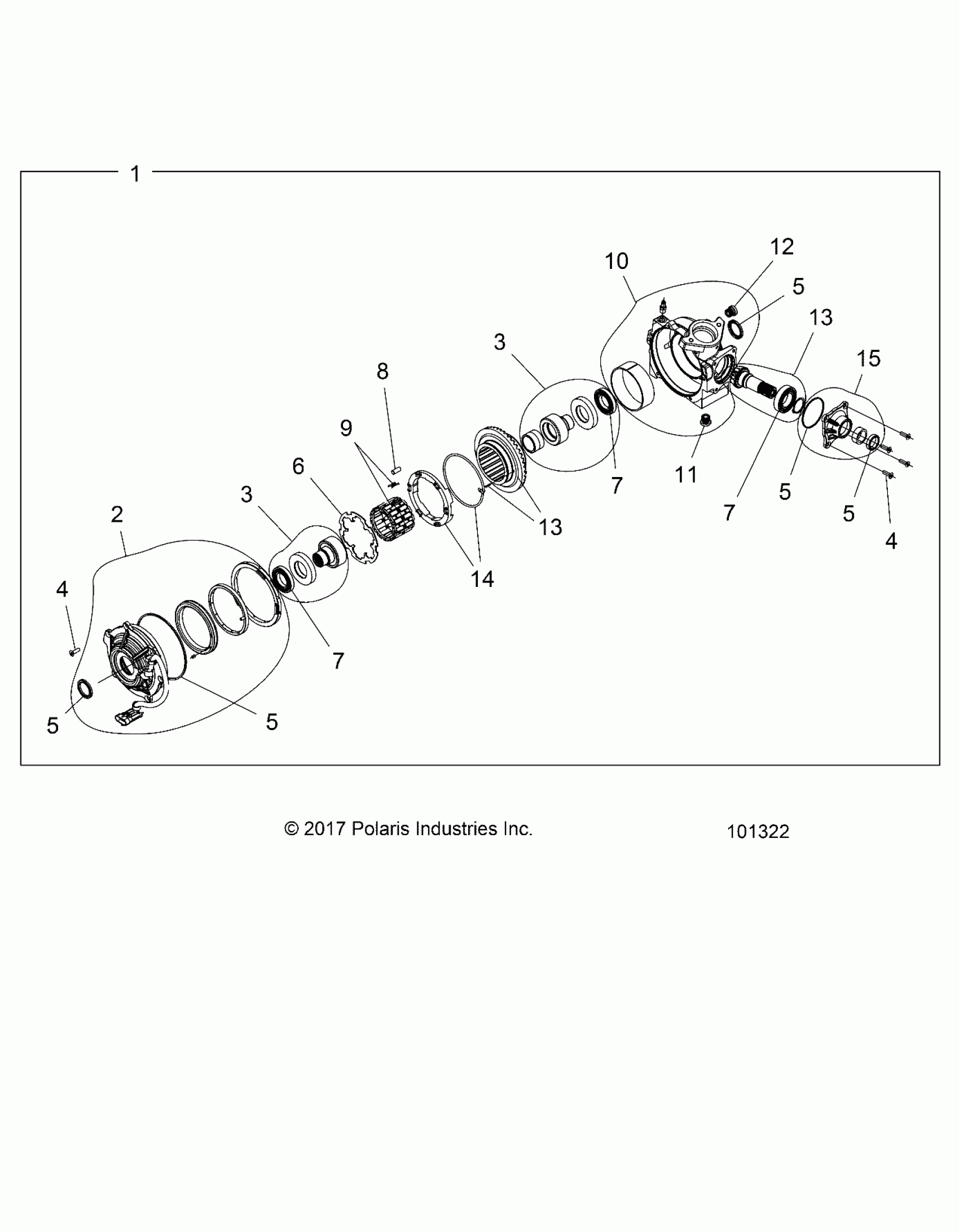

Polaris SCRAMBLER 850 (R08) - A18SVA85B5 DRIVE TRAIN, FRONT GEARCASE INTERNALS (TO 8/7/2017) Diagram

#

Description
Price

1

ASM-GEARCASE,FRONT [INCL. ALL]

1333920

Unavailable

2

ASSY, COVR OUTPUT [INCL. O-RING, 4WD COIL, SPACER, CLIP, INSERT, COVER, PIN, SEAL, WIRING]

3235634

Unavailable

3

KIT, HUB ASSEMBLY [INCL. BEARINGS, BUSHING, HUBS, SPACERS]

3235911

Unavailable

3

KIT, HUB ASSEMBLY [INCL. BEARINGS, BUSHING, HUBS, SPACERS]

3235911

Unavailable

4

KIT, FASTENERS [INCL. QTY 10 SCREWS]

3235433

$35.99

4

KIT, FASTENERS [INCL. QTY 10 SCREWS]

3235433

$35.99

5

COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]

3235434

Unavailable

5

COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]

3235434

Unavailable

5

COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]

3235434

Unavailable

5

COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]

3235434

Unavailable

5

COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]

3235434

Unavailable

6

PLATE-4WD ARMATURE

3236048

$107.99

7

BEARINGS [INCL. ALL BEARINGS]

3235435

$119.99

7

BEARINGS [INCL. ALL BEARINGS]

3235435

$119.99

7

BEARINGS [INCL. ALL BEARINGS]

3235435

$119.99

8

K-CLUTCH ROLLS [INCL. SET OF 24]

3235624

$153.41

9

ASM-ROLL CAGE [INCL. CAGE, QTY 24 CLIPS]

3235625

$163.99

10

ASM., GEARCASE [INCL. CASE, BUSHING, PLUGS, SEAL, VENT]

3235436

Unavailable

11

KIT-PLUG,DRAIN

2203738

$35.99

12

KIT-PLUG,FILL

2203739

$39.99

13

KIT, GEAR HOUSING & PINION GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR]

3235636

Unavailable

13

KIT, GEAR HOUSING & PINION GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR]

3235636

Unavailable

14

KIT-TORSION,SPRING AND RETAINER

3235712

$35.99

15

KIT, INPUT COVER [INCL. O-RING, COVER, BUSHING, SEAL]

3236143

$99.99
