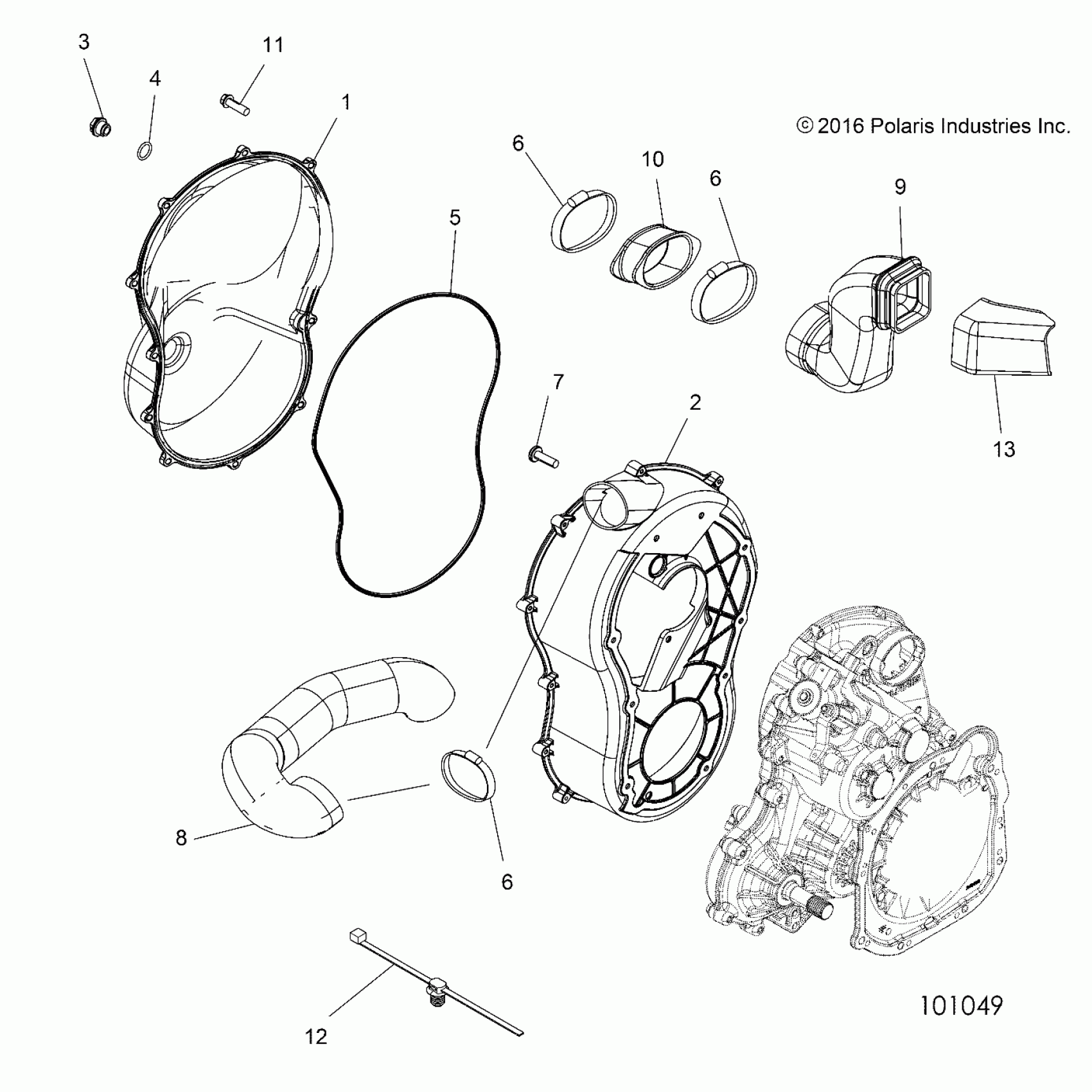

Polaris SCRAMBLER 850 (R08) - A18SVA85B5 BODY, CLUTCH COVER - A18SVA85B5 (101049) Diagram

#

Description

Price

1

ASM., COVER, OUTER [INCL. OUTER COVER,3,4]

2633919

$139.99

2

COVER, CLUTCH INNER

5438127

$167.99

3

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

4

O RING-.364X.504X.07

5410542

Unavailable

5

SEAL, COVER, CLUTCH

5521802

$34.74

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

7

SCR-M6X1.0X14,PN/TX

7520472

$3.19

8

DUCT-OUTLET,CLUTCH

5415566

$99.99

9

DUCT, AIR INLET

5436820

$43.99

10

Boot, Clutch, Inlet

5413177

$35.99

11

SCREW

7519849

$3.19

12

CLIP-DUCT,OUTLET

7082264

$7.99

13

BOOT, INLET, DUCT

5413516

$9.59
