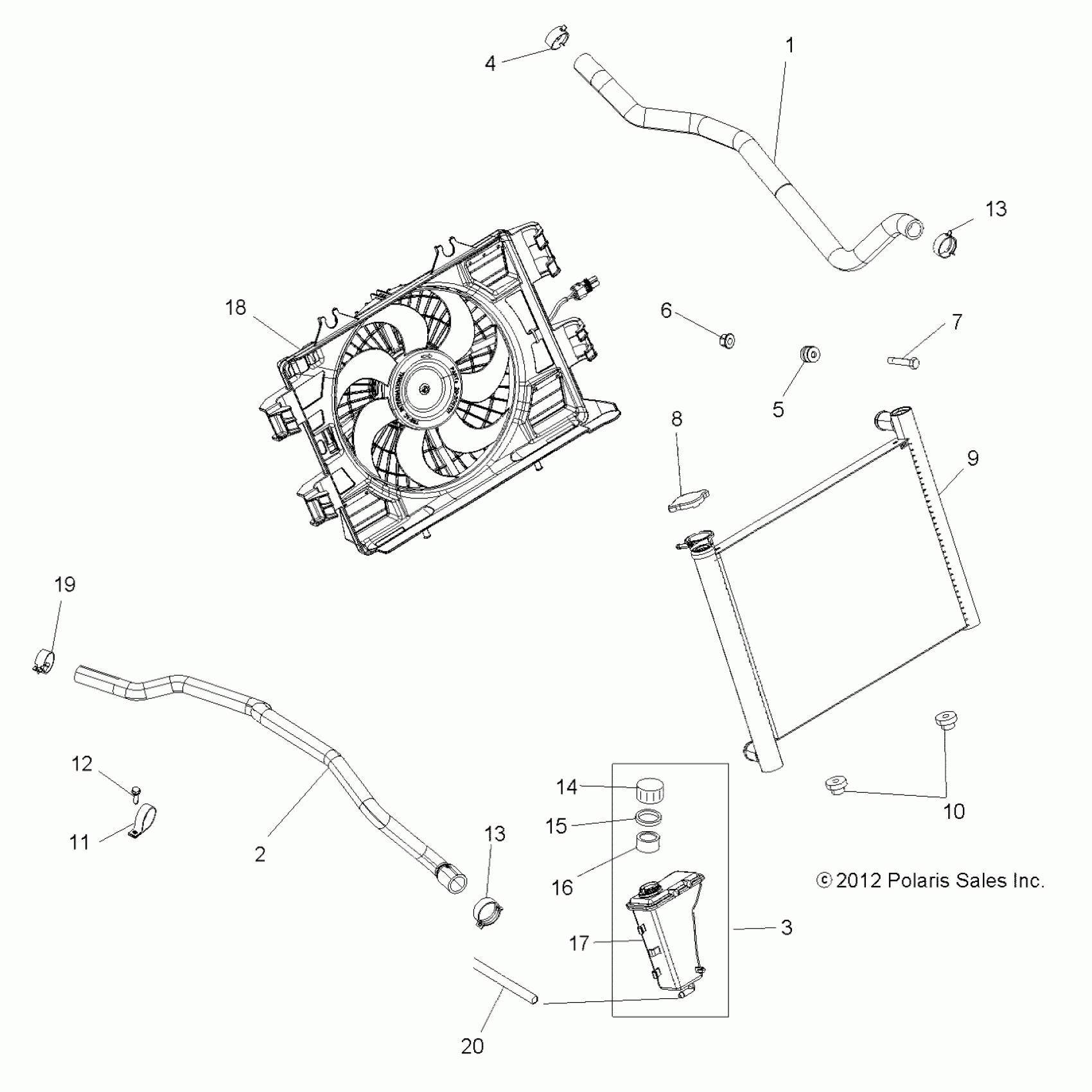

Polaris SCRAMBLER 850 48 (R05) - A19SVA85BG ENGINE, COOLING SYSTEM - A19SVA85BG (49ATVCOOL13850SCRAM) Diagram

#

Description
Price

1

HOSE, RADIATOR, ENGINE OUT

5414392

$51.99

2

HOSE, RADIATOR, ENGINE IN

5414391

$51.99

3

ASM., BOTTLE, COOLANT RECOVERY [INCL. 14-17,20]

1240406

$71.99

4

CLAMP, SPRINGBAND

7080844

$10.39

5

ASM., GROMMET AND INSERT

5413509

$15.99

6

NUT-M6 FLANGE,NYLOC

7547274

$1.49

7

SCREW

7519202

$3.99

8

CAP, PRESSURE

1240466

$55.99

9

RADIATOR

1240404

$428.99

9

ASM., RADIATOR [INCL. 3,5,8-10,18]

1240596

Unavailable

10

GROMMET, RADIATOR MOUNT, LOWER

5413510

$15.99

11

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

12

SCREW

7518513

$4.79

13

Clamp, Springband

7080843

$3.99

13

Clamp, Springband

7080843

$3.99

14

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

15

GASKET-OVERFLOW CAP

5810279

$2.41

16

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

17

BOTTLE, COOLANT RECOVERY

5437257

Unavailable

18

Fan

2411578

$300.14

19

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

20

LINE, COOLANT

8450128-27

$31.99
