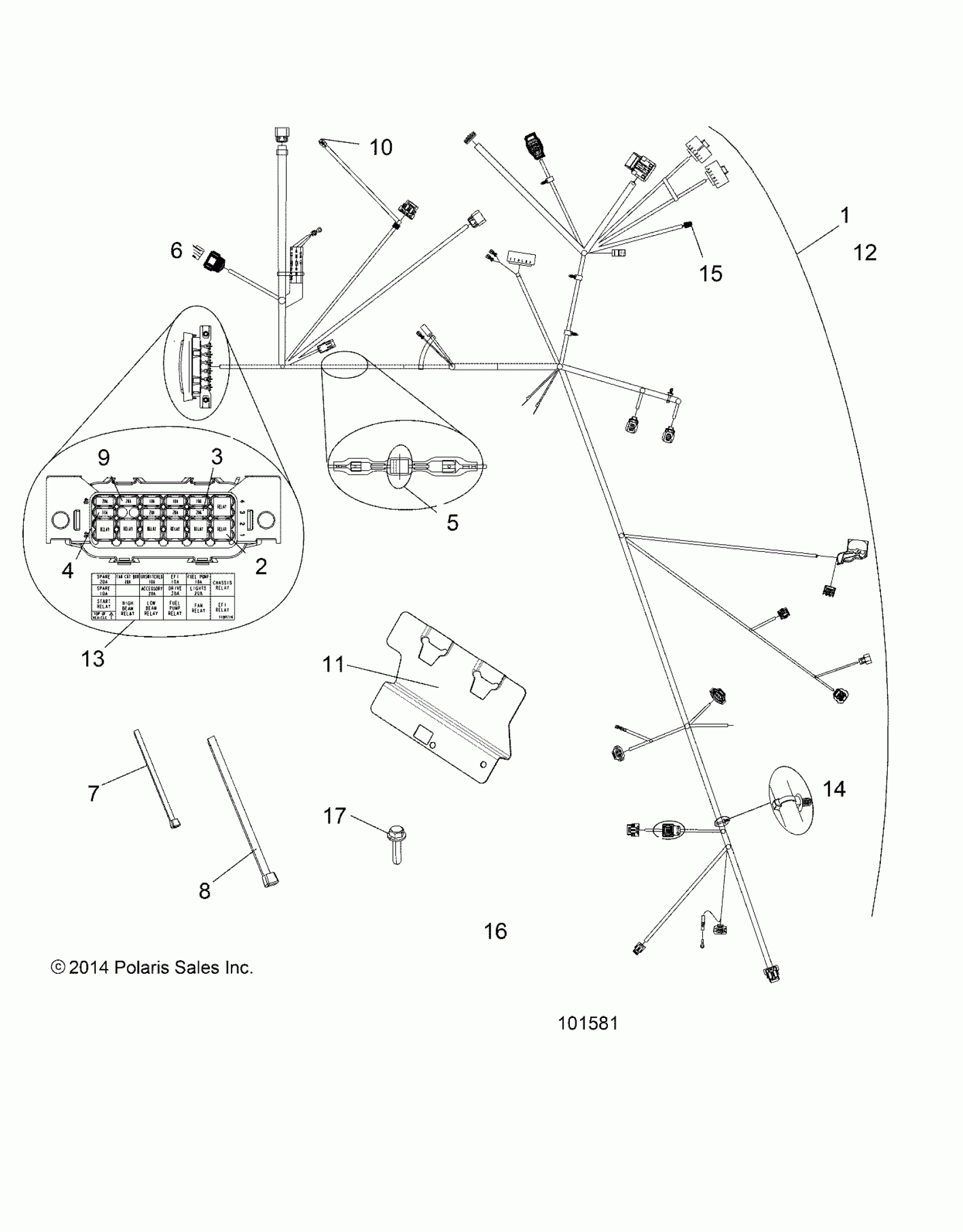

Polaris SCRAMBLER 850 48 (R05) - A19SVA85BG ELECTRICAL, HARNESS - A19SVA85BG (101581) Diagram

#

Description
Price

1

HARNESS-MAIN,SCRAMBLER 850 [INCL. 1-6,9,12-13, ALL KITS, COVER]

2414916

$890.39

1

COVER, FUSE BOX

4015011

$55.99

1

SEAL, FUSE CENTER

5415598

$8.79

2

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

3

FUSE-PARK,20 AMP

2434017

Unavailable

4

FUSE-IGNITION,10 AMP

2434016

$4.79

5

DIODE, 6AMP

2411035

$51.99

6

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

9

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

10

CAP, WINCH CONTACTOR

4014891

$7.99

11

BRACKET, FUSE BLOCK

5258624

$31.99

11

FASTNER-PUSH-ON CLIP,.250

7670125

$7.99

12

Kit, Fusible Link, .8 MM

2202607

$39.99

12

Kit, Fusible Link, 1.0 mm

2202670

$35.99

13

LABEL, FUSE BOX

7187070

Unavailable

14

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

15

CAP, WINCH SWITCH

4014890

$8.79

16

-------

-------

Unavailable

17

SCREW [MAIN HARNESS GROUND TO FRAME]

7519145

$3.99
