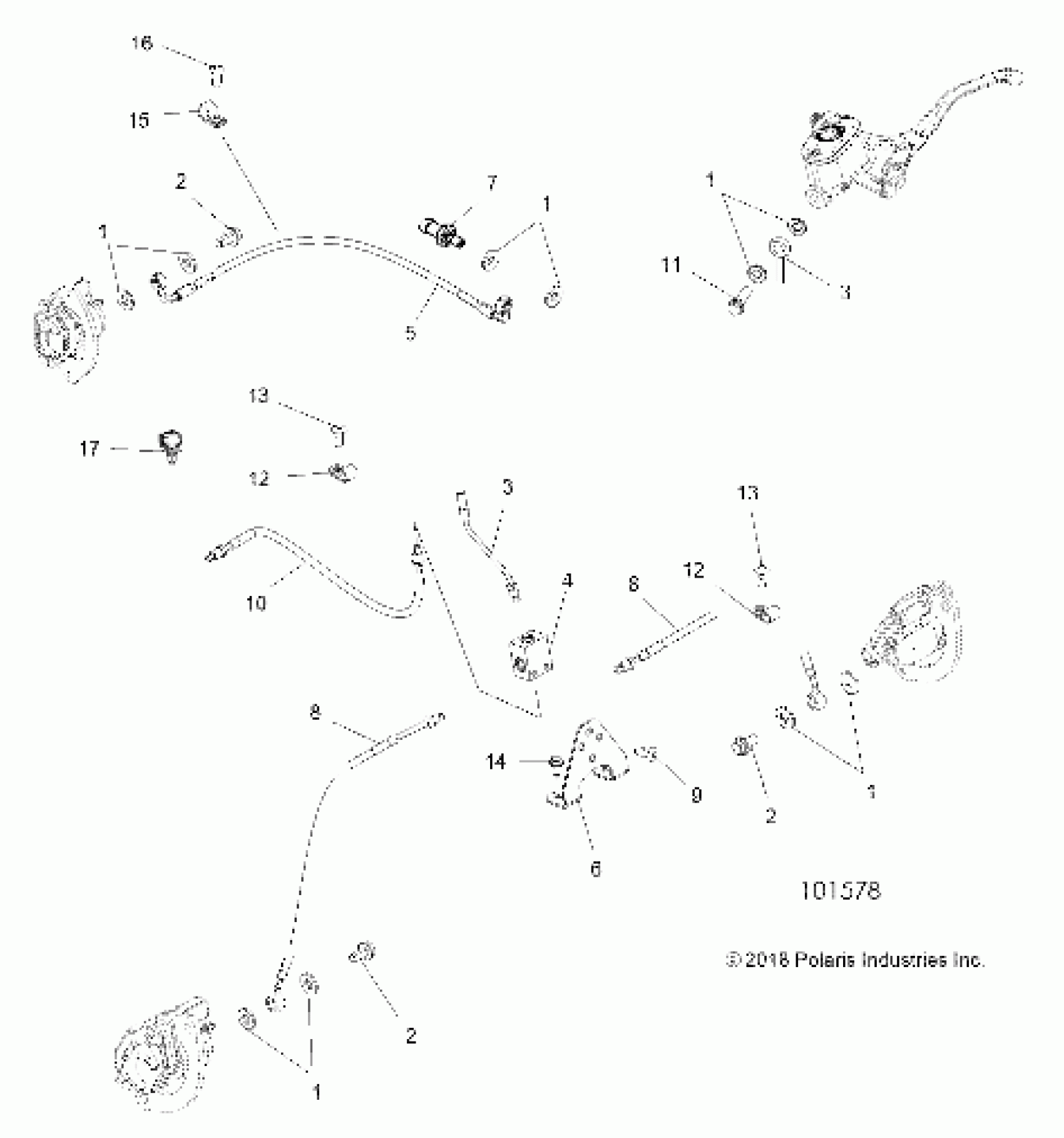

Polaris SCRAMBLER 850 48 (R05) - A19SVA85BG BRAKES, BRAKE LINES - A19SVA85BG (101578) Diagram

#

Description
Price

1

SEAL

5413212

$4.84

1

SEAL

5413212

$4.84

1

SEAL

5413212

$4.84

1

SEAL

5413212

$4.84

1

SEAL

5413212

$4.84

2

BOLT, BANJO

1910499

$5.56

2

BOLT, BANJO

1910499

$5.56

2

BOLT, BANJO

1910499

$5.56

3

LINE-BRK,MCT,34,30B,50F,240,G2

1913023

$84.98

3

LINE-BRK,MCT,34,30B,50F,240,G2

1913023

$84.98

3

LINE-BRK,MCT,34,30B,50F,240,G2

1913023

$84.98

4

FITTING, CROSS

7052372

$59.52

5

LINE, BRAKE, REAR

1911678

$125.46

6

BRACKET, JUNCTION BLOCK

5257768

$10.51

7

SWITCH-BRK,M10X1.25,SGL,NO RES

4017278

$83.33

8

LINE, BRAKE, FRONT

1911668

$80.94

9

SCREW

7512024

$4.76

10

LINE, BRAKE, JB TO FT MC

1911669

$84.98

11

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

12

CLAMP, WIRE/TUBE

7081246

$1.19

12

CLAMP, WIRE/TUBE

7081246

$1.19

13

SCREW

7518176

$4.76

13

SCREW

7518176

$4.76

14

BOLT

7518513

$4.76

15

CLAMP, CABLE

7080499

$5.56

16

RIVET

7621330

$1.19

17

CLIP, ROUTING

7670116

$5.56
