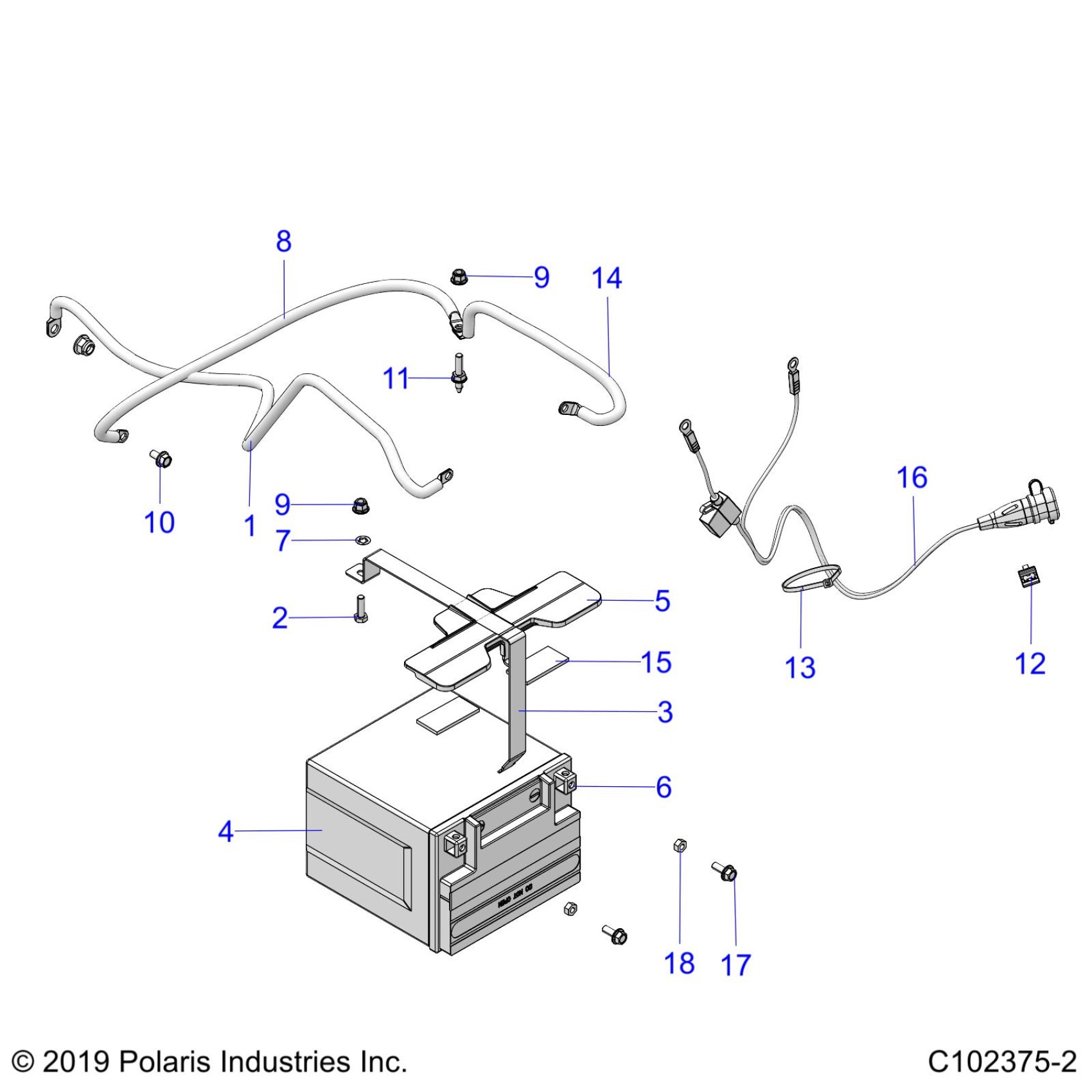

Polaris SCRAMBLER 850 48" (R04) - A20SVA85A3 ELECTRICAL, BATTERY - A20SVA85A3 (C102375-2) Diagram

#

Description
Price

1

CABLE, BATTERY/SOLENOID

4012710

$43.99

2

SCREW

7518925

$3.19

3

BRKT-BATTERY,30AH

5253600

$35.99

4

BATTERY-30AH,12 VOLT,AGM

4014609

$199.98

5

COVER, BATTERY

5438299

$14.39

6

BATTERY BOLT KIT [INCL. 17 &18]

2201357

$11.19

7

RETAINER-BOLT,1/4-20

7670154

$1.49

8

CABLE, BLACK

4012709

$31.99

9

NUT-M6 FLANGE,NYLOC

7547274

$1.49

9

NUT-M6 FLANGE,NYLOC

7547274

$1.49

10

SCR-HXFL-M6X1.0X12 8.8 ZOD P30

7519145

$3.99

11

STUD

7519333

$7.99

12

STRAP-CABLE TIEW/EDGECLIP3-6MM

7082073

$27.99

13

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

14

CABLE-BATT,6GA,BK,85,85,M6

4014525-360

$39.99

15

PAD-FOAM SHIM,TRUNK

5413465

$5.59

16

PLUG-HARNESS BATTERY CHARGE

2415060

$27.99

17

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

18

NUT-M6X1 HX R.HAND-Y

7546701

$3.99
