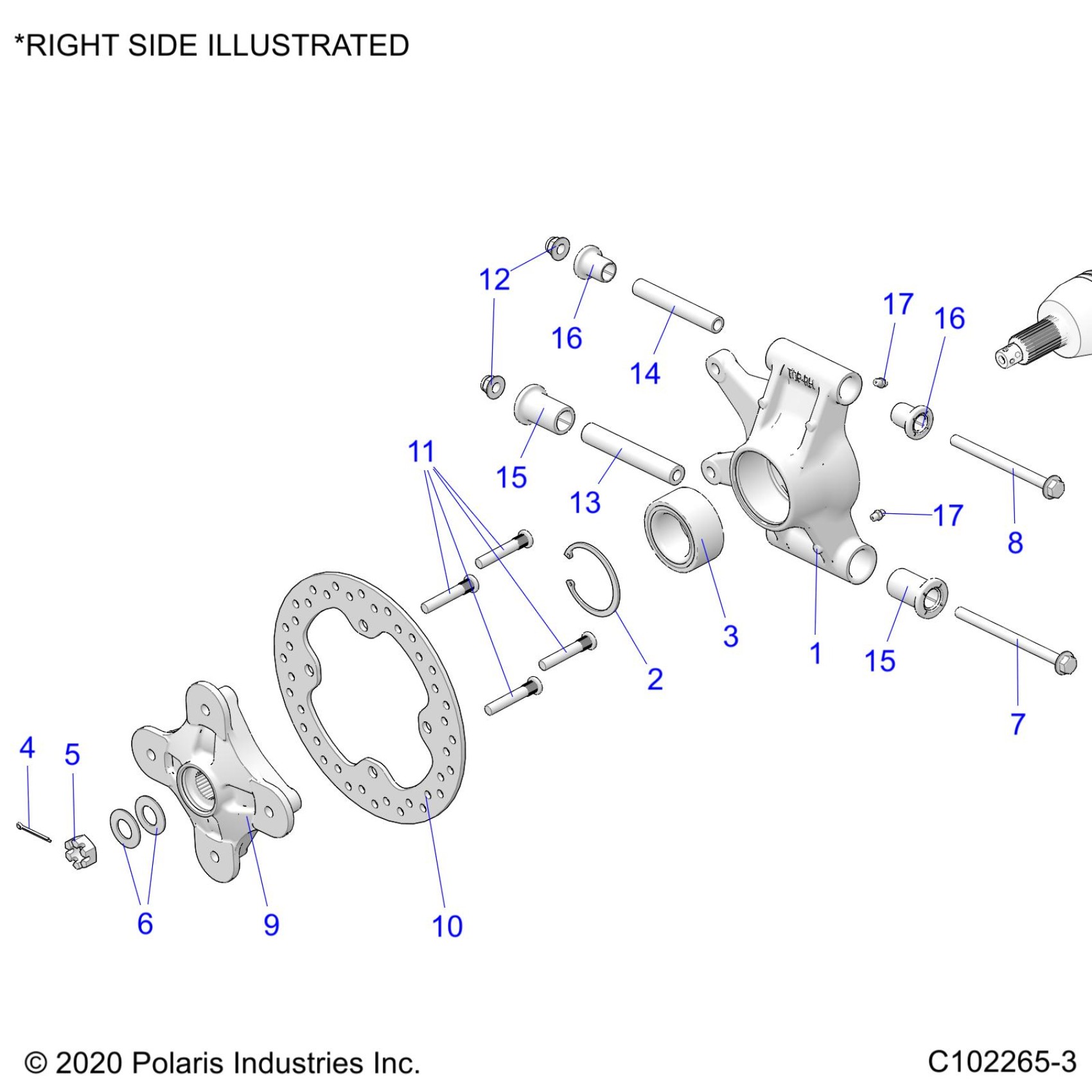

Polaris SCRAMBLER 850 48" (R02) - A25SVA85A4 SUSPENSION, REAR HUBS, CARRIER and BRAKE DISC - A25SVA85A4 (C102265-3) Diagram

#

Description
Price

1

CARRIER-BEARING,MACH,LH

5143607

$71.99

1

CARRIER-BEARING,MACH,RH

5143608

$71.99

2

RING-RETAINING,2.875,INTERNAL

7710440

$10.39

3

BEARING-BALL,SEALED,44X72X33.1

3514699

$39.99

4

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

5

NUT-CASTLE,M18X1.5X13

7547406

$4.79

6

WASHER-CONE.755X1.5X.072-.107P

7555796

$7.99

7

SCR-HXFL-M10X1.5X140 8.8 ZY3

7518467

$5.59

8

BOLT, FLANGE

7518675

$5.59

9

HUB, WHEEL

5136946

$93.08

10

DISC, BRAKE

5250205

$75.99

11

STUD, WHEEL

7521329

$3.99

12

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

13

SHAFT-A-ARM,LCA,0.75" OD

5145086

$35.99

14

SHAFT, PIVOT

5137590

$8.79

15

BUSHING, LOWER CONTROL ARM

5437651

$6.39

15

BUSHING, LOWER CONTROL ARM

5437651

$6.39

16

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

16

BUSHING-STANDARD,ORV

5439874

$2.39

16

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

16

BUSHING-STANDARD,ORV

5439874

$2.39

17

FITTING-LUBRICATION 1/4-28

7080424

$4.79

17

FITTING-LUBRICATION 1/4-28

7080424

$4.79
