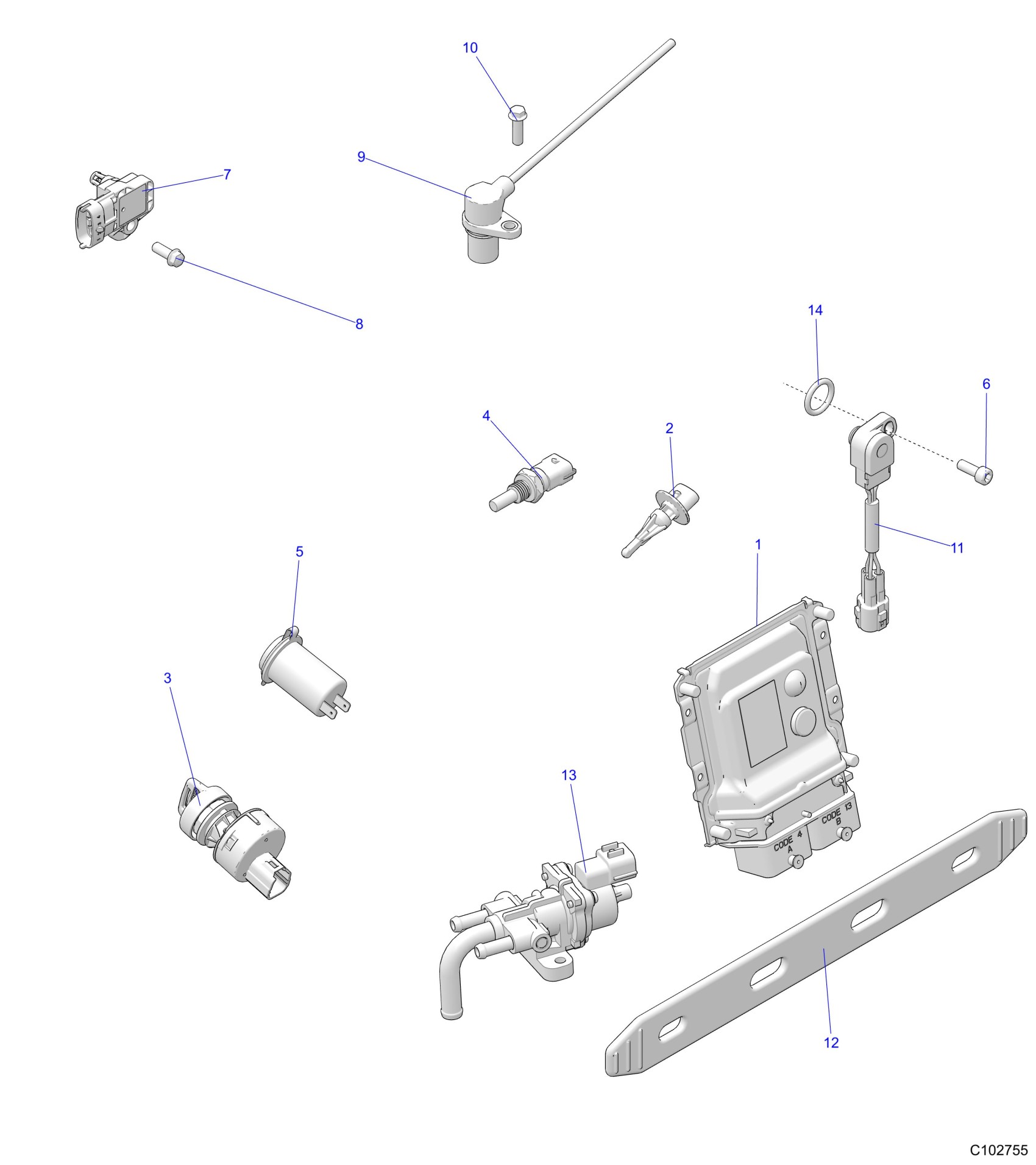

Polaris SCRAMBLER 850 48" (R02) - A25SVA85A4 ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A25SVA85A4 (C102755) Diagram

#

Description

Price

1

ECU, BASE, M17

4012838

$440.69

2

Sensor, Air Temperature

2410687

$143.99

3

SWITCH, KEY, 3 POSITION, SEALED [INCL. SWITCH, COVER, &NUT][TO 7/14/2025]

4015033

Unavailable

3

SWITCH-KEY,3 POSITION,SEALED [INCL. SWITCH, COVER, &NUT][FRM 7/14/2025]

4083544

$51.99

4

SENSOR-THERMISTER

4010644

$87.13

5

Receptacle, Pod Mount, 12 Volt

4010638

$24.27

6

Screw [MAG Side]

3131010

$4.79

7

SENSOR-TMAP DSS3-TF

2411528

$93.08

8

SCR-SENSOR TMAP [USED WITH T-MAP SENSOR]

3131726

Unavailable

9

Sensor, Crank Position

2411589

$79.99

10

SCREW-HXFL-M6X1.0X16 8.8 ZY3 [USED WITH CRANK POSITION SENSOR]

7518548

$1.59

11

SENSOR, THROTTLE POSITION

2412634

$243.99

12

STRAP, ECU

5414193

$27.99

13

VALVE, IAC

4013313

$175.99

14

O-RING [GEAR POSITION]

3131729

$11.99
