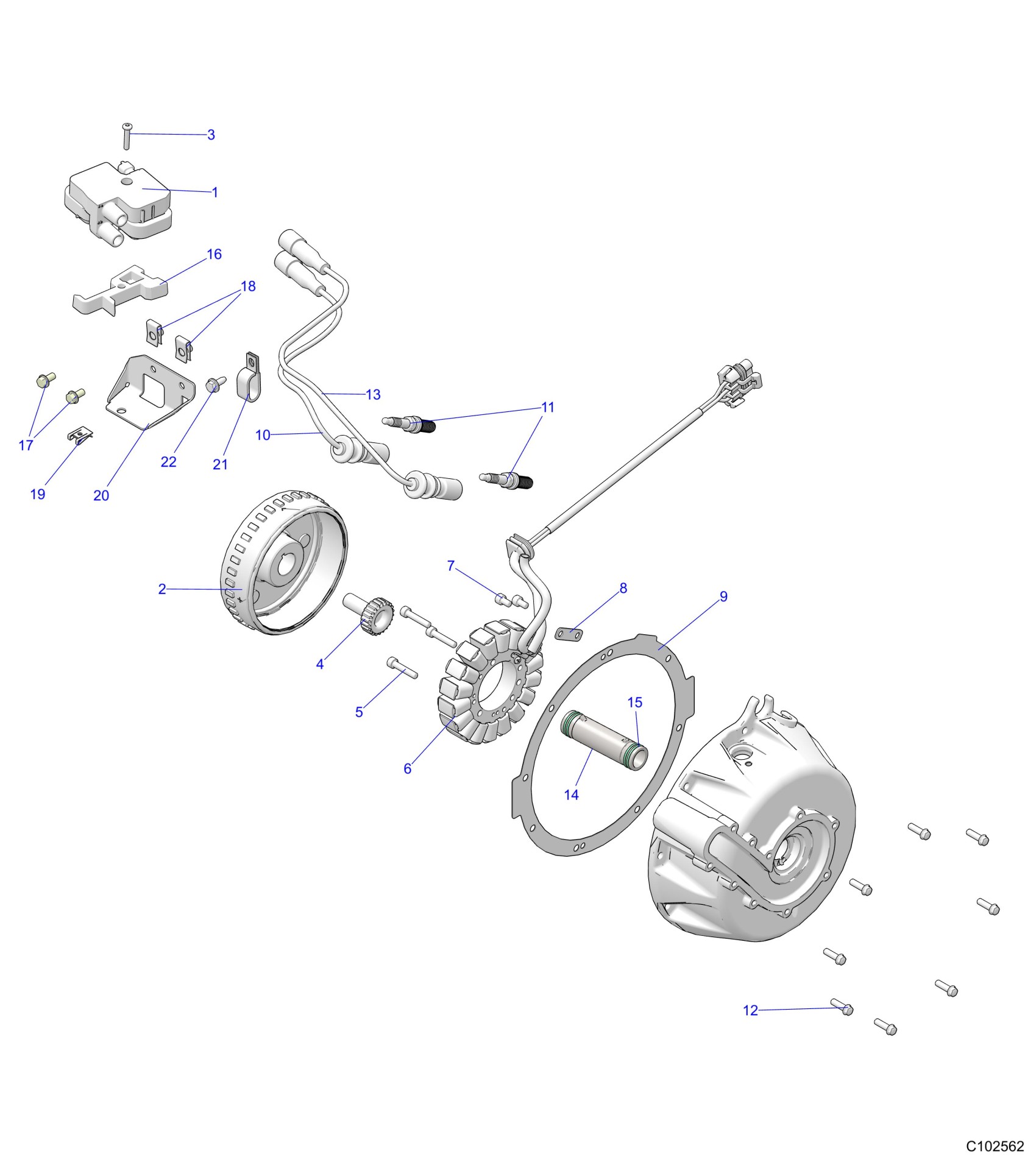

Polaris SCRAMBLER 850 48" (R02) - A25SVA85A4 ELECTRICAL, IGNITION SYSTEM - A25SVA85A4 (C102562) Diagram

Description

Price

COIL-EFI

4010425

Unavailable

FLYWHEEL

4080575

$295.99

SCR-#10X1 1/2 TX PN PLASTITE-B

7517566

$3.99

BOLT, WATER PUMP DRIVE, LH

5140078

$31.99

SCR-M6X1.0X30,HX/SOC/CP-Y/D

7527858

$6.15

STATOR,560W

4080574

$436.79

SCR-M6X1.0X10,SHCS

7527859

$4.79

RETAINER-STATOR WIRE

5271377

$5.59

GASKET, STATOR COVER

5813680

$39.99

WIRE, SPARK PLUG, PTO

4013328

$55.99

SPARKPLUG-12MM REA6MC

3022438

$6.39

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

WIRE, SPARK PLUG, MAG

4014007

$51.99

TUBE, WATER TRANSFER [INCL. O-RINGS]

5453707

$79.99

O-RING,.864X1.00X.07

5412955

$7.19

SPACER-COIL MOUNT

5436577

$3.99

SCR-HXFL-1/4-20X0.5 GR5.1 ZY3

7515133

$3.99

NUT-CHIMNEY 1/4-20,GR-5

7670096

$1.59

NUT, U-TYPE, AB

7670157

$3.99

BRACKET, COIL MOUNT, BLACK

5256478-329

$47.99

CLAMP-DBL TUBE,.562 VNLCOATED

7081364

$1.49

BOLT,M6X1.0X15,HXFLG,TAP/T-OD

7518513

$4.79
