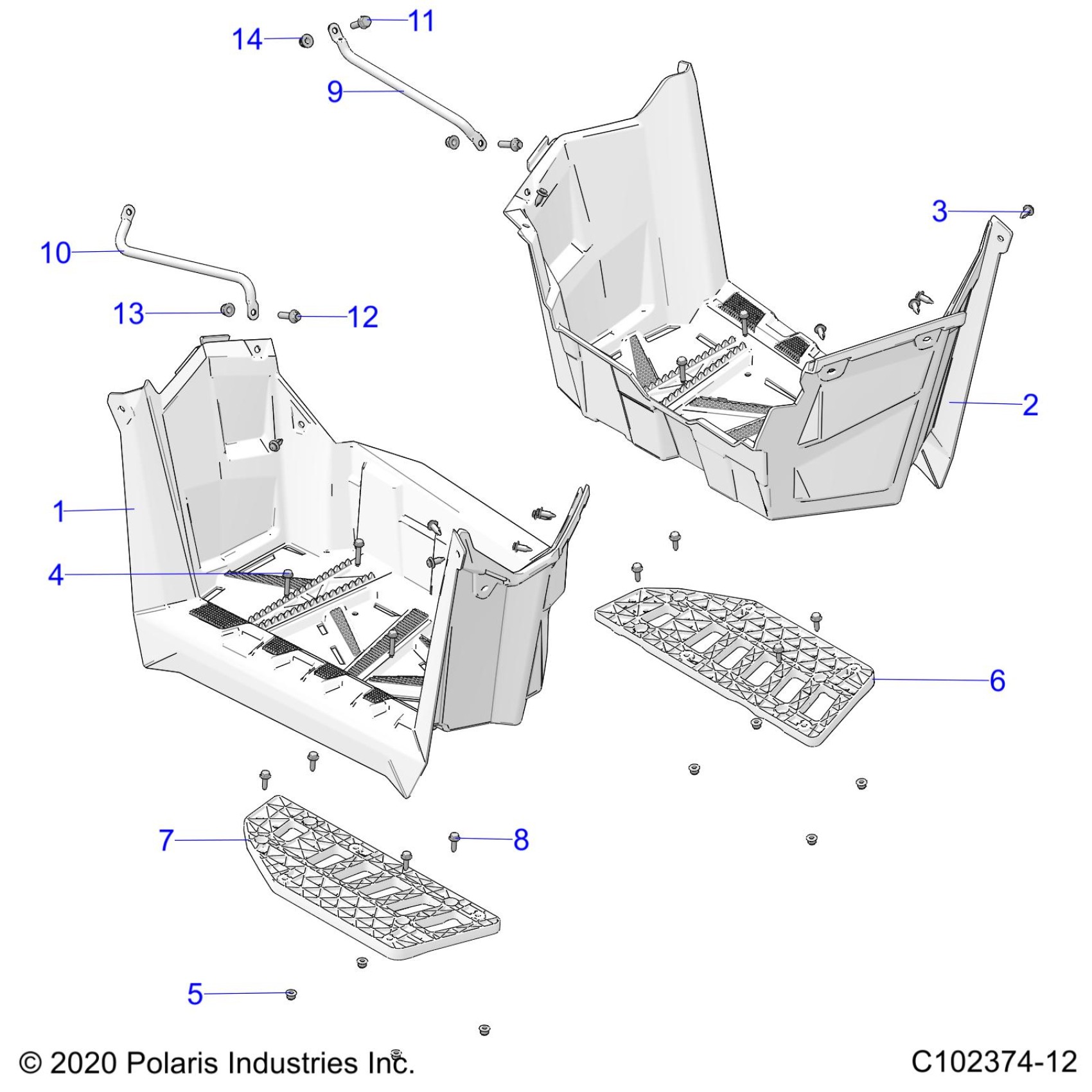

Polaris SCRAMBLER 850 48" (R02) - A21SVA85A3/CA3 BODY, FOOTWELLS - A21SVA85A3/CA3 (C102374-12) Diagram

#

Description

Price

1

FOOTWELL-RH,MOD,BLK

5453692-070

$227.99

2

FOOTWELL, LH, BLACK

5439665-070

$227.99

3

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

4

SCR-HXFL-M6X1.0X30,RIE,DGPNT

7519202

$3.99

5

NUT-M6 FLANGE,NYLOC

7547274

$1.49

6

Support, Footpad, LH

5437600

$39.99

7

SUPPORT, FOOTPAD, RH

5437601

$39.99

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

9

TUBE, FOOTWELL SUPPORT, LH, M. BLACK [TO 9/21/2020]

5337646-067

$189.19

10

TUBE, FOOTWELL SUPPORT, RH, M. BLACK [TO 9/21/2020]

5337647-067

$189.19

11

SCR-M8X1.25X25-HX/FL-Y/D [TO 9/21/2020]

7516734

$3.19

12

SCR-HXFL-M8X1.25X30 10.9 ZPB [TO 9/21/2020]

7517696

$5.59

13

NUT- M8X1.25, FLG, NYLOC-OLIVE D [TO 9/21/2020]

7547332

$3.99

14

NUT-M8X1.25,HXFLG,NYLON INS [TO 9/21/2020]

7547317

Unavailable
