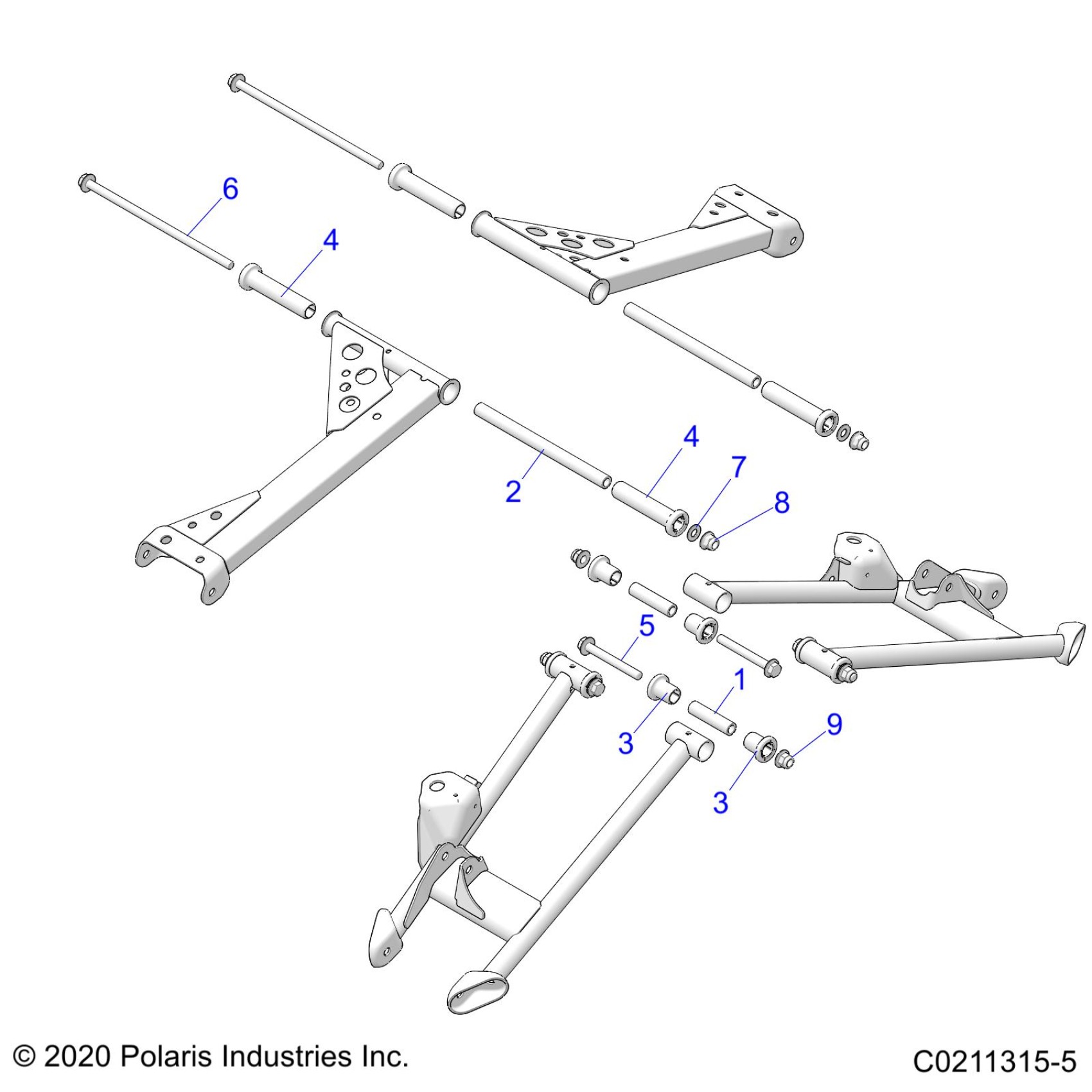

Polaris SCRAMBLER 850 48" R01 - A26SVA85A4 SUSPENSION, REAR CONTROL ARM MOUNTING - A26SVA85A4 (C0211315-5) Diagram

#

Description

Price

1

SHAFT, A-ARM, 63.5MM

5137346

$14.39

2

SHAFT-PIVOT,210.27MM,ZINC YEL

5137594

$8.79

3

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

3

BUSHING-STANDARD,ORV

5439874

$2.39

3

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

3

BUSHING-STANDARD,ORV

5439874

$2.39

4

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

4

BUSHING-A-ARM,LONG,102.36MM

5436973

$5.19

4

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

4

BUSHING-A-ARM,LONG,102.36MM

5436973

$5.19

5

SCR-HXFL-M10X1.5X85 8.8 ZY3

7518466

$4.79

6

SCR-HXFL-M10X1.25X235 10.9 ZOD

7519086

$27.99

7

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

8

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

9

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39
