Description

Price

1

COVER, AIRBOX

5438983

$39.99

2

STRAP-AIRBOX TOP

5433150

$24.27

3

O-RING

5414246

$1.59

4

SEAL, AIRBOX COVER

5813359

$6.79

5

FILTER-AIR INTAKE,HD

7083107

$27.99

5

FILTER-HD AIR INTAKE, 208MM [HD OPTION]

7083114

$47.99

6

Filter, Pre-Cleaner, Sleeve

5811633

$11.99

7

ASM-AIR INTAKE,BOX W/RUNNER

1244936

Unavailable

8

HOSE, BREATHER, TWIN

5414567

$43.99

9

HOOD, AIR INTAKE

5414252

$39.99

10

PLUG, AIR BOX

5451429

$14.39

11

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

12

FOAM-CAB,SGUARD,254X38.1X19.05

5813409

$6.39

13

CLAMP-HOSE,SPRING .81

7081026

$7.99

14

WASHER-FL .281X.750X.062-Y

7555859

$1.49

15

SCR-SHFL-M6X1.0X25 10.9 ZNC PC

7528343

$2.39

16

SPRINGBAND-CLAMP 29/12,BLK

7080842

$7.19

17

Sensor, Air Temperature

2410687

$143.99

18

GROMMET, SUPPORT, TRUNK

5413423

$3.19

19

GROMMET, AIR TEMPERATURE SENSOR

5436346

$4.79

20

STRAP, ECU

5414193

$27.99

21

Clip, Plastic, Dart, Nylon

4010589

$2.39

22

VALVE, IAC

4013313

$175.99

23

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

24

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

25

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

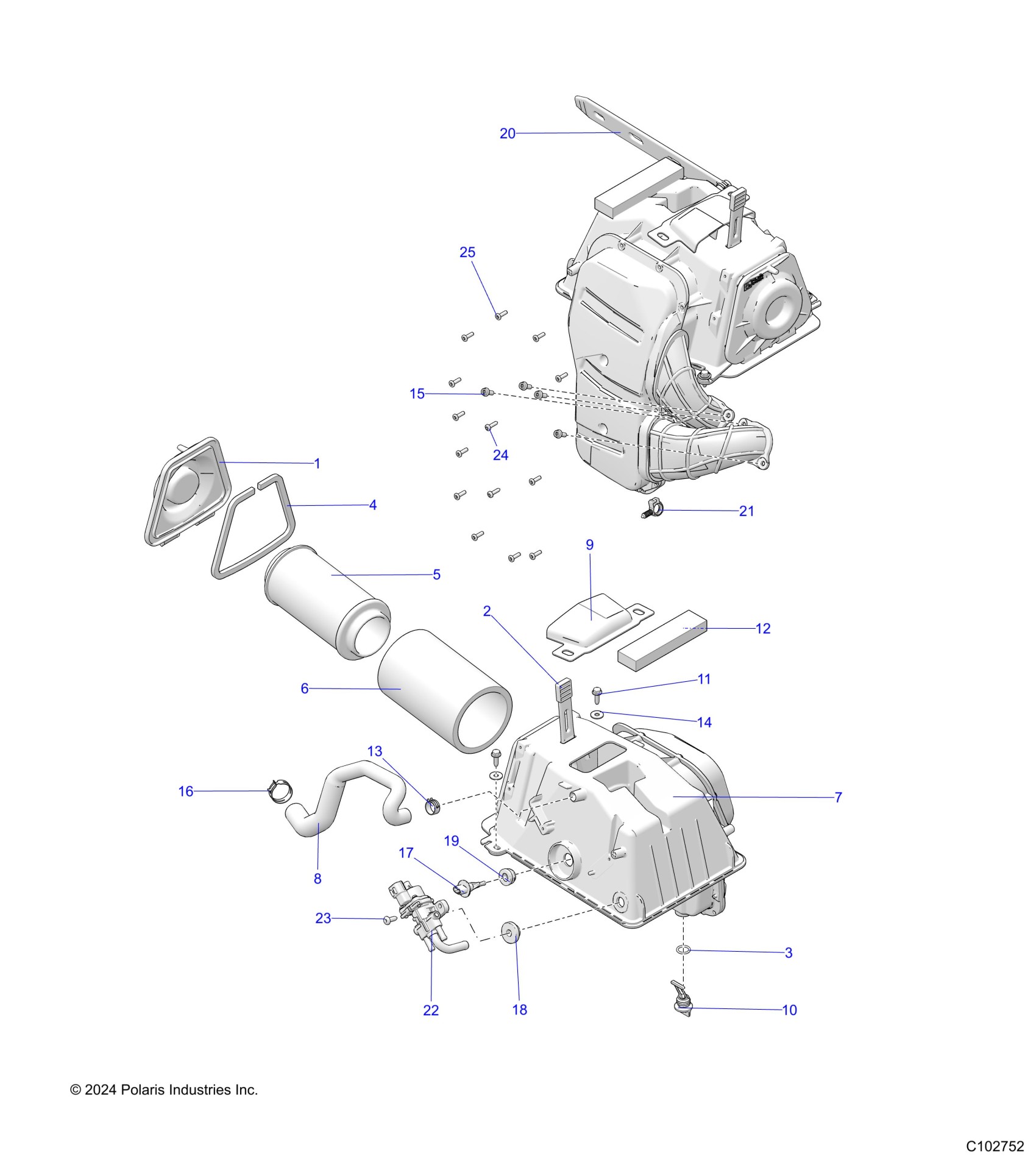

Polaris SCRAMBLER 850 48" R01 - A26SVA85A4 ENGINE, AIR INTAKE - A26SVA85A4 (C102752) Diagram

COVER, AIRBOX

STRAP-AIRBOX TOP

O-RING

SEAL, AIRBOX COVER

FILTER-AIR INTAKE,HD

FILTER-HD AIR INTAKE, 208MM [HD OPTION]

Filter, Pre-Cleaner, Sleeve

ASM-AIR INTAKE,BOX W/RUNNER

HOSE, BREATHER, TWIN

HOOD, AIR INTAKE

PLUG, AIR BOX

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

FOAM-CAB,SGUARD,254X38.1X19.05

CLAMP-HOSE,SPRING .81

WASHER-FL .281X.750X.062-Y

SCR-SHFL-M6X1.0X25 10.9 ZNC PC

SPRINGBAND-CLAMP 29/12,BLK

Sensor, Air Temperature

GROMMET, SUPPORT, TRUNK

GROMMET, AIR TEMPERATURE SENSOR

STRAP, ECU

Clip, Plastic, Dart, Nylon

VALVE, IAC

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

SCREW-10X5/8-HI/LO,PN-T25,TRX-M
