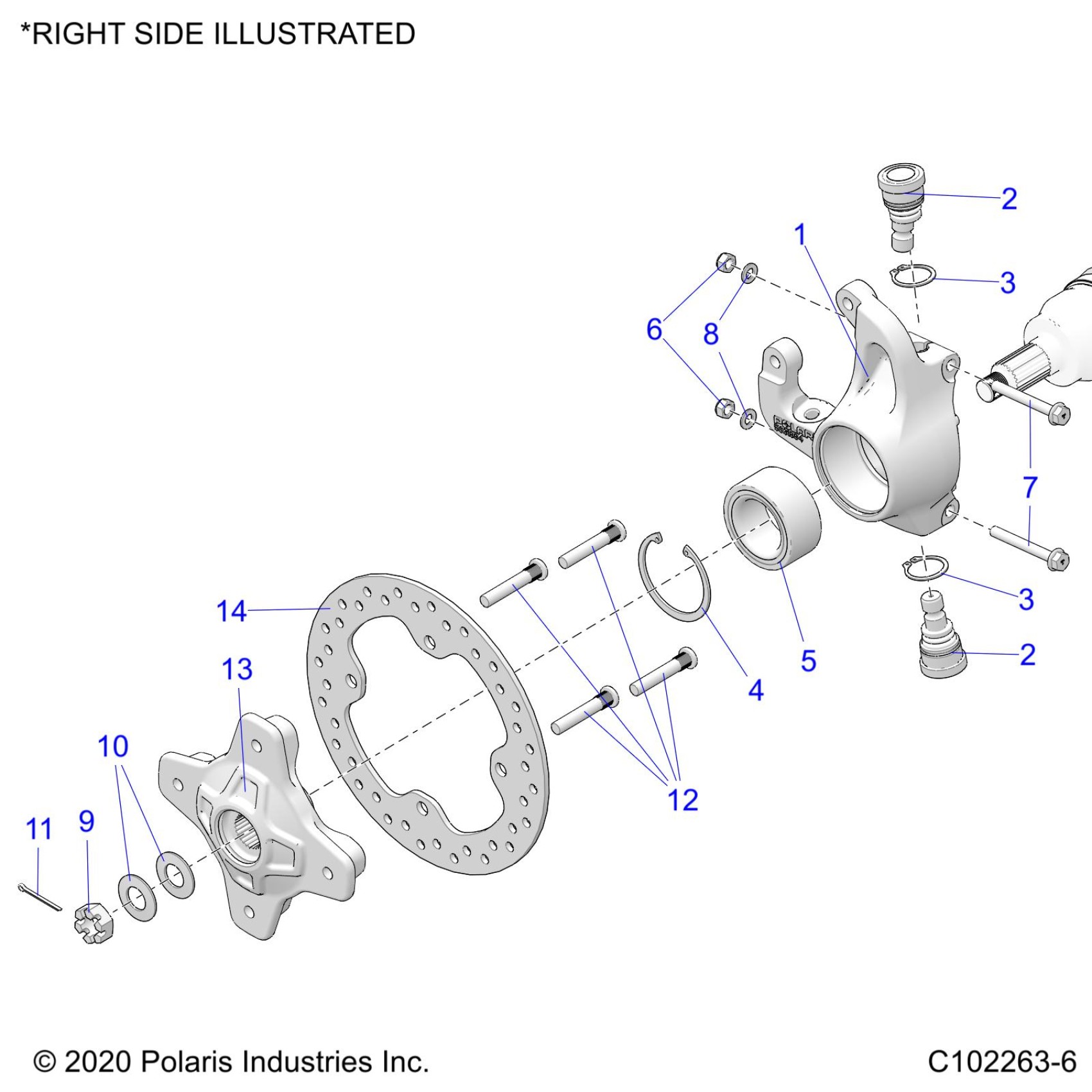

Polaris SCRAMBLER 850 48" (R01) - A23SVA85A3 SUSPENSION, FRONT HUB, KNUCKLE and BRAKE DISC - A23SVA85A3 (C102263-6) Diagram

#

Description
Price

1

KNUCKLE-STEERING,MACH,LH

5143613

$135.99

1

KNUCKLE-STEERING,MACH,RH

5143614

$135.99

2

JOINT, BALL, LONG STUD

7061220

$75.99

2

JOINT, BALL, LONG STUD

7061220

$75.99

3

RING-RETAINER,EXTERNAL,1.188

7710533

$2.39

3

RING-RETAINER,EXTERNAL,1.188

7710533

$2.39

4

RING-RETAINING,2.875,INTERNAL

7710440

$10.39

5

BEARING-BALL,SEALED,44X72X33.1

3514699

$39.99

6

NUT-M8X1.25C10,HX,NYL,DIN982,Z

7547405

$1.49

7

SCR-M8X1.25X65-HX/FL-Y,CL 10.9

7519212

$4.79

8

WASHER-0.62X0.330 X .060 FL-Y

7556557

$1.49

9

NUT-CASTLE,M18X1.5X13

7547406

$4.79

10

WASHER-CONE.755X1.5X.072-.107P

7555796

$7.99

11

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

12

STUD, WHEEL

7521329

$3.99

13

HUB-WHEEL,MACH

5144373

Unavailable

14

DISC, BRAKE

5250205

$75.99
